pHAT Module Series
pHAT-RV Technical Description
pHAT-RV Technical Description
Page 11 of 27

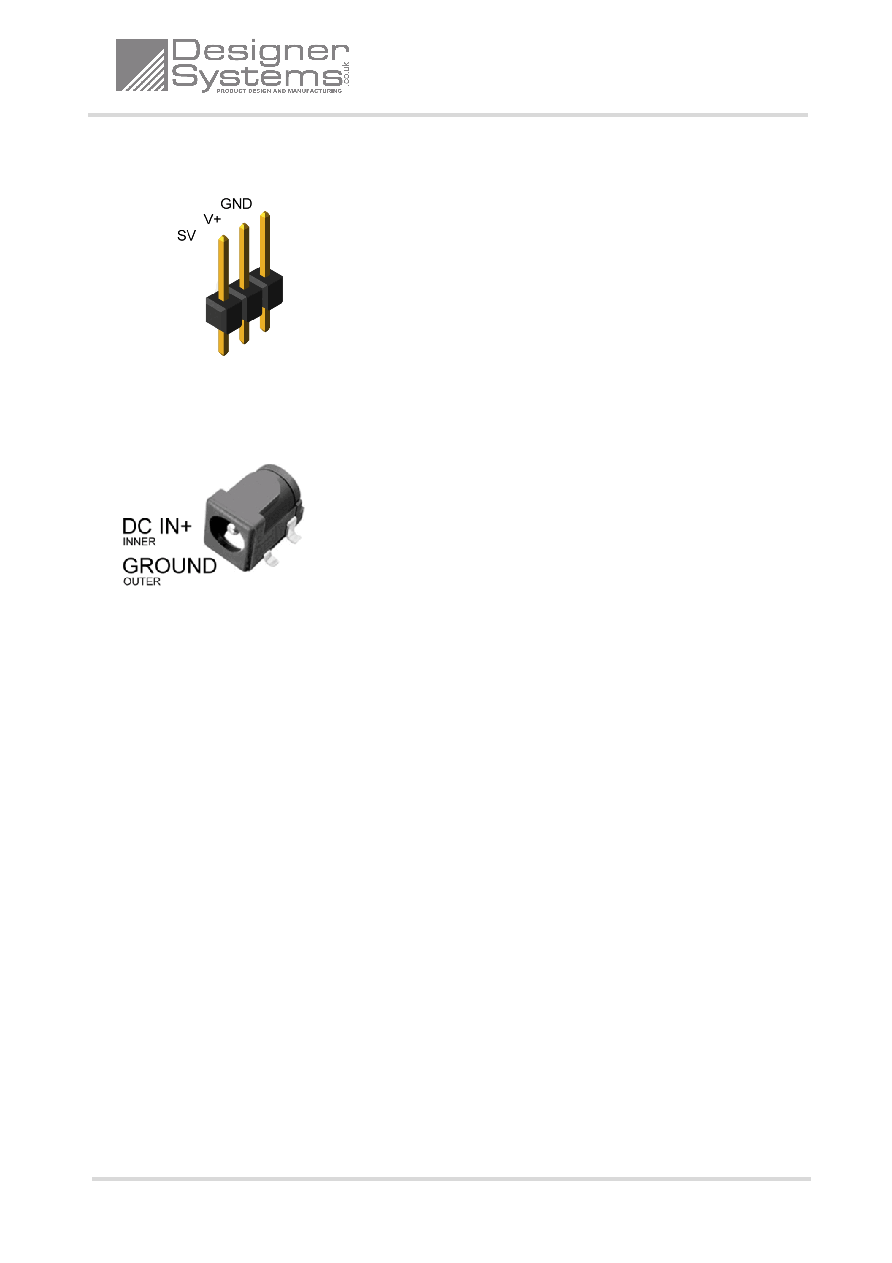

3.5.4 Servo Header
The 4 x Servo motor headers are 3way 2.54mm pitch, pinout as follows:
3.5.5 Charger Input Socket
The Charger input is a 2.5mm centre pin coaxial power socket, pinout as follows:
