SSM2167
Rev. C | Page 6 of 12
TIME (10µs/DIV)
TA = 25°C
CSYS = 10µF
SYSTEM GAIN = 19dB
RLOAD = 100kΩ
COMPRESSION RATIO 1:1

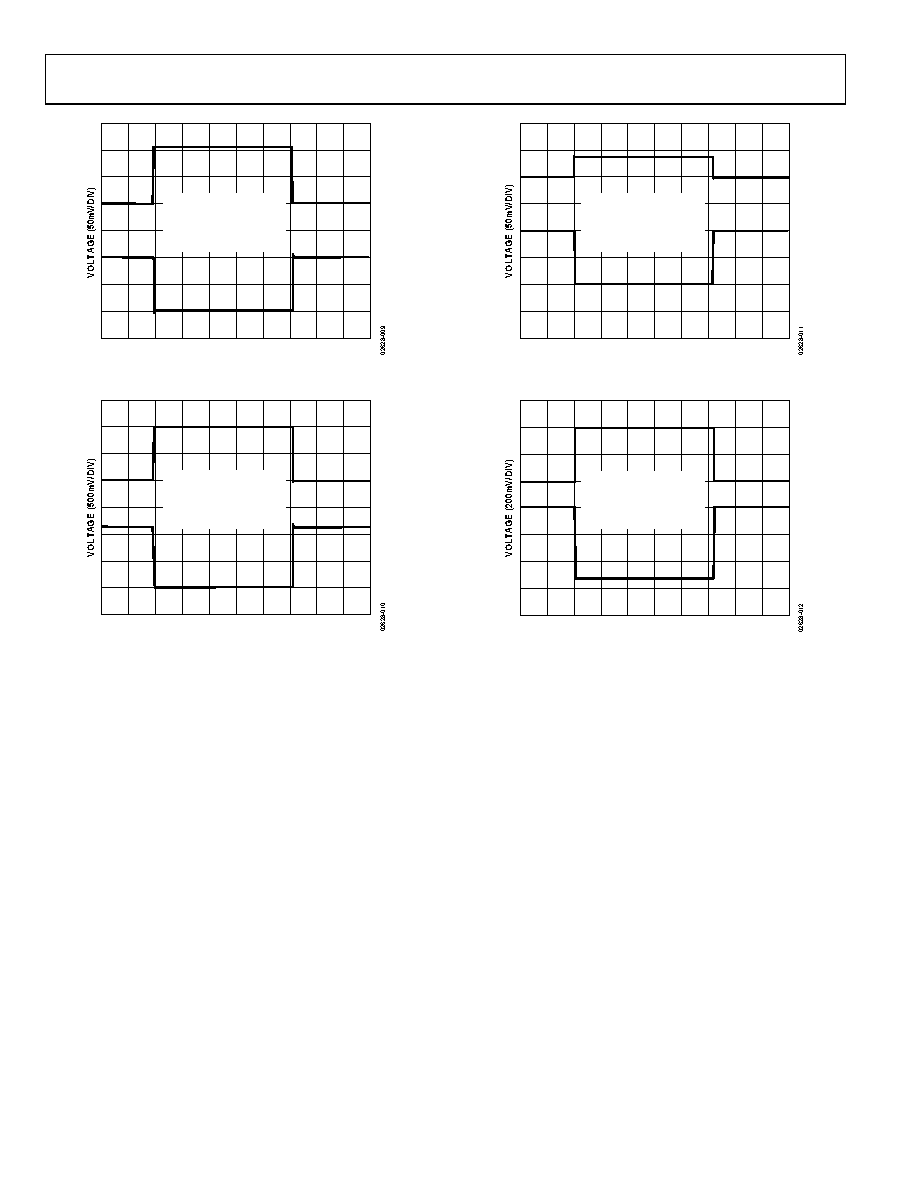

Figure 9. Small Signal Transient Response
TIME (10µs/DIV)
TA = 25°C
CSYS = 10µF
SYSTEM GAIN = 8.6dB
RLOAD = 100kΩ
COMPRESSION RATIO 1:1
Figure 10. Large Signal Transient Response
TIME (10µs/DIV)
TA = 25°C
CSYS = 10µF
SYSTEM GAIN = 8dB
RLOAD = 100kΩ
COMPRESSION RATIO 1:1
Figure 11. Small Signal Transient Response
TIME (10µs/DIV)
TA = 25°C
CSYS = 10µF
SYSTEM GAIN = 2.6dB
RLOAD = 100kΩ
COMPRESSION RATIO 1:1
Figure 12. Large Signal Transient Response
