ADL5519

Rev. 0 | Page 39 of 40

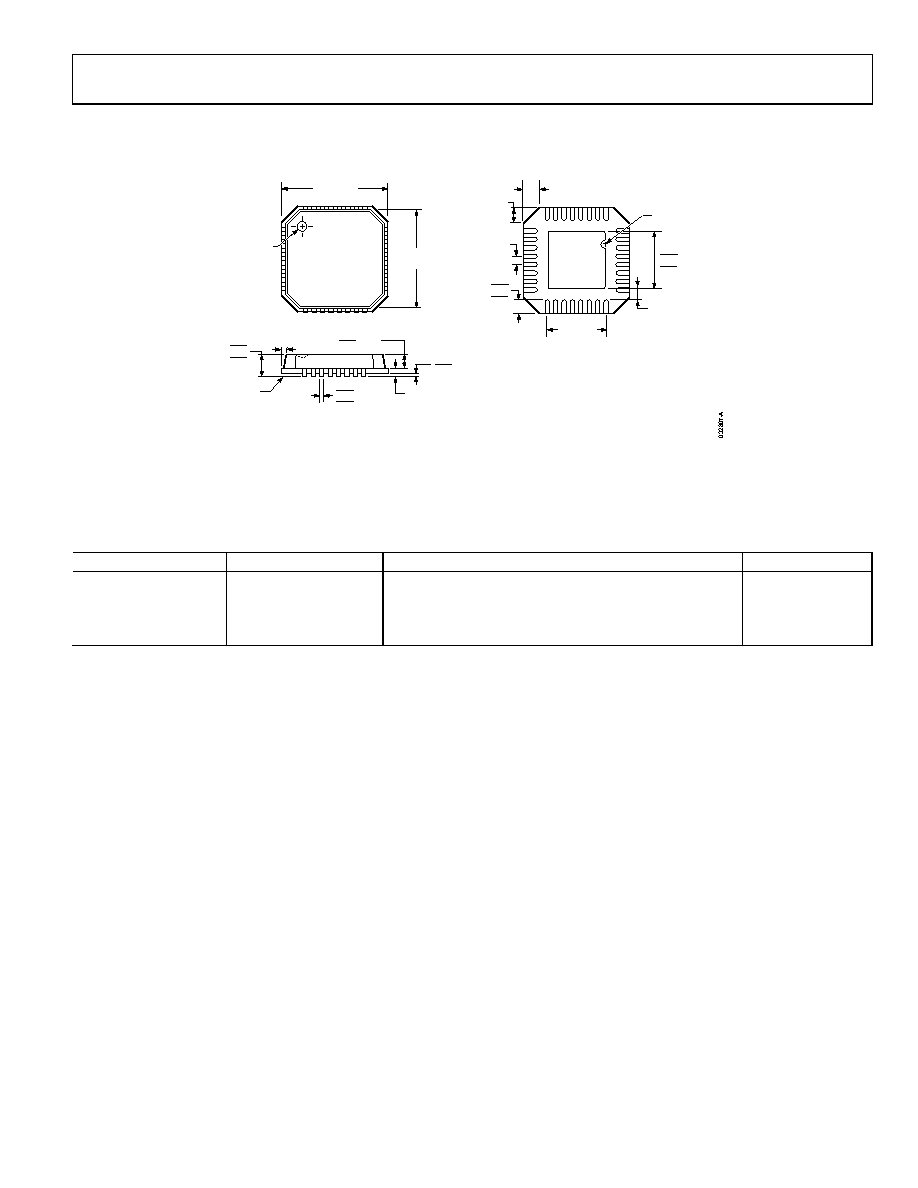

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2

2.85

2.70 SQ

2.55

TOP

VIEW

COPLANARITY

0.08

3.50 REF

0.50

BSC

PIN 1

INDICATOR

0.60 MAX

0.20 MIN

EXPOSED

PAD

(BOT TOM VIEW)

PIN 1

INDICATOR

0.30

0.25

0.18

0.20 REF

12° MAX

0.80 MAX

0.65 TYP

1.00

0.85

0.80

0.05 MAX

0.02 NOM

SEATING

PLANE

0.50

0.40

0.30

5.00

BSC SQ

4.75

BSC SQ

Figure 77. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

5 mm × 5 mm Body, Very Thin Quad Lead

(CP-32-8)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

ADL5519ACPZ-R71

−40°C to +125°C

32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

CP-32-8

ADL5519ACPZ-R21

−40°C to +125°C

32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

CP-32-8

ADL5519ACPZ-WP1, 2

−40°C to +125°C

32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

CP-32-8

ADL5519-EVALZ1

Evaluation Board

1 Z = RoHS Compliant Part.

2 WP = waffle pack.
