■SF10-M1JN
■SF10-M2JN
■SF10-M1KT□
■SF10-M2KT□
※For No Buzzer Model,
do not require wiring.
■Flash Pattern List
※Half : The front of the product light up.

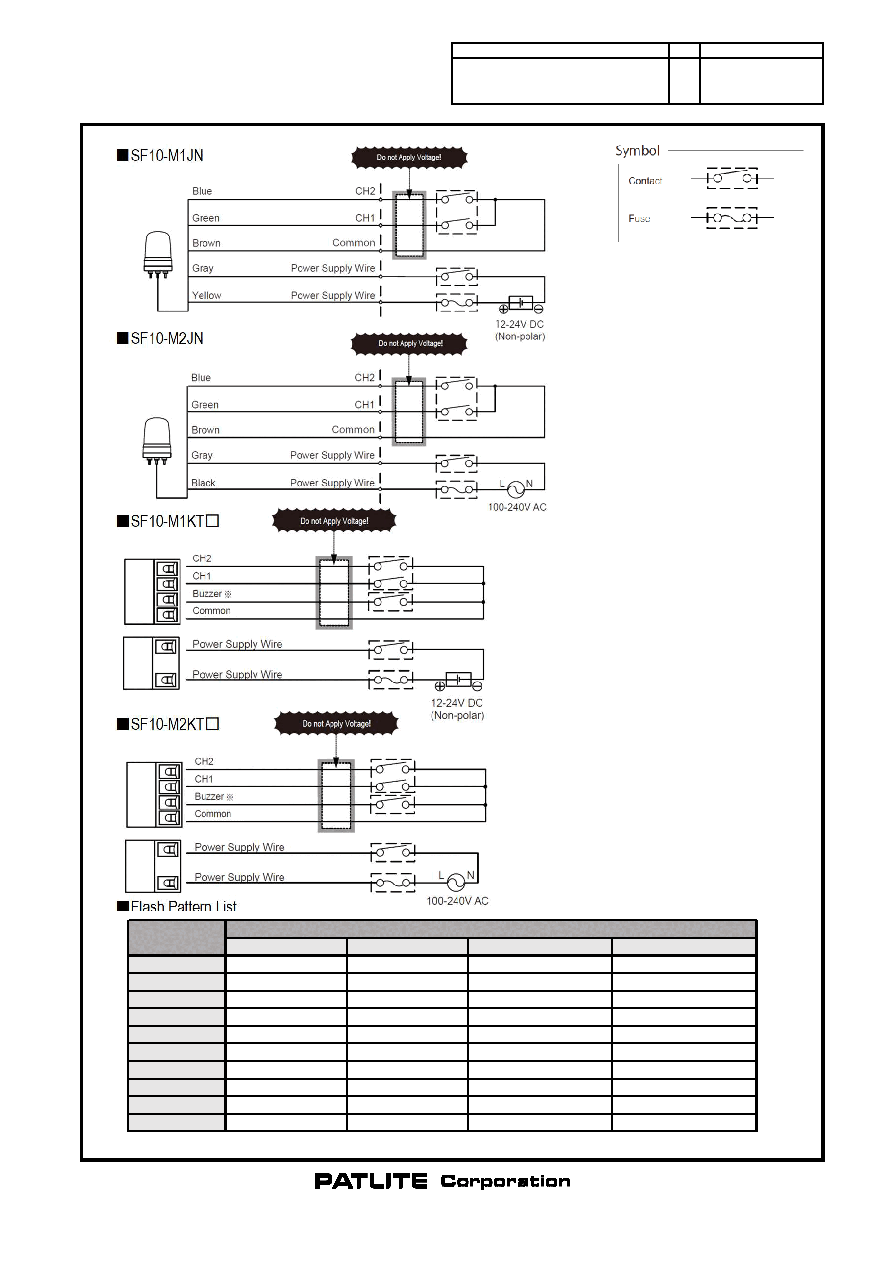

[5.Wiring Diagram]
Drawing No.
Rev.
Page
A
CH1 OFF/CH2 OFF
CH1 ON/CH2 OFF
CH1 OFF/CH2 ON
CH1 ON/CH2 ON
Group 0
Turn off
Rotation(120R.P.M.)
Triple Flash
Dim. Rotation(120R.P.M.)
Group 1
Turn off
Rotation(180R.P.M.)
Triple Flash
Dim. Rotation(180R.P.M.)
Group 2
Turn off
Triple Flash
Pulse
Dim. Triple Flash
Group 3
Turn off
Rotation(60R.P.M.)
Rotation(120R.P.M.)
Rotation(180R.P.M.)
Group 4
Turn off
Single Flash
Double Flash
Triple Flash
Group 5
Triple Flash
Dim. Triple Flash
Half Triple Flash
Dim. Half Triple Flash
Group 6
Pulse
Dim. Pulse
Half Pulse
Dim. Half Pulse
Group 7
Rotation(60R.P.M.)
Dim. Rotation(60R.P.M.)
Half Rotation(60R.P.M.)
Dim. Half Rotation(60R.P.M.)
Group 8
Rotation(120R.P.M.)
Dim. Rotation(120R.P.M.)
Half Rotation(120R.P.M.)
Dim. Half Rotation(120R.P.M.)
Group 9
Rotation(180R.P.M.)
Dim. Rotation(180R.P.M.)
Half Rotation(180R.P.M.)
Dim. Half Rotation(180R.P.M.)
Wiring
【CH1/CH2】
Rotary SW
4 / 4
SF10-M1JN-W18



Html Pages

1 2 3 4
