Copyright © 2014 Future Technology Devices International Limited
42
FT201X USB I2C SLAVE IC Datasheet
Version 1.4
Document No.: FT_000627 Clearance No.: FTDI# 264
11.3 QFN-16 Package Mechanical Dimensions

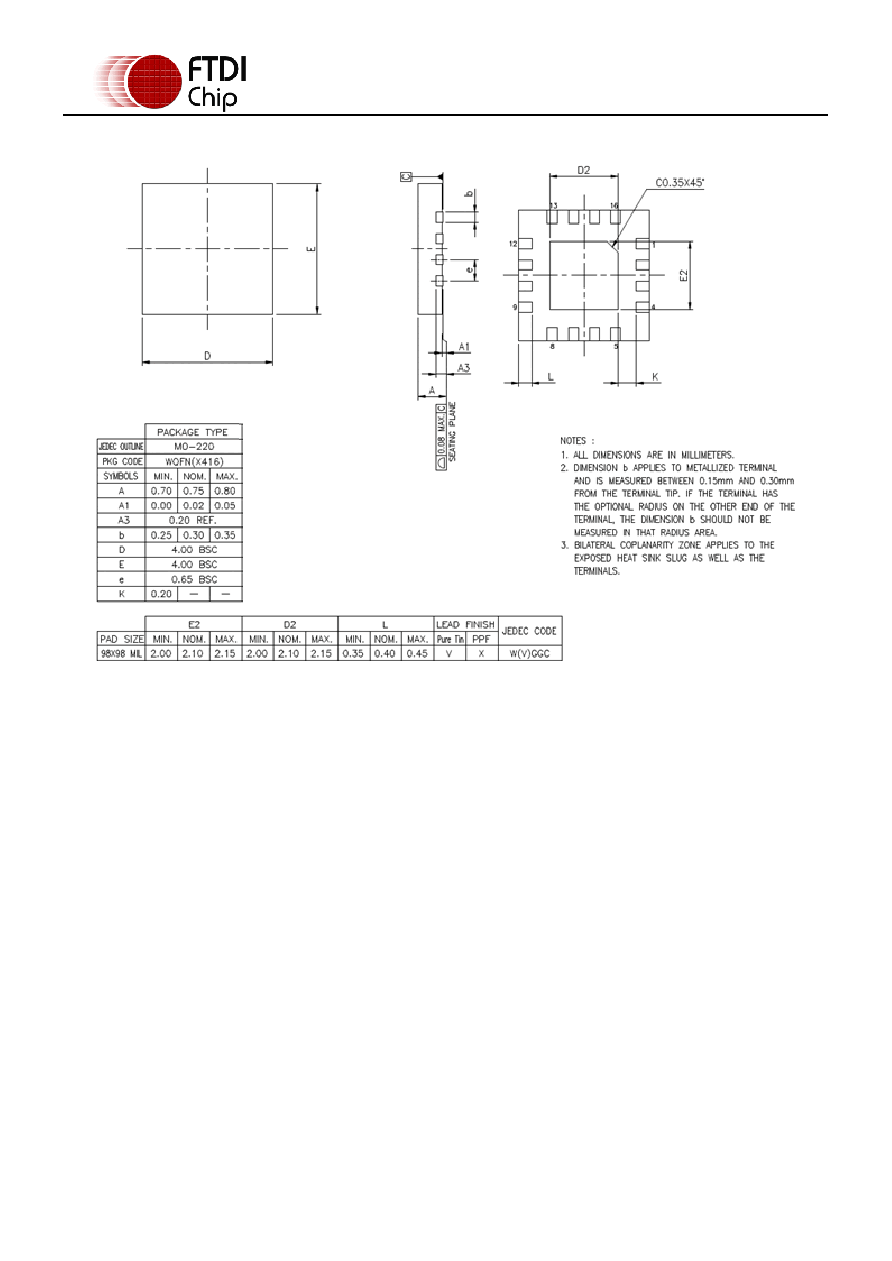

Figure 11.3 QFN-16 Package Dimensions
The FT201XQ is supplied in a RoHS compliant leadless QFN-16 package. The package is lead (Pb) free,
and uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.
This package is nominally 4.00mm x 4.00mm. The solder pads are on a 0.65mm pitch. The above
mechanical drawing shows the QFN-16 package. All dimensions in table are in millimetres.
The centre pad on the base of the FT201XQ is internally connected to GND. Do not place signal tracks on
the PCB top layer under this area. Connect to GND.
