Data Sheet
ADMV1455
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 21 of 141

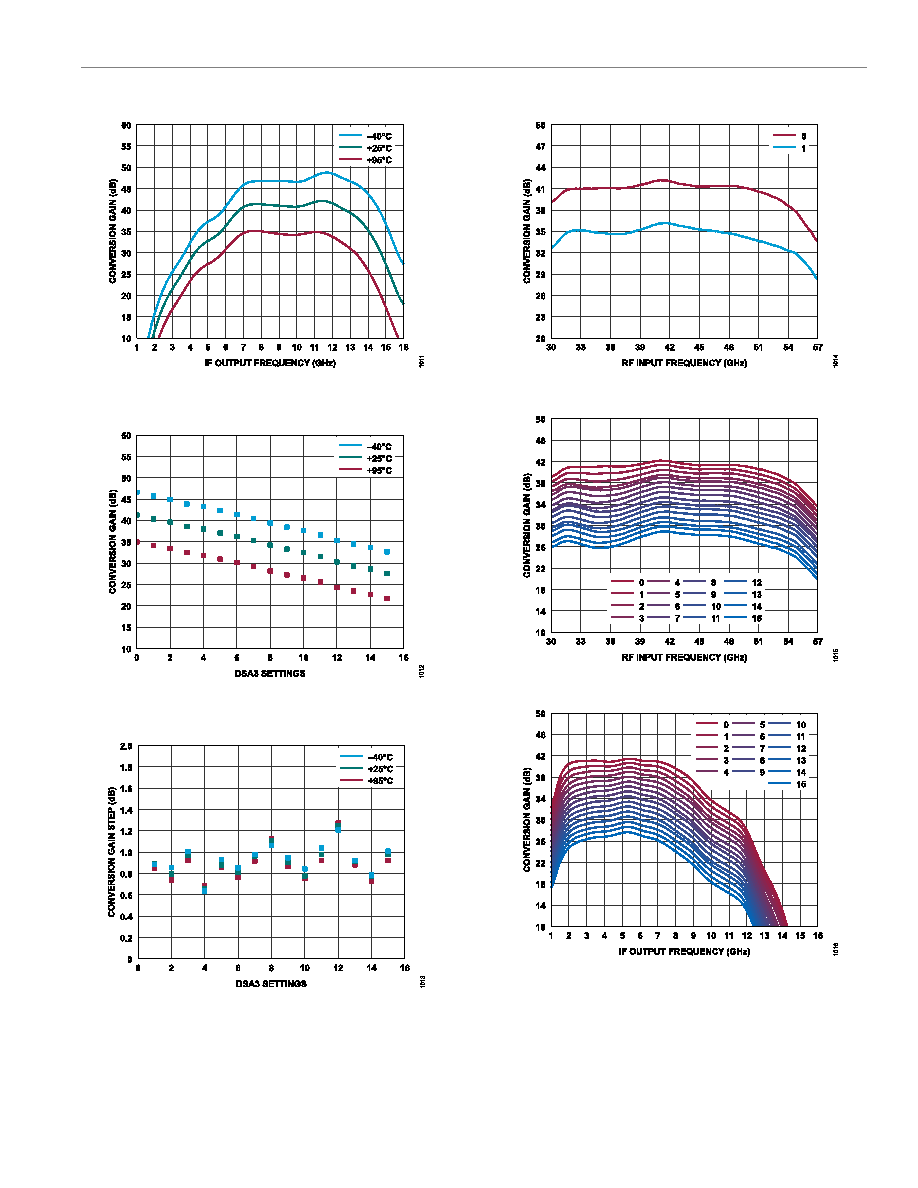

Figure 14. Conversion Gain vs. IF Output Frequency at Various
Temperatures, 10GHz IF Filter
Figure 15. Conversion Gain vs. DSA3 Settings at Various Temperatures,
Single fRF = 49GHz
Figure 16. Conversion Gain Step vs. DSA3 Settings at Various Temperatures,
Single fRF = 49GHz
Figure 17. Conversion Gain vs. RF Input Frequency at Various DSA2 Settings
Figure 18. Conversion Gain vs. RF Input Frequency at Various DSA3 Settings
Figure 19. Conversion Gain vs. IF Output Frequency at Various DSA4
Settings, 4GHz IF Filter
