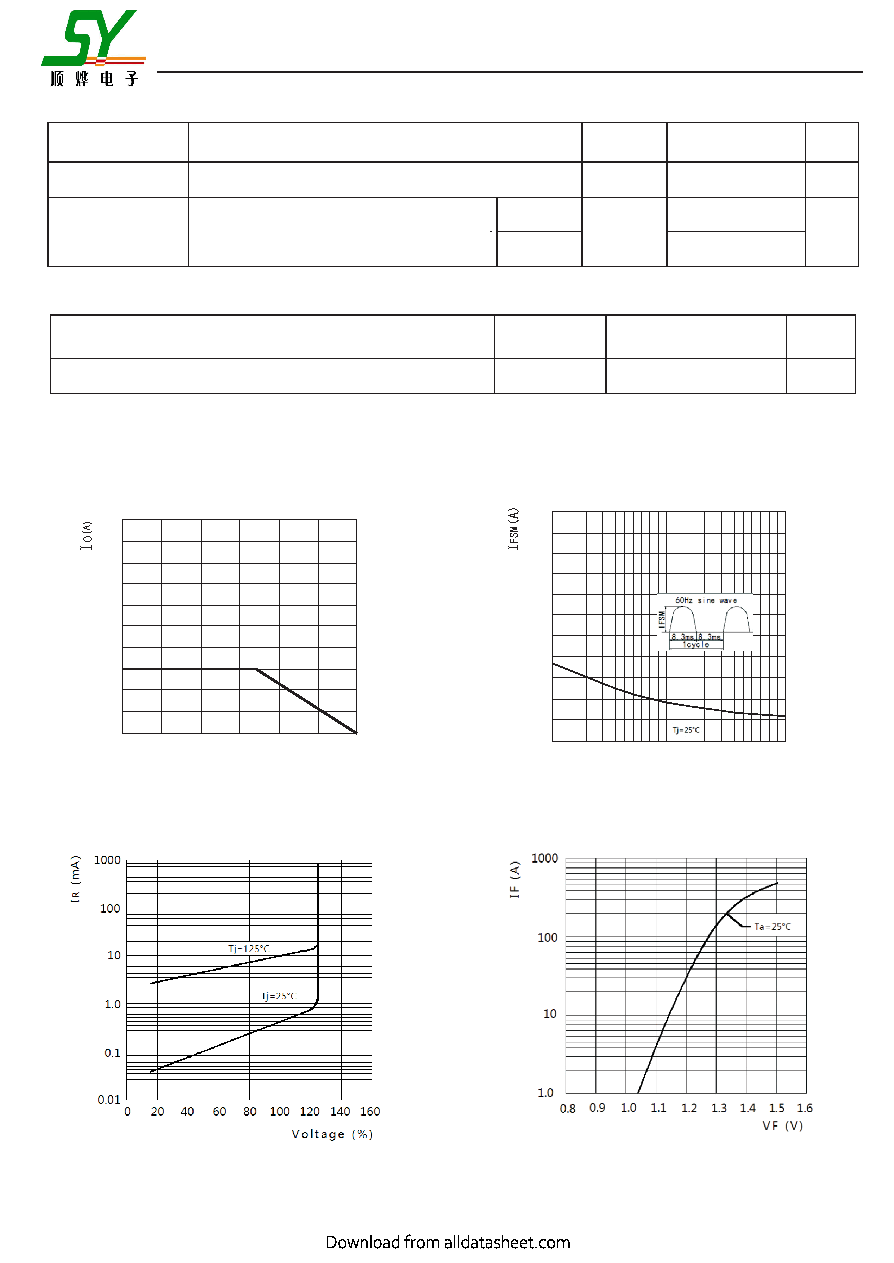

 2 / 3 page
background image
QL60A08 thru QL60A18
Time(Cycless)
1
2
5
10
20
50
100
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
■电性特性
Electrical Characteristics @ Ta = 25℃ unless otherwise noted
参数
PARAMETER
条件
CONDITIONS
符
号
SYMBOL
额定值
RATED VALUE
单位
UNIT
正向峰
值电压
Peak Forward Voltage
IF = 60 A
V F
1. 2
V
反向峰
值电流
Peak Reverse Current
VR=VRRM , 脉冲
测试, 单个二极管的额定值
VR=VRRM , Pulse measurementRating of per diode
Tj=25℃
IR
0.5
mA
Tj=125℃
10
■热特性 Thermal Characteristics @ Ta = 25℃ unless otherwise noted
参数
PARAMETER
符
号
SYMBOL
额定值
RATED VALUE
单位
UNIT
结到管壳的热阻 ,有散热片
Junction to casethermalresistance, with heatsink
RθJC
1.0
℃/W
■特性曲线 Characteristic Curve
FIG 1 .Derating Curve For Output Rectified Current
FIG2 .Maximum Non-Repetitive Peak ForwardSurge
CurrentPer Bridge Element
图 2.
最大正向不重
复峰值浪涌电流
FIG3.Typical Reverse Characteristics Per Bridge Element
图 3.
典型反向特性
图 1 .
电流降额曲线
FIG4.Typic al Forward Characteristics Per Bridge Element
图 4.
典型正向特性
0
20
40
60
80
100
120
140
0
Tc(℃)
160
180
200
25
50
75
100
125
150
