VERY LOW DROPOUT VOLTAGE (0.2V TYP)

s

VERY LOW QUIESCENT CURRENT (TYP.

50 µA IN OFF MODE, 0.5 mA IN ON MODE,

NO LOAD)

s

OUTPUT CURRENT UP TO 100 mA

s

OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 3;

3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8V

s

INTERNAL CURRENT AND THERMAL LIMIT

s

ONLY 2.2 µF FOR STABILITY

s

AVAILABLE IN ± 1% (A) OR ± 2% (C)

SELECTION AT 25°C

s

SUPPLY VOLTAGE REJECTION: 80db (TYP.)

s

TEMPERATURE RANGE: -40 TO 125 °C

DESCRIPTION

The LE00 regulator series are very Low Drop

regulators available in SO-8 and TO-92 packages

and in a wide range of output voltages.

The very Low Drop voltage (0.2V) and the very

low quiescent current make them particularly

suitable for Low Noise Low Power applications

and specially in battery powered systems.

They are pin to pin compatible with the older

L78L00

series.

Furthermore

in

the

8

configuration (SO-8) they employ a Shutdown

Logic Control (pin 5, TTL compatible). This means

that when the device is used as a local regulator,

it’s possible to put in stand by a part of the board

even

more

decreasing

the

total

power

consumption. In the three terminal configuration

(TO-92) the device is even in ON STATE,

maintaining the same electrical performances. It

needs only 2.2µF capacitor for stability allowing

room and cost saving effect.

LE00AB/C

SERIES

VERY LOW DROP

VOLTAGE REGULATORS WITH INHIBIT

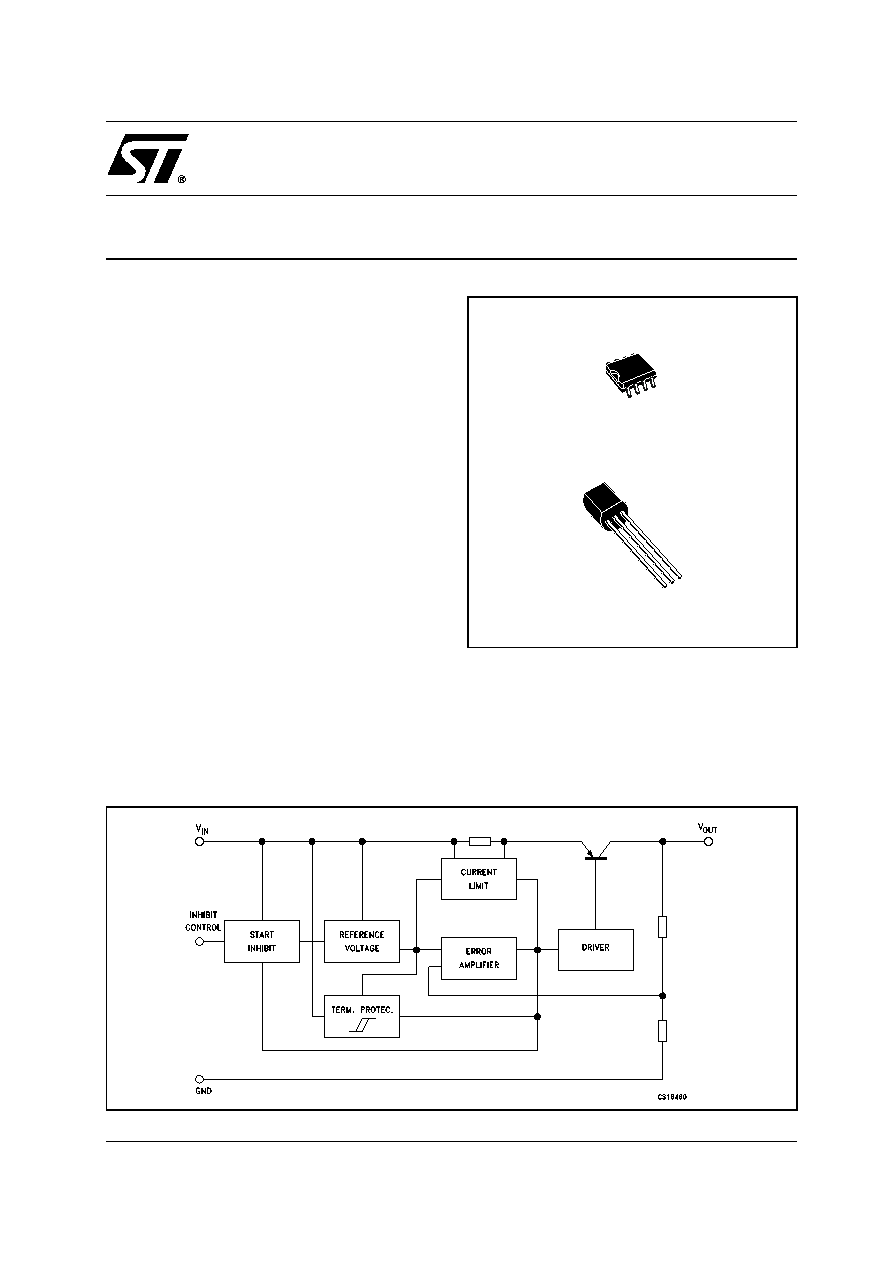

SCHEMATIC DIAGRAM

SO-8

TO-92

Rev. 6
