Hi-Speed USB Transceiver with 1.8V-3.3V ULPI Interface - 24MHz Reference Clock
SMSC USB3315
7
Revision 1.3 (11-02-07)
PRODUCT PREVIEW
Application Diagram

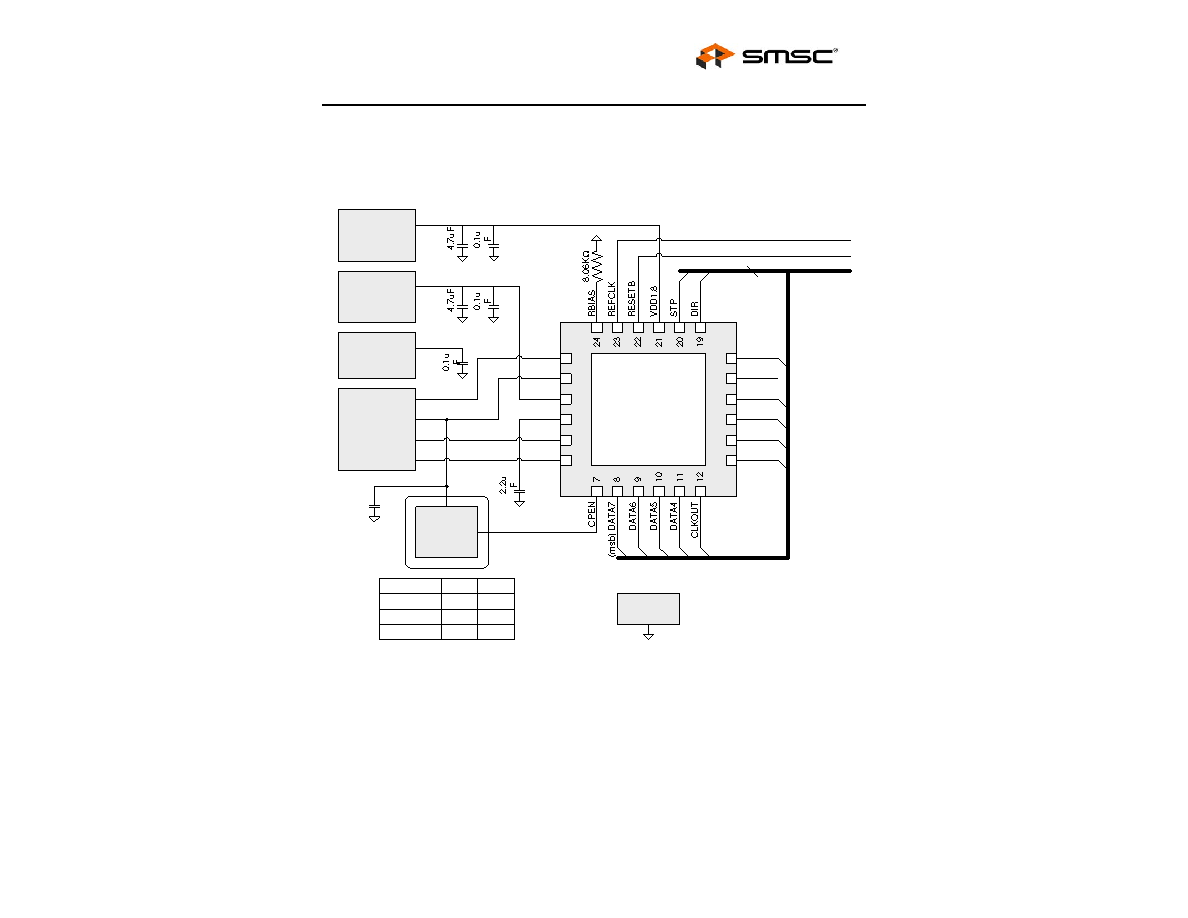

Figure 3 USB3315 QFN Application Diagram
USB
Connector
ULPI Interface
5 Volt
Supply
3.1-5.5V
Battery /
Supply
12
CVBUS
Host/OTG Only
CVBUS
Host
Device
OTG Device
Min
120uF
1uF
1uF
Max
10uF
6.5uF
VBUS
ID
VDD3.3
DM
DP
NXT
DATA0
DATA2
DATA3
DATA1
VDDIO
1
2
3
4
5
6
18
17
16
15
14
13
24Pin
QFN
4 x 4 mm
VBAT
1.8V
Supply
Reference Clock
RESETB
QFN
Ground Flag
1.8-3.3V
IO Supply
VDDIO
Note:
VDDIO can
be connected
to the 1.8V
supply for
1.8V IO
REFCLK and CLKOUT should be
isolated with a ground line on both
sides.
