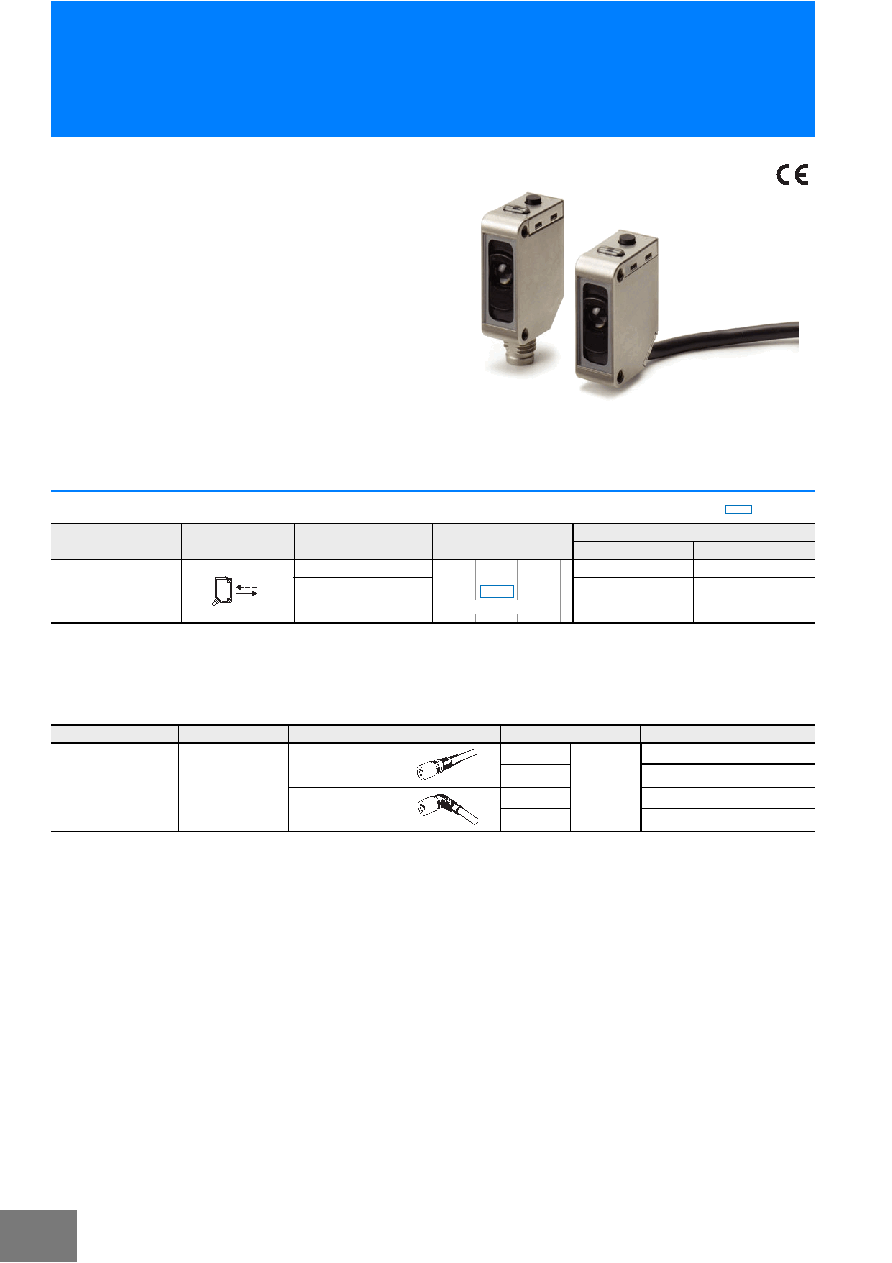

Color Mark Detection Compact Photoelectric Sensor

E3ZM-V

Industry's Smallest Color Mark

Sensor

• Excellent space savings. (Reduced by 90% compared with

previous OMRON models.)

• Improved color-difference discrimination with white LED and

RGB signal processing.

• Equipped with two types of teaching:

2-point teaching and automatic teaching.

For the most recent information on models that have been certified for

safety standards, refer to your OMRON website.

Ordering Information

Sensor [Refer to Dimensions on page 13.]

* A deviation of

±2 mm (typical value) can be handled for combinations of white, yellow, and black. Refer to page 7 for the detection capability for other color combinations.

Accessories

Sensor I/O Connectors (Sockets on One Cable End)

(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

[Refer to Dimensions on XS3.]

Note: The outer cover of the cable is made of PVC (polyvinyl chloride), the nut is SUS316L, and the degree of protection is IP67. When high-pressure washing will be

used, select an I/O Connector that has IP69K degree of protection.

*1. The connector will not rotate after connecting.

*2. The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.

Sensing method

Appearance

Connection method

Sensing distance

Model

NPN output

PNP output

Mark Sensor

(Diffuse reflective)

Pre-wired (2 m)

E3ZM-V61 2M

E3ZM-V81 2M

Connector (M8, 4 pins)

E3ZM-V66

E3ZM-V86

Size

Cable

Appearance

Cable type

Model

M8 (4 pins)

Standard

2 m

4-wire

XS3F-E421-402-A

5 m

XS3F-E421-405-A

2 m

XS3F-E422-402-A

5 m

XS3F-E422-405-A

White light

12

±2 mm*

Straight *1

L-shaped *1*2
