F3SG-R Datasheet(PDF) 81 Page - Omron Electronics LLC |
|
|
|||||||||||||||||||||||||||||
F3SG-R Datasheet(HTML) 81 Page - Omron Electronics LLC |
|
|

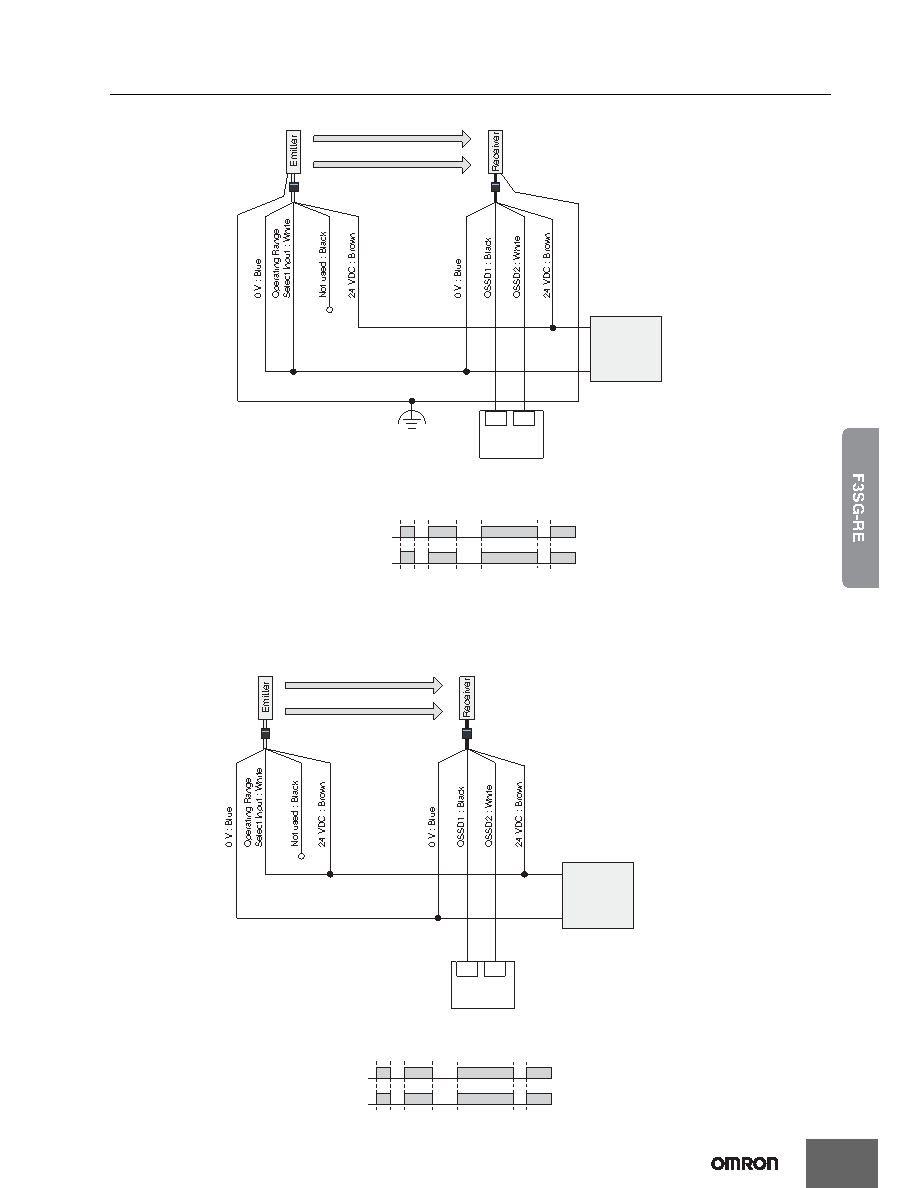

81 / 164 page  F3SG-RE 81 Connections (Basic Wiring Diagram) Short Mode Note: Functional earth connection is unnecessary when you use the F3SG-RE in a general industrial environment where noise control or stable power supply is considered. However, when you use the F3SG-RE in an environment where there may be excessive noise from surroundings or stable power supply may be interfered, it is recommended the F3SG-RE be connected to functional earth. The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable according to the example above. Refer to Safety Light Curtain F3SG-R Series User's Manual for more information. Long Mode Note: For the functional earth connection, refer to the Short Mode example. +24 V 0 V DC Power Supply Safety Controller *1*2 IN1 IN2 Unblocked Blocked OSSD Functional Earth Beam state *1.Refer to page 82 for more information. *2.The safety controller and the F3SG-RE must share the power supply or be connected to the common terminal of the power supply. IN1 IN2 +24 V 0 V DC Power Supply Safety Controller *1*2 Unblocked Blocked OSSD Beam state *1.Refer to page 82 for more information. *2.The safety controller and the F3SG-RE must share the power supply or be connected to the common terminal of the power supply. |
|
