ST10C167
4/65
I - INTRODUCTION
The
ST10C167
is
a
derivative
of
the
STMicroelectronics
ST10
family
of
16-bit
single-chip CMOS microcontrollers. It combines
high CPU performance (up to 12.5 million
instructions per second) with high peripheral
functionality and enhanced I/O capabilities.
It also provides on-chip high-speed RAM and
clock generation via PLL.

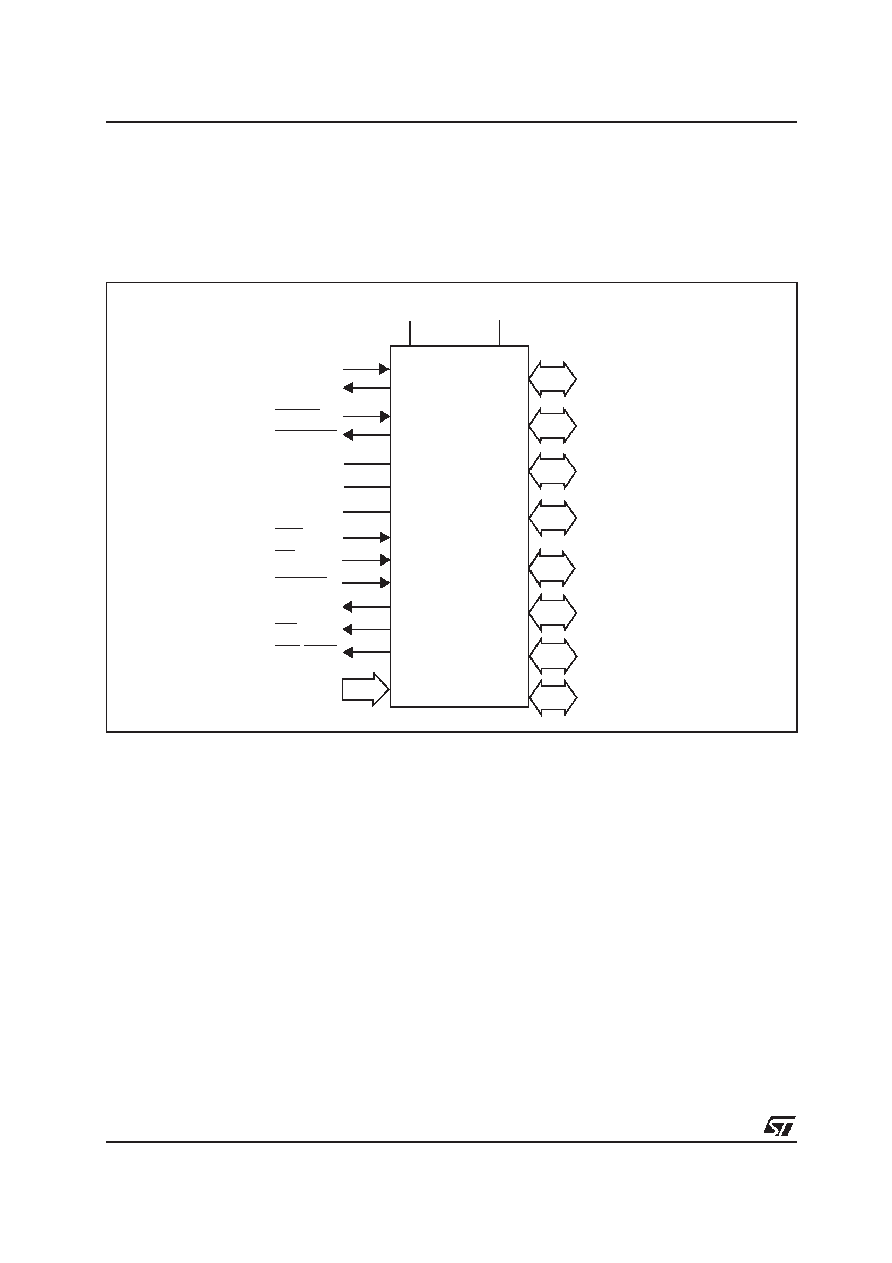

Figure 1 : Logic Symbol
XTAL1
RSTIN
XTAL2
RSTOUT
NMI
EA
READY
ALE
RD
WR/WRL
Port 5
16-bit
Port 6
8-bit
Port 4
8-bit
Port 3
15-bit
Port 2
16-bit
Port 1
16-bit
Port 0
16-bit
V
DD
VSS
Port 7
8-bit
Port 8
8-bit
VAREF
VAGND
ST10C167
RPD
