VT5376
Typical application
23/30
8
Typical application

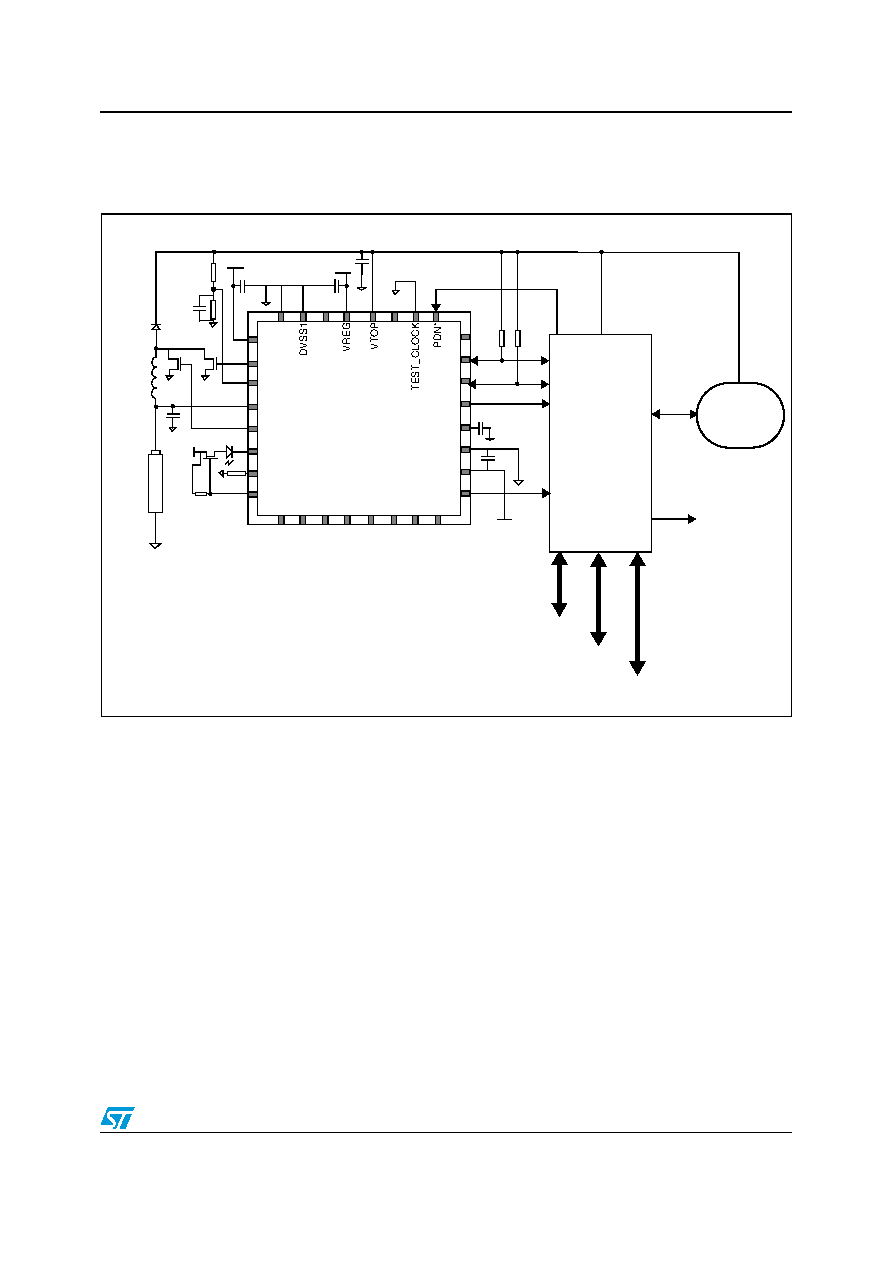

Figure 14.
Very low power and low cost wireless laser application
1.8V
MCU
1 AA
buttons/scroll wheel/tilt wheel
RF module
1.8V
BT or 2.4 GHz prop
VTOP (>=2.2V)
Low Batt
1.8V
VTOP
resolution setting switches
display
1
LASER_OUT
RBIN
LASER_NEN
AVSS
AVDD
DVDD2
DVSS2
VBAT
RC_OSC
SDA
SCL
MOTION
VREF
VGATE_START
VT5376
RESET_OUT
VGATE_ON
PDN* = POWER_DOWN
max load = 25mA
