P7600

ETALDOC 826/4

Page 3 of 3

July 2005

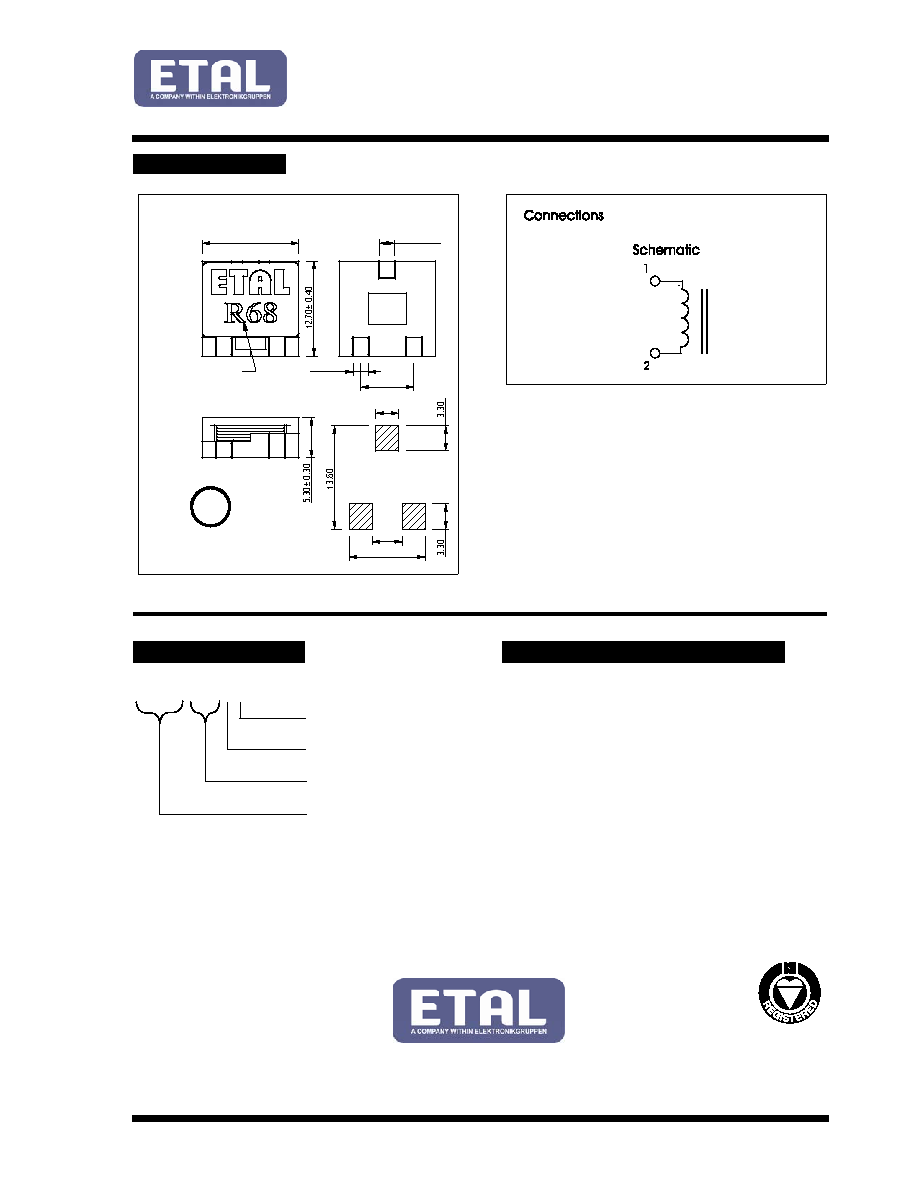

CONSTRUCTION

Dimensions shown are in millimetres

Terminal plating JESD97 category = e3.

Recommended reflow solder profile: 2 minutes

@ 150-200ºC, 10 seconds @ 260ºC; time above

217ºC 60 seconds maximum.

ORDERING CODE

ABSOLUTE MAXIMUM RATINGS

Storage temperature

-40ºC to

+125ºC

Operating temperature

-25ºC to

+105ºC

Soldering temperature profile peak

260ºC 10s

P7600-

Tape and Reel

Tolerance (±20%)

Inductance code

Type code

Handle

accordance

with

IPC/JEDEC

J-STD-033 procedure for components classified

as IPC/JEDEC J-STD-020 Moisture Sensitivity

Level 2.

ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela

Telephone: +358 (0)20 7500 330

Fax: +358 (0)20 7500 333

Website: www.etalgroup.com

Email: etalgroup@egruppen.com

FM 25326

ISO 9001

Fig. 3

2.00± 0.20

7.00± 0.50

3.00

4.00

12.70± 0.40

10.00

MARKING

INDUCTANCECODE

PCBPATTERN
