・Strong construction, using metal shells.

・One-touch mating and sure locking by

“Push-On & Turn-Off”mechanism.

・Sequence structure with Protective circuitry.

(First make-last break contacts)

・Size 20 power contacs for position 1 and 2,

making first connections.

・High reliability by crimping termination.

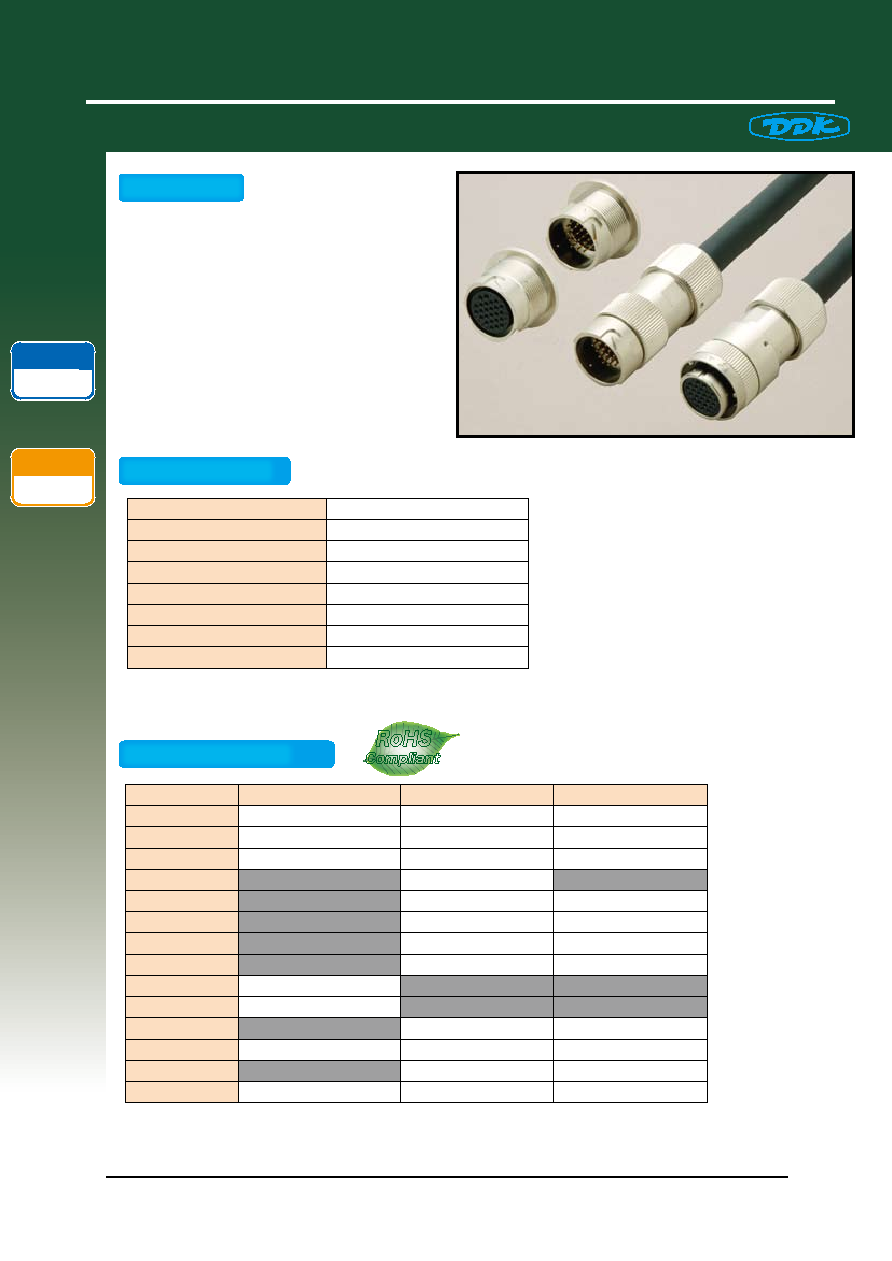

CM09 Series

One-Touch Locking Style

Small Sized Circular Connectors

1

RoHS

Compliant

RoHS

Compliant

◆ FEATURES

◆ SPECIFICATIONS

◆ MATERIALS/FINISHES

Rated Current

1A ／ Contact

Rated Voltage

200V AC (r.m.s.)

Dielectric Withstanding Voltage 　

1500V AC(r.m.s.) ／ 1 minute

Insulation Resistance

1,000M Ω Min. at 500V DC

Waterproof

IP67 when mated

Operating Temperature Range

-25° C to +70° C

No.of Contacts

25（#20-2 Pin , #22-23 Pin）

Applicable Wire Size

20AWG to 22AWG

Item

Receptacle

Plug

Cable Receptacle

Insulator

Plastic(UL94V-0)/Black

Plastic(UL94V-0)/Black

Plastic(UL94V-0)/Black

Contact

Copper Alloy/Gold Plating

Copper Alloy/Gold Plating Copper Alloy/Gold Plating

Shell

Zinc Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Coupling Ring

Zinc Alloy/Nickel Plating

Backshell

Zinc Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Bushing

Synthetic Rubber/Black

Synthetic Rubber/Black

Cable Clamp

Plastic(UL94V-0)/Black

Plastic(UL94V-0)/Black

Clamp Nut

Zinc Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Hex. Nut

Zinc Alloy/Nickel Plating

Gasket

Synthetic Rubber/Black

O Ring

Synthetic Rubber/Black

Synthetic Rubber/Black

Ground Plate

Copper Alloy/Gold Plating

Copper Alloy/Gold Plating Copper Alloy/Gold Plating

Screw

Stainless Steel

Stainless Steel

Spring Pin

Stainless Steel

Stainless Steel

Stainless Steel

200711

Waterproof

IP 67

Lock Type

Push-On
