ADL5356
Rev. 0 | Page 11 of 24
VS = 5 V, IS = 350 mA, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, LO power = 0 dBm, RF power = −10 dBm, R1 = R4 = 1.3 kΩ, R2 = R5 = 1 kΩ,
ZO = 50 Ω, VGS0 = VGS1 = VGS2 = 0 V, unless otherwise noted.
100
7.6
7.8
8.0
8.2
8.4
8.6
8.8
80
60
40
20
0
CONVERSION GAIN (dB)
MEAN = 8.26
SD = 0.31%

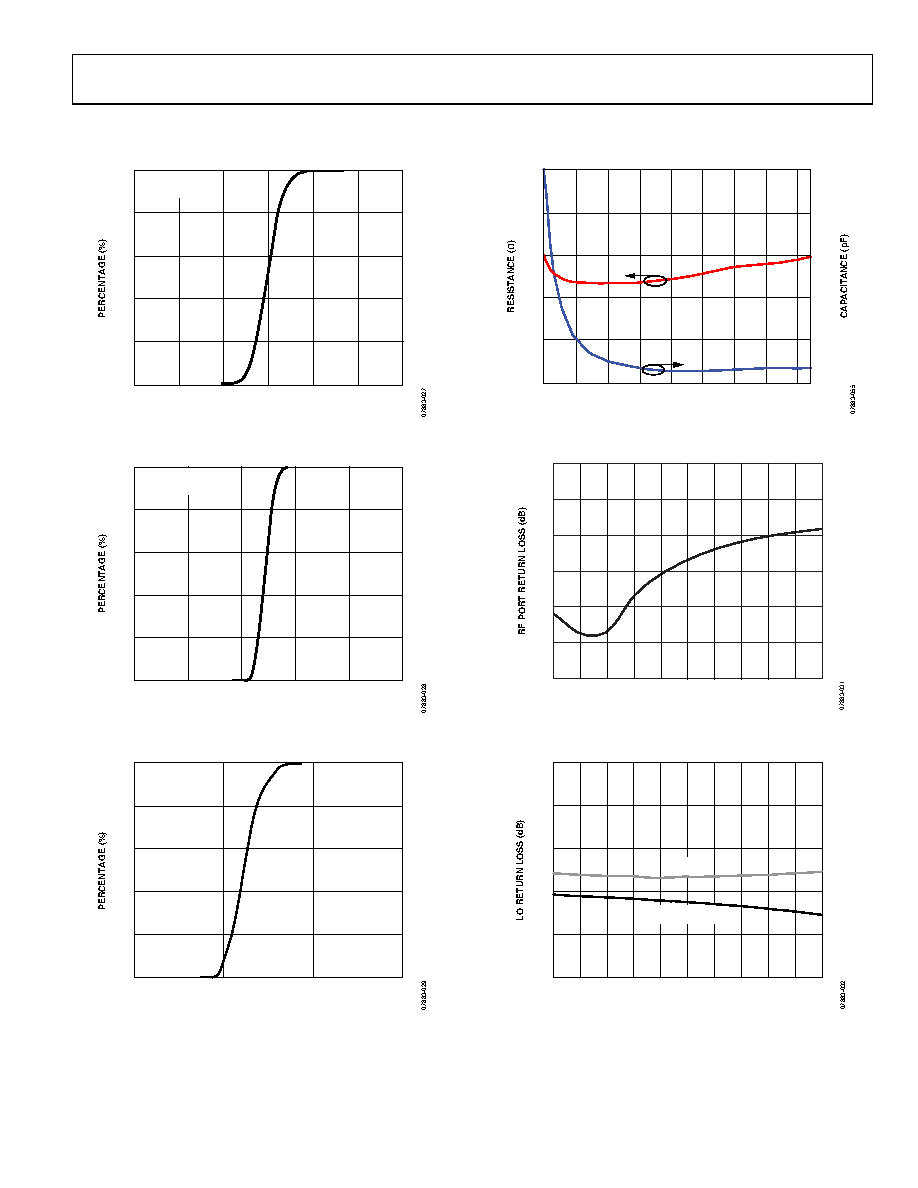

Figure 27. Conversion Gain Distribution
100
25
20
30
35
40
45
80
60
40
20
0
INPUT IP3 LO (dBm)
MEAN = 31.67
SD = 0.35%
Figure 28. Input IP3 Distribution
100
10
11
12
13
80
60
40
20
0
INPUT P1dB (dBm)
MEAN = 11.37
SD = 0.49%
Figure 29. Input P1dB Distribution
500
10
8
6
4
2
0
30
80
130
180
230
IF FREQUENCY (MHz)
280
330
380
430
400
300
200
100
0
Figure 30. IF Output Impedance (R Parallel C Equivalent)
30
25
20
15
10
5
0
1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
RF FREQUENCY (MHz)
Figure 31. RF Port Return Loss, Fixed IF
LO FREQUENCY (GHz)
1.50
1.55
1.60
1.65
1.70
1.75
1.80
1.85
1.90
1.95
2.00
25
0
5
10
15
20
SELECTED
UNSELECTED
Figure 32. LO Return Loss, Selected and Unselected
