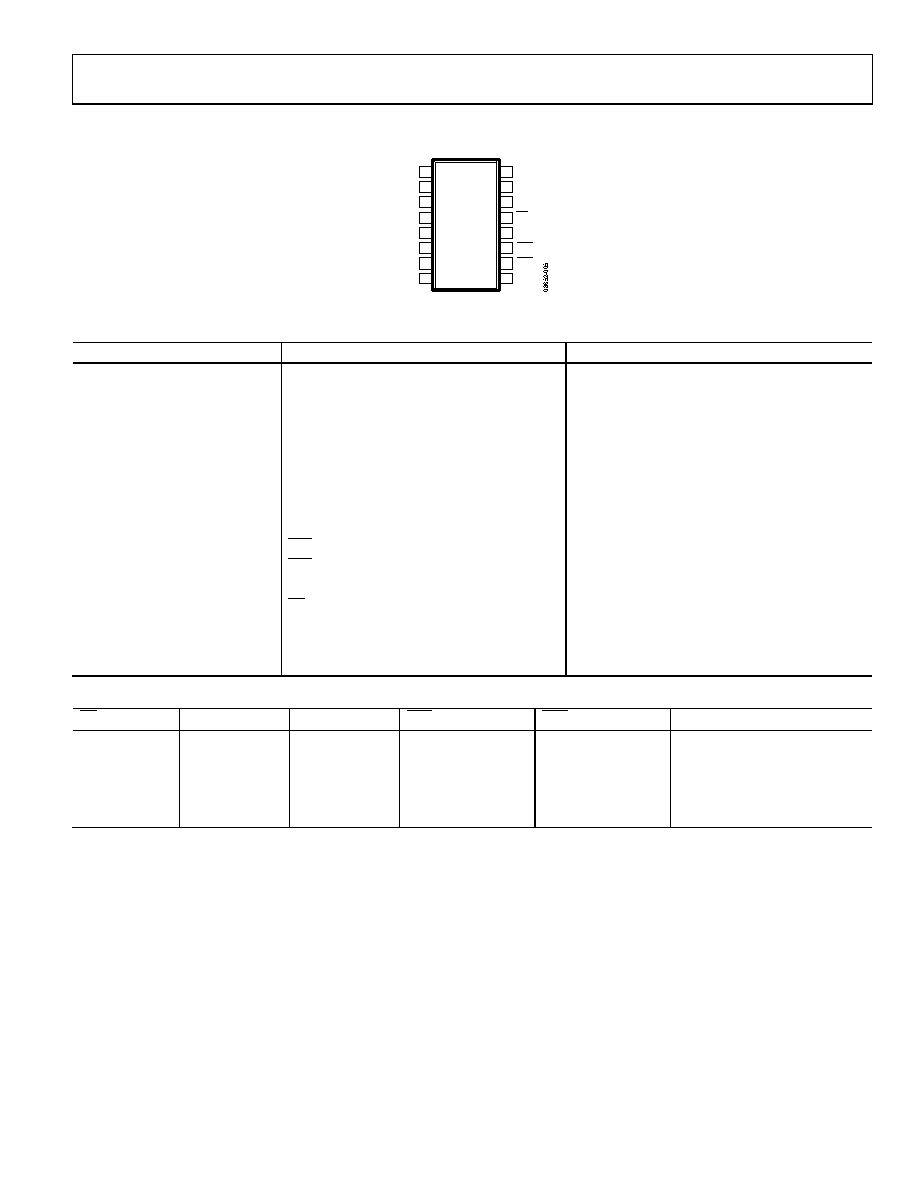

background image
ADV3221/ADV3222
Rev. 0 | Page 7 of 20
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
IN0
1
GND
2
IN1
3
GND
4
V+
16
A0
15
A1
14
CS
13
IN2
5
OUT
12
GND
6
CK2
11
IN3
7
CK1
10
GND
8
V–
9
ADV3221/
ADV3222
TOP VIEW
(Not to Scale)
Figure 5. Pin Configuration
Table 6. Pin Function Descriptions
Pin No.
Mnemonic
Description
1
IN0
Analog Input
2
GND
Ground
3
IN1
Analog Input
4
GND
Ground
5
IN2
Analog Input
6
GND
Ground
7
IN3
Analog Input
8
GND
Ground
9
V−
Negative Power Supply
10
CK1
First Rank Clock
11
CK2
Second Rank Clock
12
OUT
Analog Output
13
CS
Chip Select (Output Enable)
14
A1
Select Address Most Significant Bit
15
A0
Select Address Least Significant Bit
16
V+
Positive Power Supply
Table 7. Truth Table
CS
A1
A0
CK1
CK2
Output
0
0
0
0
0
IN0
0
0
1
0
0
IN1
0
1
0
0
0
IN2
0
1
1
0
0
IN3
1
X1
X1
0
0
High-Z
1 X is don’t care.
