3541L-S08-R Datasheet(PDF) 2 Page - Unisonic Technologies

No. de pieza 3541L-S08-R
Descripción Electrónicos  CLASS AB STEREO HEADPHONE DRIVER WITH MUTE
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  UTC [Unisonic Technologies]
Página de inicio  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

3541L-S08-R Datasheet(HTML) 2 Page - Unisonic Technologies

  3541L-S08-R Datasheet HTML 1Page - Unisonic Technologies 3541L-S08-R Datasheet HTML 2Page - Unisonic Technologies 3541L-S08-R Datasheet HTML 3Page - Unisonic Technologies 3541L-S08-R Datasheet HTML 4Page - Unisonic Technologies 3541L-S08-R Datasheet HTML 5Page - Unisonic Technologies 3541L-S08-R Datasheet HTML 6Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 2 / 6 page
background image
3541
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 6
www.unisonic.com.tw
QW-R502-035.B

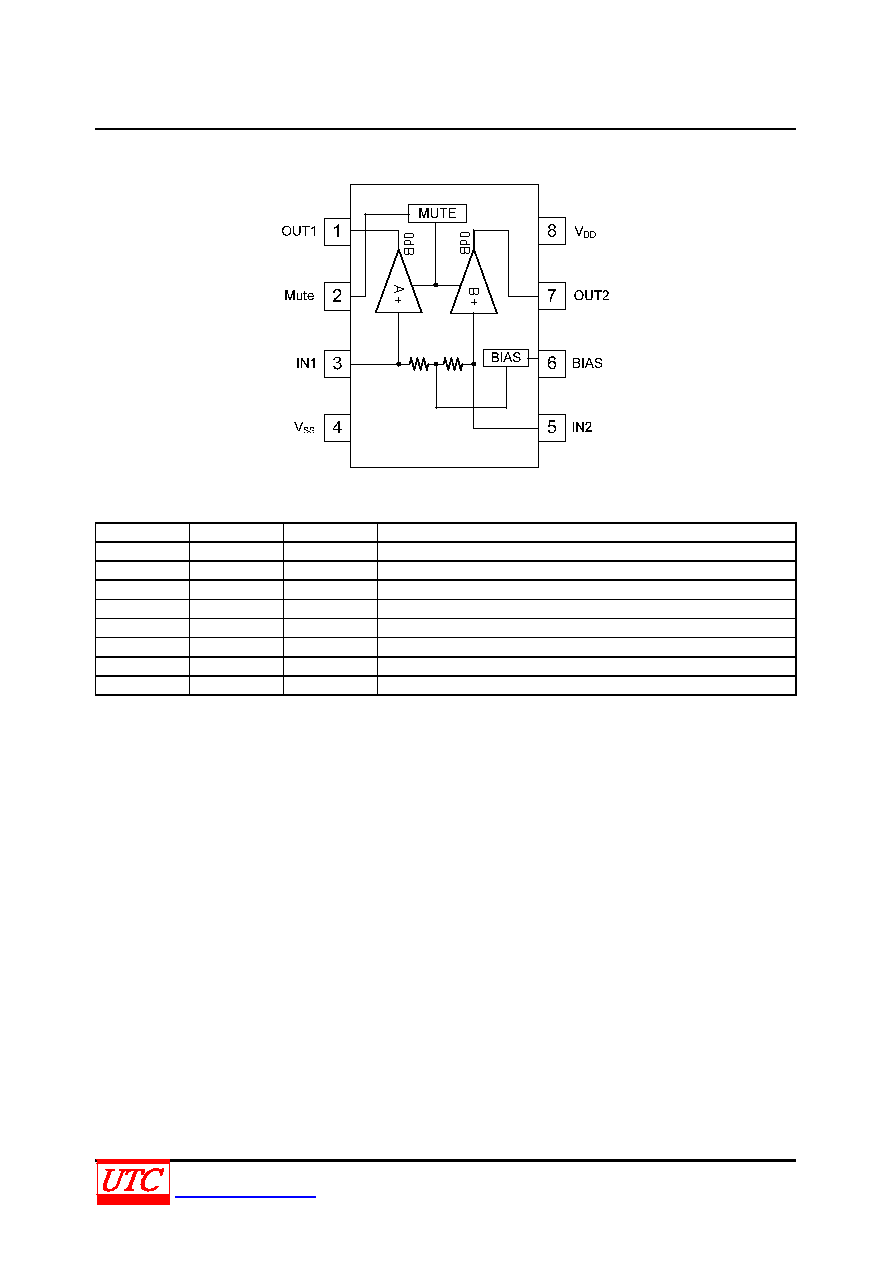

BLOCK DIAGRAM
PIN DESCRIPTION
PIN NO.
PIN NAME
I/O
DESCRIPTION
1
OUT 1
O
Output pin for Channel A
2
Mute
I
Mute control input, high for normal operation
3
IN 1
I
Input pin for Channel A
4
VSS
Power ground
5
IN 2
I
Input pin for Channel B
6
BIAS
I
Right channel bias input pin
7
OUT 2
O
Output pin for Channel B
8
VDD
Power supply input
