SSM2377
Rev. 0 | Page 6 of 16

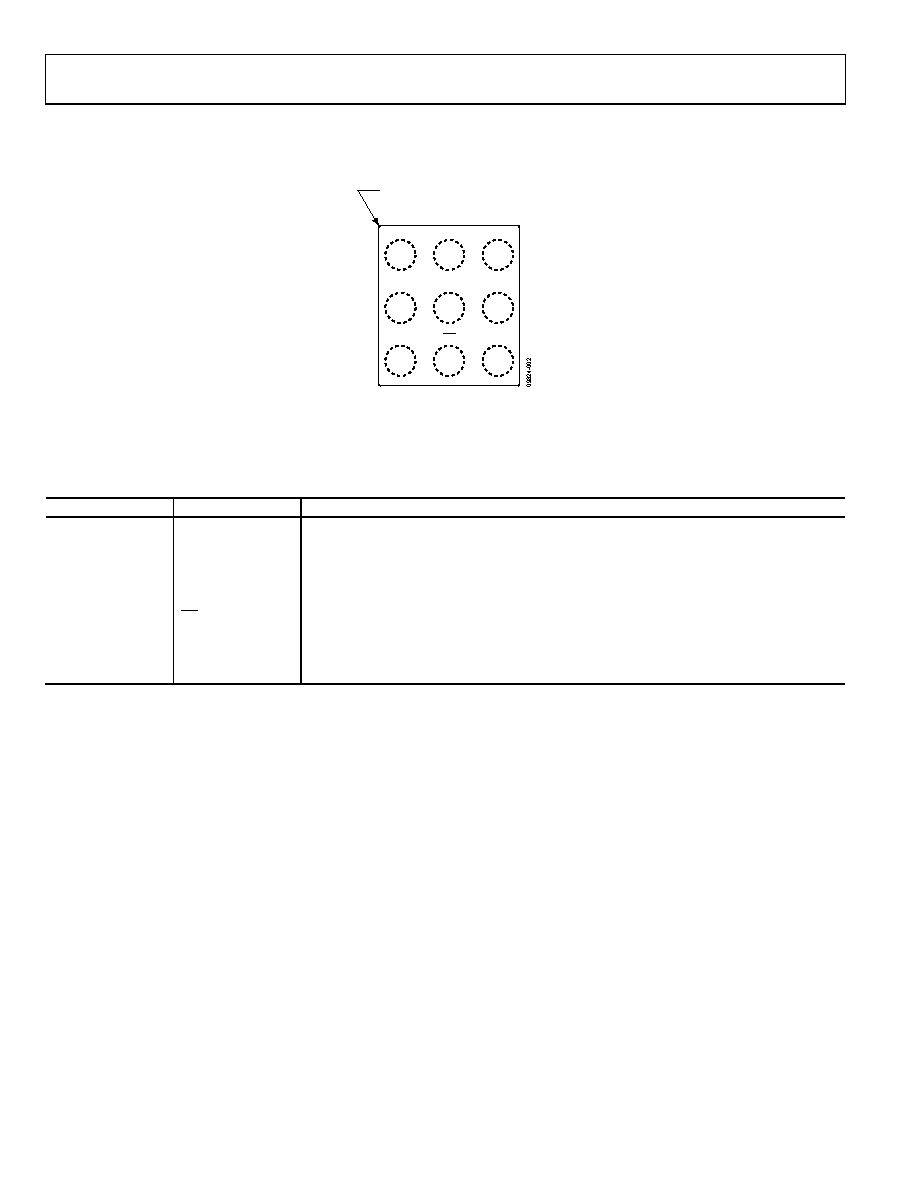

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
TOP VIEW
(BALL SIDE DOWN)
Not to Scale
A
3
2
1
B
C
IN+
SD
GAIN
VDD
OUT–
IN–
GND
VDD
OUT+
BALL A1
CORNER
Figure 2. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
A1
IN+
Noninverting Input.
B1
VDD
Power Supply.
C1
IN−
Inverting Input.
A2
GAIN
Gain Selection Pin.
B2
VDD
Power Supply.
C2
SD
Shutdown Input. Active low digital input.
A3
OUT−
Inverting Output.
B3
GND
Ground.
C3
OUT+
Noninverting Output.
