300-R010-45G Datasheet(PDF) 21 Page - Magnetrol International, Inc.

No. de pieza 300-R010-45G
Descripción Electrónicos  Echotel짰 Model 300/301 Ultrasonic Non-Contact Transmitter For Level/Volume/Open Channel Flow
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  MAGNETROL [Magnetrol International, Inc.]
Página de inicio  http://www.magnetrol.com
Logo MAGNETROL - Magnetrol International, Inc.

300-R010-45G Datasheet(HTML) 21 Page - Magnetrol International, Inc.

Back Button 300-R010-45G Datasheet HTML 17Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 18Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 19Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 20Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 21Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 22Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 23Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 24Page - Magnetrol International, Inc. 300-R010-45G Datasheet HTML 25Page - Magnetrol International, Inc. Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 36 page
background image
Maximum head/
maximum flow
Ultrasonic
Transducer
Dead band
18" (457)
minimum
Flow
Water surface
Throat
3–4 H
minimum
Maximum
crest height,
2–3 H
Ultrasonic
Transducer
Maximum head, H
Crest
Channel floor
Drawdown

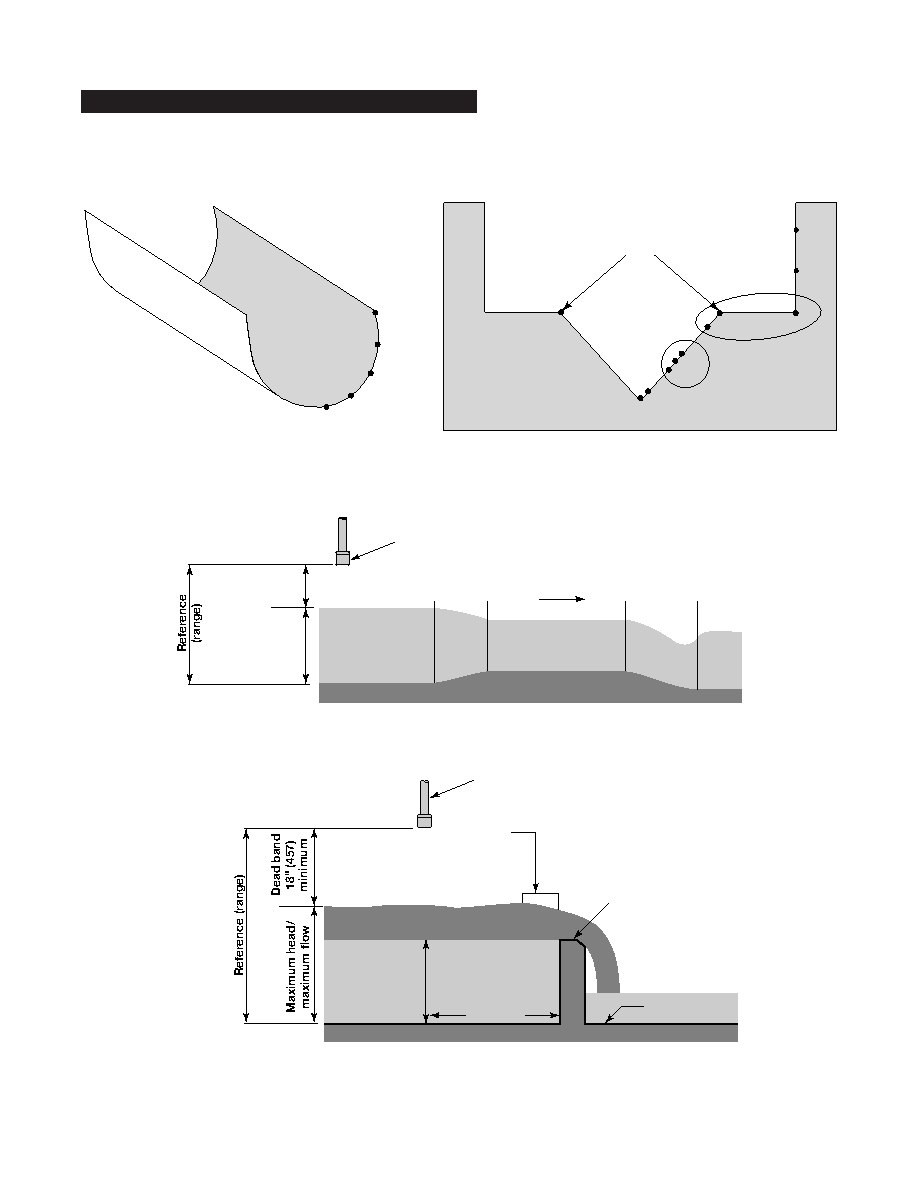

Figure 14
Flume (side view)
Figure 15
Weir (side view)
SYSTEM CONFIGURATION MENU—FLOW AND LEVEL cont.
NOTE: Install the transducer at the point recommended by
the flume/weir manufacturer to insure proper flow measure-
ment; or consult factory for transducer location.
SPLINE OR LINEAR
SPLINE
Figure 13
Custom Table Flow and Level
P1
P2
P3
P4
P5
Concentrate points along curve
P2
P3
P7
P10
Transition
point
P1
Concentrate points as follows:
A. At least two points at beginning (P1 and P2);
B. At least two points at end (P9 and P10);
C. Three points at approximate average flow rate (for
example, P3, P4, P5); and at transition point (P7)
and points on either side (P6, P8).
P5
P4
P6
P8
P9
Average flow rate
21
