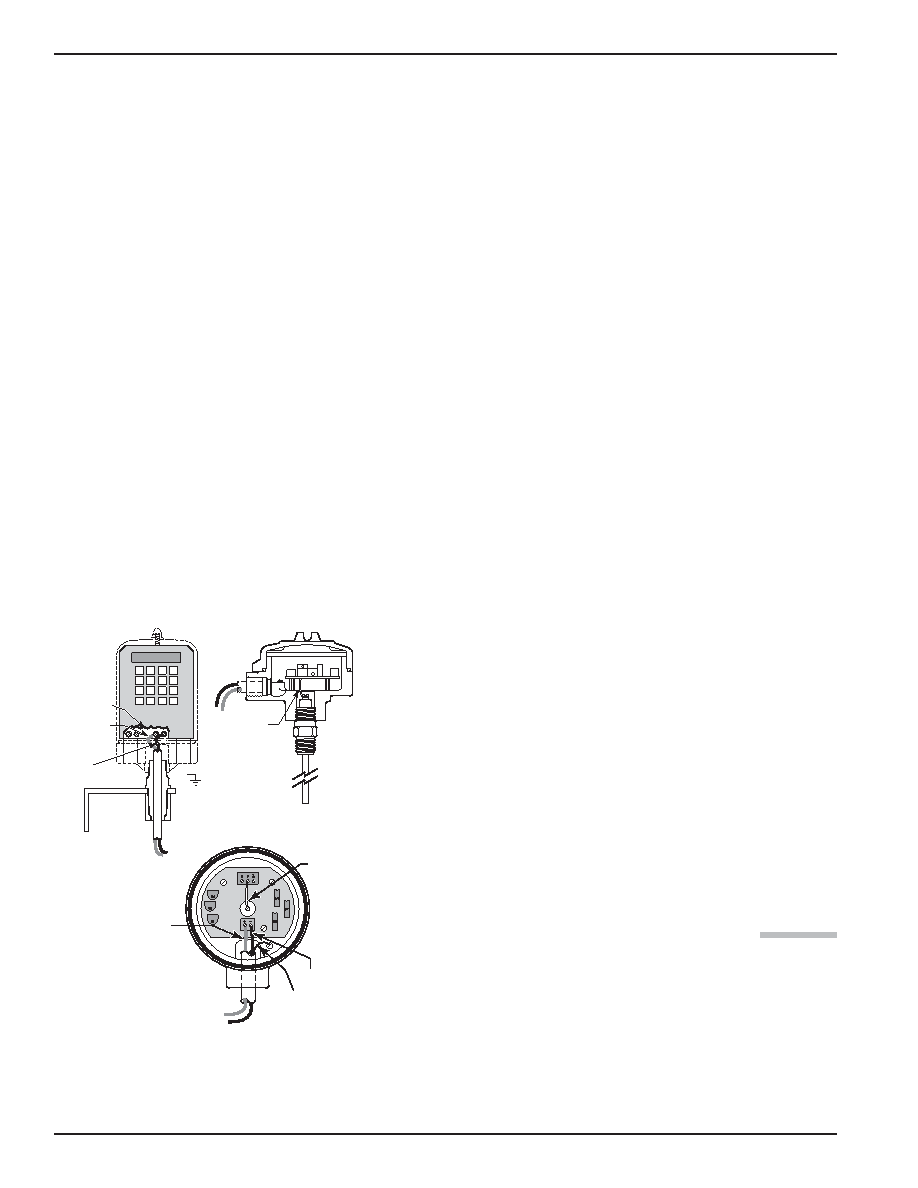

8 / 32 page ![]() 50-604 Kotron Model 804 Sentinel II RF Level Transmitter 5 NOTE: Do not allow the probe to fall in the tank while performing steps 7 through 18. 7. Loosen both socket head clamp screws. 8. Pull clamp and Teflon® retaining bushing off probe. 9. While holding the probe cable, loosen upper probe nut. 10. Pull excess cable up, through the probe nuts, until cable is taut. 11. Tighten the probe nuts. 12. Cut off cable 1.35" (34 mm) above top of upper probe nut, and strip off 1.25" (32 mm) of insulation. 13. Slide Teflon retaining bushing onto cable, and seat it into the upper probe nut. 14. Slide clamp onto cable and seat it in the Teflon retaining bushing. 15. Tighten both socket head clamp screws to approximately 35 inches/pound torque. 16. Slip mylar housing insulator over clamp. 17. Screw housing onto probe and tighten. Make sure conduit connection is properly aligned for wire entry. 18. Remove housing cover. NOTE: Refer to Electrostatic Discharge Handling Procedure on page 9. 19. Remove the electronics assembly from the housing by loosening the four mounting screws. 20. Locate the white wire, which is connected to the probe terminal (P) on the circuit board, and connect its free end to the probe connection screw. 21. Reinstall the electronics assembly into the housing. Caution: Check probe terminal connection carefully to ensure that the lug will not short packing gland or interfere with assembly of amplifier housing to probe. 22. Proceed to Wiring section on page 9. 2.2.4 Remote Mount with Standard Rigid Probe 2.2.4.1 Main amplifier Remote amplifier assemblies are normally shipped from the factory assembled into an “L” mounting bracket. To install amplifier assembly, proceed as follows. Refer to Figure 4. Figure 4 Remote Mount with Rigid Probe Wiring – (Black) – (Black) Top view Preamplifier Side view Preamplifier + (Red) Shield connected to green ground screw Probe wire (white) + (Red) Shield connected to green ground screw Side view Main Amplifier Probe wire (white) (Daughter board under shield) |
|
