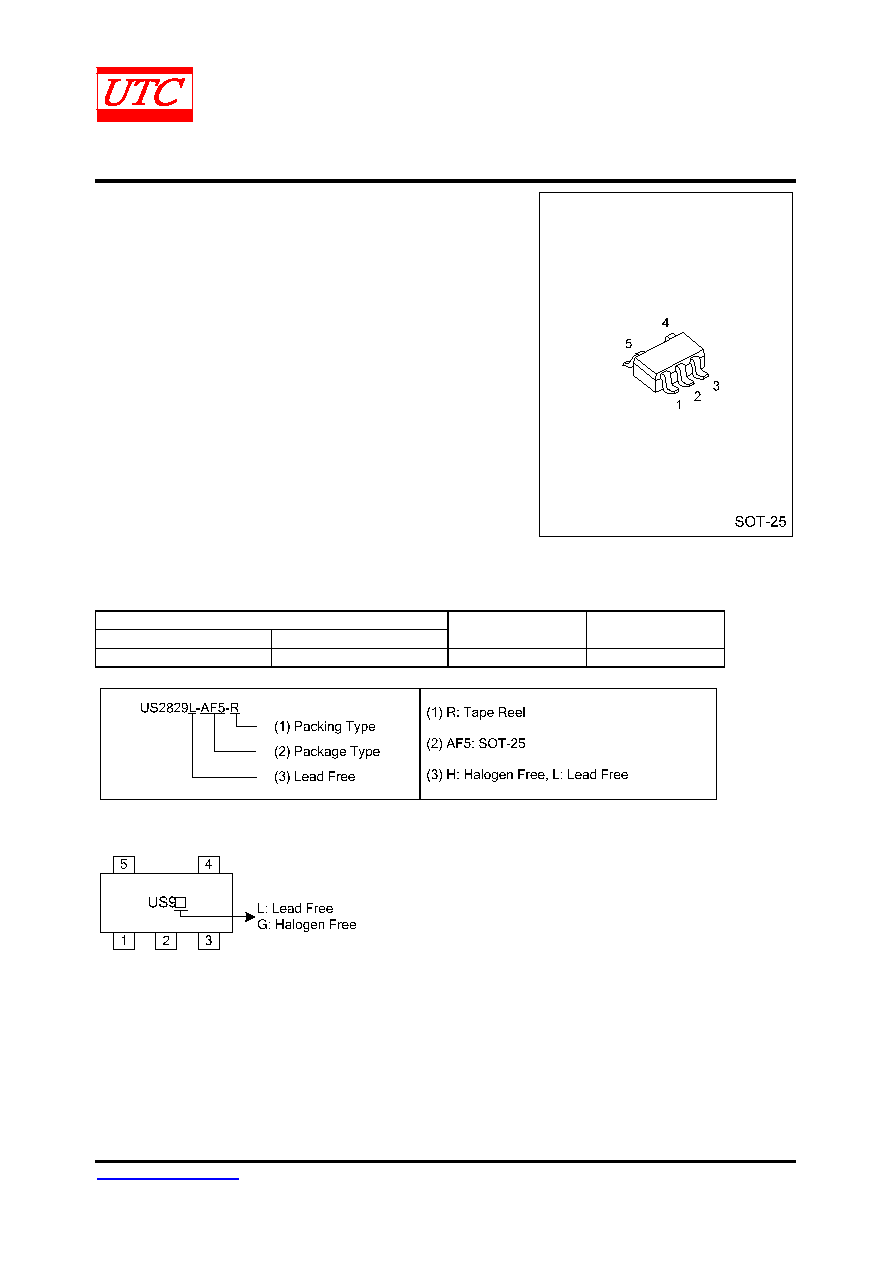

UNISONIC TECHNOLOGIES CO., LTD

US2829

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 4

QW-R502-361.b

SINGLE-CHANNEL

HIGH-SPEED MOSFET DRIVER

DESCRIPTION

The UTC US2829 is a single-channel high-speed MOS-FET

driver. The device is fabricated by use of BICMOS outputs to

achieve high switching speed. The outputs are capable of delivering

peak currents up to 2A into capacitive loads.

FEATURES

* Low-cost single-channel high-speed MOSFET driver

* 2A peak output current

* 25ns max rise/fall times and 40ns max propagation delay,1nF

load

* Low power dissipation: ICC=15μA(Max) @ Ta=25°C

* Broad VCC operating range:4V to 14V

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

US2829L-AF5-R

US2829G-AF5-R

SOT-25

Tape Reel

MARKING
