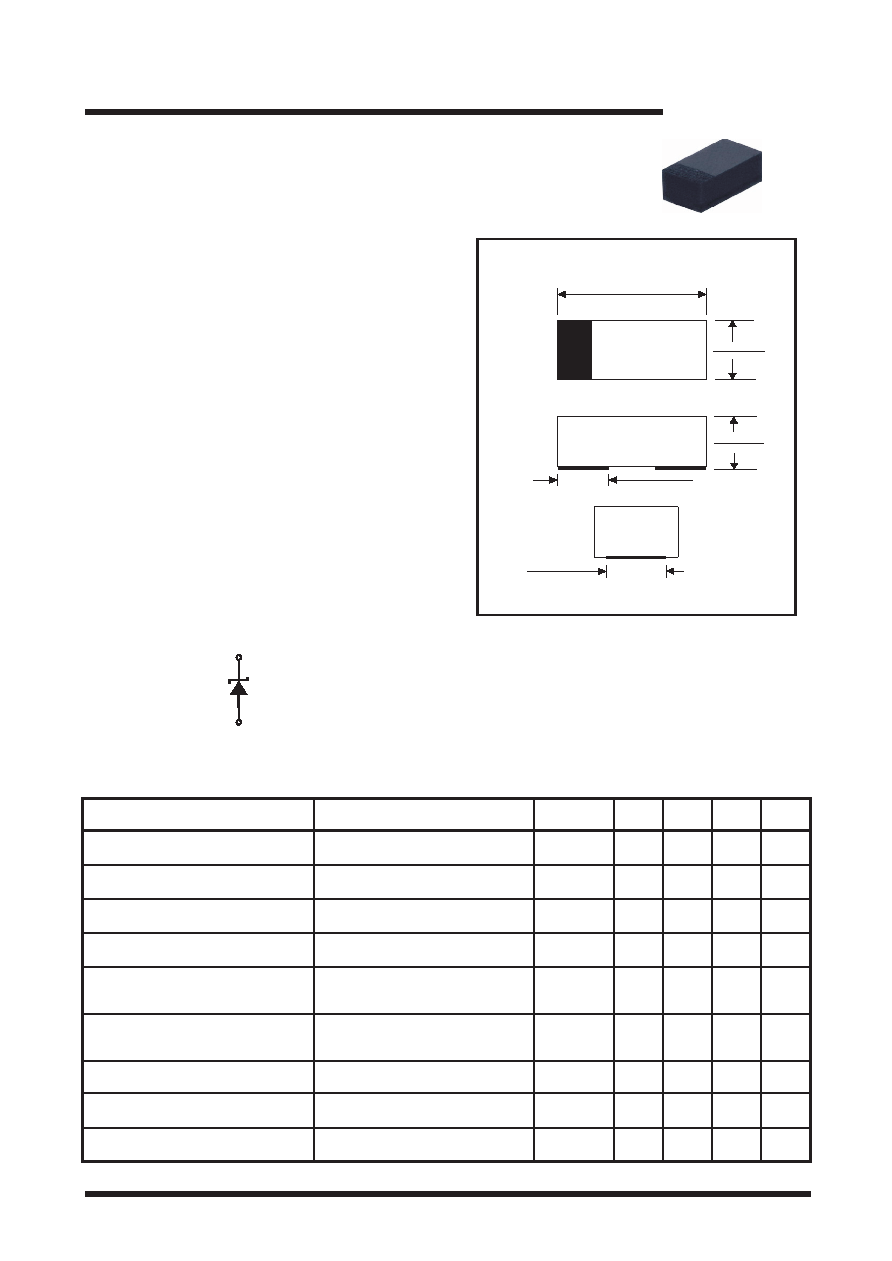

CPDERT5V0U datasheet(1/4 Pages) COMCHIP

No. de pieza	CPDERT5V0U

Descripción Electrónicos	SMD ESD Protection Diode

PDF	4 Pages

Scroll/Zoom	100%

Fabricante Electrónico	COMCHIP [Comchip Technology]

Página de inicio	http://www.comchiptech.com

Logo

1 / 4 page

CPDERT5V0U

SMD ESD Protection Diode

RoHS Device

Page 1

QW-A7015

REV:C

Features

- Uni-directional ESD protection

- Working voltage:5V

- Ultra small SMD package:0503.

- High component density.

Mechanical data

- Case: 0503/SOD-723F Standard package ,

molded plastic.

- Terminals: Gold plated, solderable per

MIL-STD-750, method 2026.

- Marking Code: Cathode band & E05

- Mounting position: Any.

- Weight: 0.0011 gram (approx.).

Comchip Technology CO., LTD.

Maximum Rating AND Electrical Characteristics

O

(at TA=25 C unless otherwise noted)

Symbol

Typ

Parameter

Min

Max

Unit

Conditions

Forward voltage

VF

V

IF = 10mA

0.8

Junction capacitance

Diode breakdown voltage

VBD

V

IR = 1mA

120

CT

pF

VR = 0V,f = 1MHz

6

Leakage current

IL

uA

VR = 5V

0.3

2.0

90

Peak pulse power

PPP

W

200

Operation temperature

TJ

125

OC

Clamping voltage

VC

V

IPP = 5A,TP=8/20us

9.8

IPP = 16A,TP=8/20us

12.5

Storage temperature

TSTG

-55

150

OC

ESD

kV

IEC 61000-4-2(air)

IEC 61000-4-2(contact)

20

15

ESD capability

Comchip

S M D D i o d e S p e c i a l i s t

Dimensions in inches and (millimeter)

0503/SOD-723F

0.022(0.55)

0.018(0.45)

0.022(0.55) Typ.

0.016(0.40) Typ.

0.053(1.35)

0.045(1.15)

0.034(0.85)

0.026(0.65)
