Data Sheet
AD8476
Rev. B | Page 7 of 24
12
11
10
1
3
4
NC
–OUT
+OUT
9 VOCM
INP
INN
2
INP
INN
AD8476
TOP VIEW
(Not to Scale)
NOTES
1. PINS LABELED NC CAN BE ALLOWED TO FLOAT,
BUT IT IS BETTER TO CONNECT THESE PINS TO
GROUND. AVOID ROUTING HIGH SPEED SIGNALS
THROUGH THESE PINS BECAUSE NOISE COUPLING
MAY RESULT.
2. SOLDER THE EXPOSED PADDLE ON THE BACK OF
THE PACKAGE TO A GROUND PLANE.

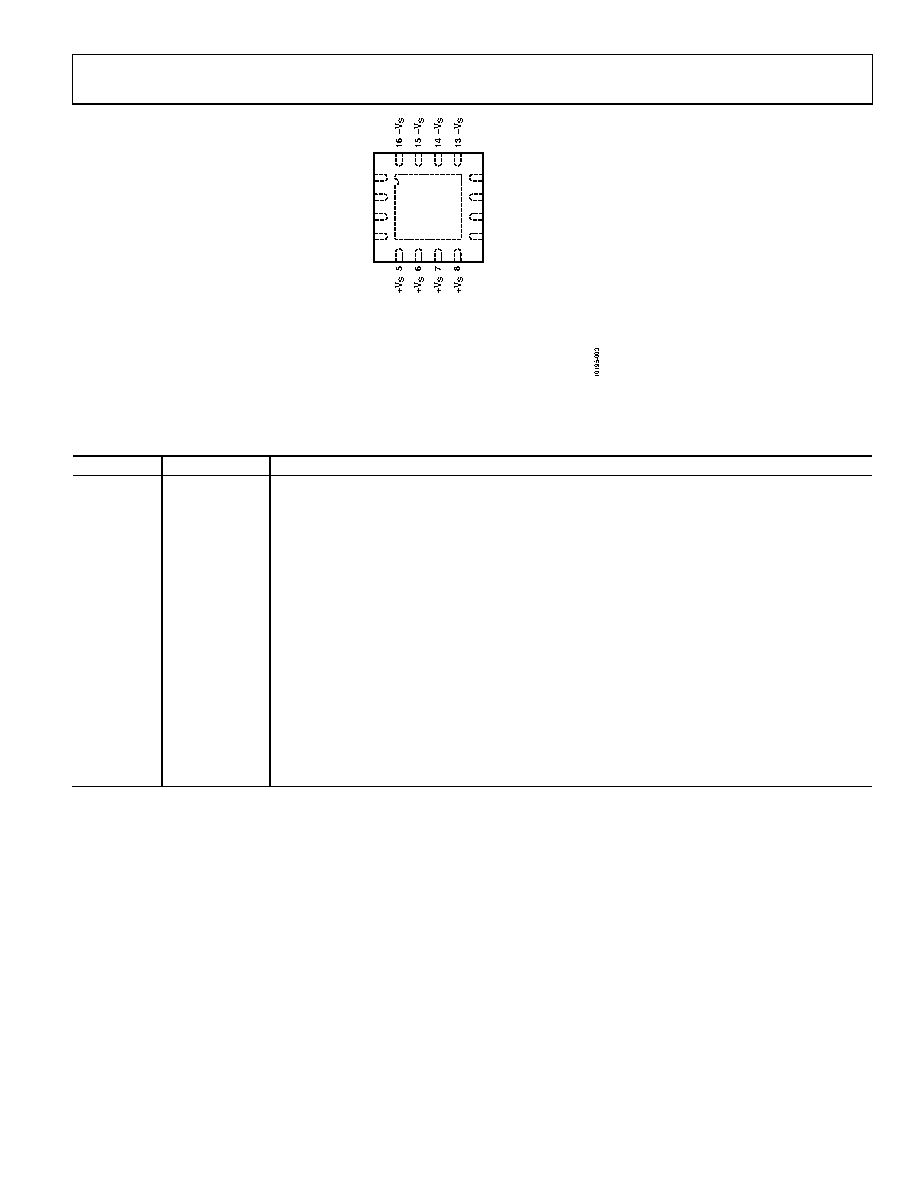

Figure 4. 16-Lead LFCSP Pin Configuration
Table 5. 16-Lead LFCSP Pin Function Descriptions
Pin No.
Mnemonic
Description
1
INP
Positive Input.
2
INP
Positive Input.
3
INN
Negative Input.
4
INN
Negative Input .
5
+VS
Positive Supply.
6
+VS
Positive Supply.
7
+VS
Positive Supply.
8
+VS
Positive Supply.
9
VOCM
Output Common-Mode Adjust.
10
+OUT
Noninverting Output.
11
−OUT
Inverting Output.
12
NC
This pin is not connected internally (see Figure 4).
13
−VS
Negative Supply.
14
−VS
Negative Supply.
15
−VS
Negative Supply.
16
−VS
Negative Supply.
EPAD
Solder the exposed paddle on the back of the package to a ground plane.
