AD8564
–8–
REV. A

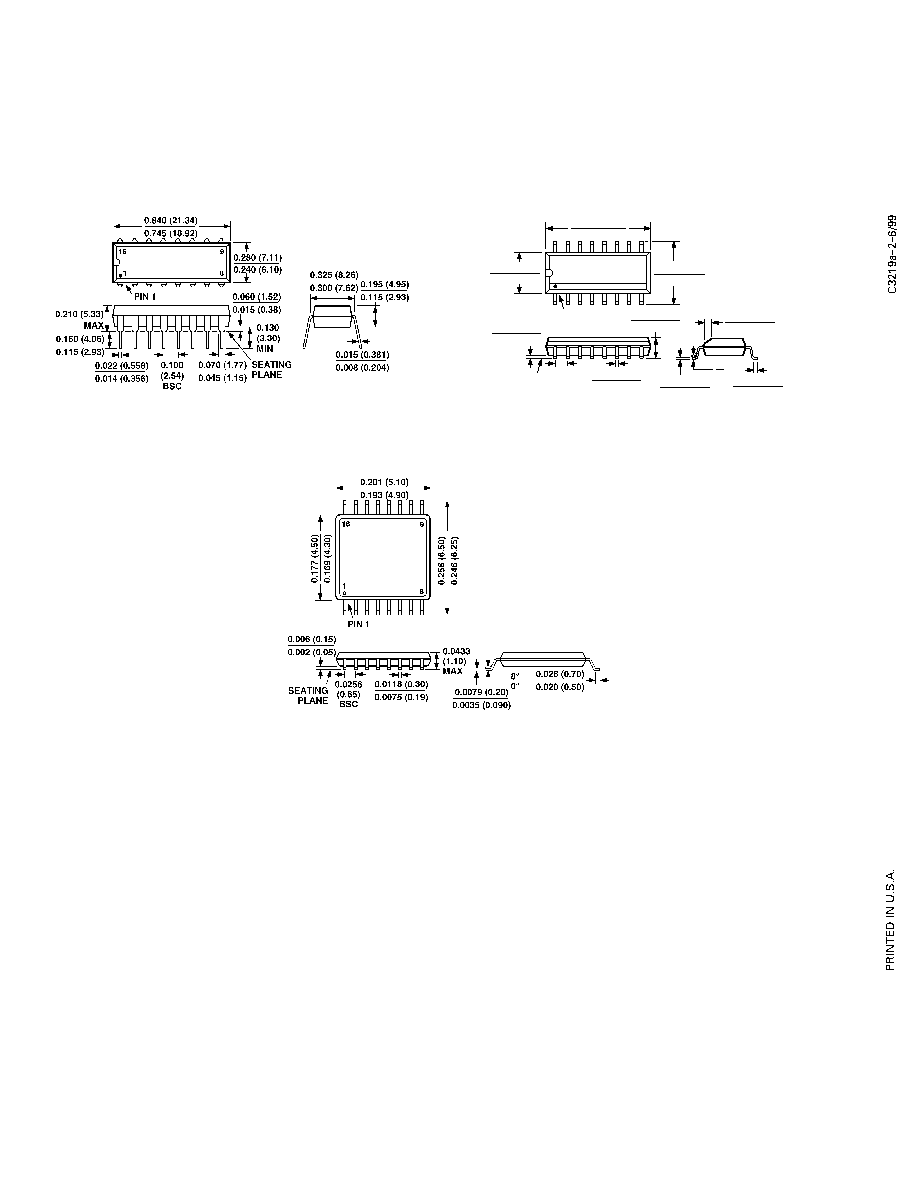

OUTLINE DIMENSIONS
Dimensions shown in inches and (mm).
16-Lead Epoxy DIP
(N-16)
16-Lead Narrow Body SOIC
(R-16A)
16-Lead Thin Shrink Small Outline (TSSOP)
(RU-16)
16
9
8
1
0.3937 (10.00)
0.3859 (9.80)
0.2440 (6.20)
0.2284 (5.80)
0.1574 (4.00)
0.1497 (3.80)
PIN 1
SEATING
PLANE
0.0098 (0.25)
0.0040 (0.10)
0.0192 (0.49)
0.0138 (0.35)
0.0688 (1.75)
0.0532 (1.35)
0.0500
(1.27)
BSC
0.0099 (0.25)
0.0075 (0.19)
0.0500 (1.27)
0.0160 (0.41)
8
0
0.0196 (0.50)
0.0099 (0.25)
45
