AD8250
Data Sheet
Rev. C | Page 14 of 24
TIME (µs)
2µs/DIV
20mV/DIV

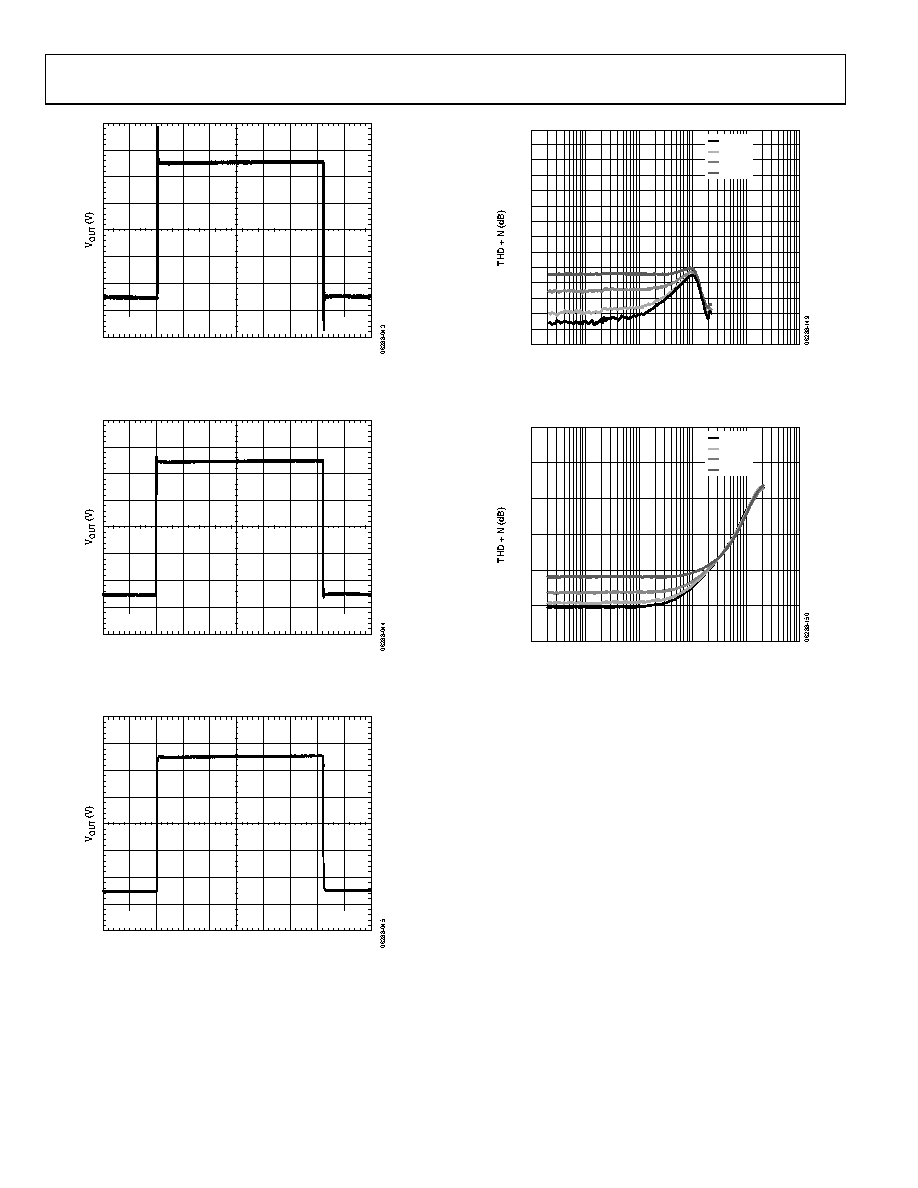

Figure 42. Small Signal Response
G = 2, RL = 2 kΩ, CL = 100 pF
TIME (µs)
2µs/DIV
20mV/DIV
Figure 43. Small Signal Response
G = 5, RL = 2 kΩ, CL = 100 pF
TIME (µs)
2µs/DIV
20mV/DIV
Figure 44. Small Signal Response,
G = 10, RL = 2 kΩ, CL = 100 pF
–50
–55
–60
–65
–70
–75
–80
–85
–90
–95
–100
–105
–110
–115
–120
10
100
1k
10k
100k
1M
FREQUENCY (Hz)
G = 1
G = 2
G = 5
G = 10
Figure 45. Total Harmonic Distortion + Noise vs. Frequency,
10 Hz to 22 kHz Band-Pass Filter, RL = 2 kΩ
–50
–60
–70
–80
–90
–100
–110
10
100
1k
10k
100k
1M
FREQUENCY (Hz)
G = 1
G = 2
G = 5
G = 10
Figure 46. Total Harmonic Distortion + Noise vs. Frequency,
10 Hz to 500 kHz Band-Pass Filter, RL = 2 kΩ
