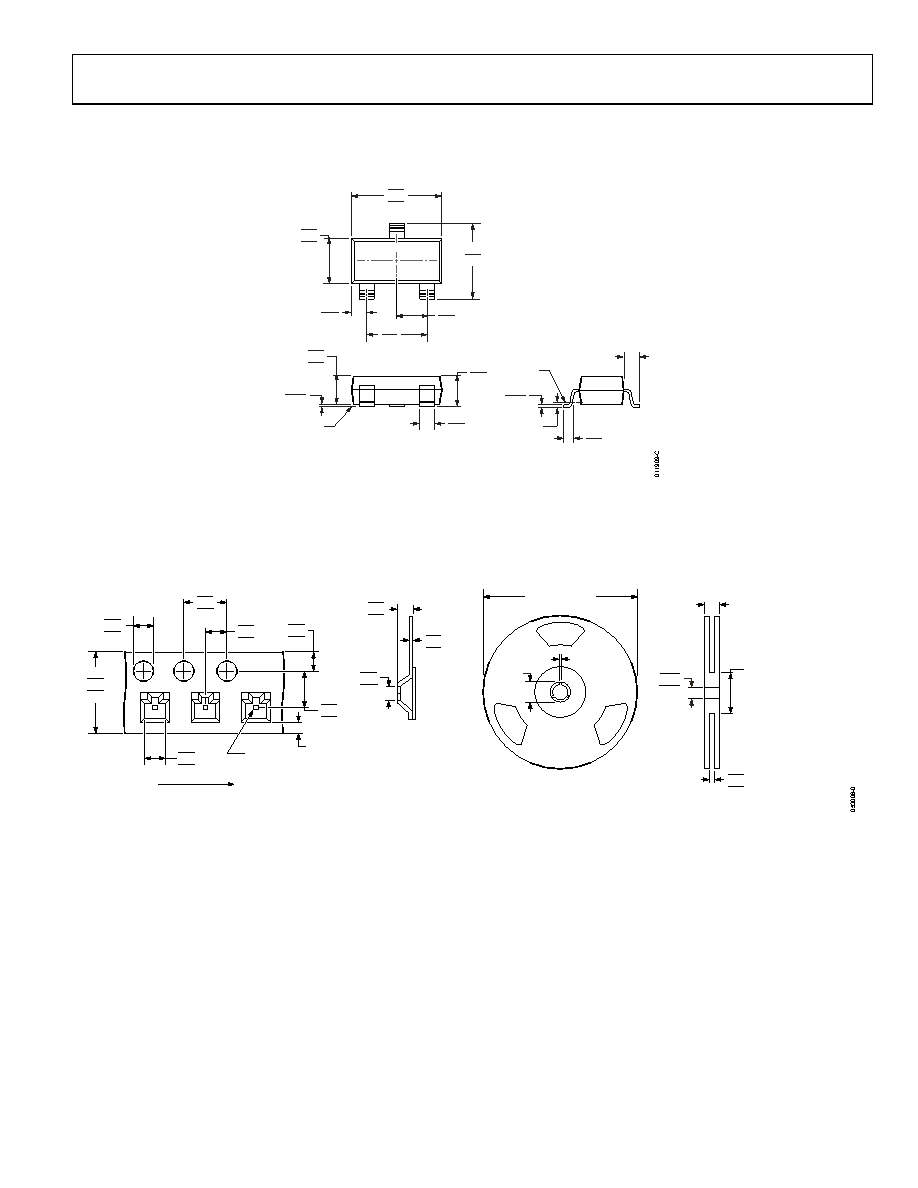

OUTLINE DIMENSIONS

3.04

2.90

2.80

COMPLIANT TO JEDEC STANDARDS TO-236-AB

SEATING

PLANE

2.64

2.10

1.40

1.30

1.20

2.05

1.78

0.100

0.013

1.03

0.89

0.60

0.45

0.51

0.37

1.12

0.89

0.180

0.085

0.25

0.54

REF

GAUGE

PLANE

0.60 MAX

0.30 MIN

1.02

0.95

0.88

Figure 27. 3-Lead Small Outline Transistor Package [SOT-23-3]

(RT-3)

Dimensions shown in millimeters

20.20

MIN

1.00 MIN

0.75 MIN

1.10

1.00

0.90

1.50 MIN

7” REEL 100.00

13” REEL 330.00

7” REEL 50.00 MIN

13” REEL 100.00 MIN

DIRECTION OF UNREELING

0.35

0.30

0.25

2.80

2.70

2.60

1.55

1.50

1.45

4.10

4.00

3.90

1.10

1.00

0.90

2.05

2.00

1.95

8.30

8.00

7.70

3.20

3.10

2.90

3.55

3.50

3.45

13.20

13.00

12.80

14.40 MIN

9.90

8.40

6.90

Figure 28. SOT-23 Tape and Reel Outline Dimension

(RT-3)

Dimensions shown in millimeters
