ALPHA RF MODULES
ALPHA-TX
ALPHA-RX

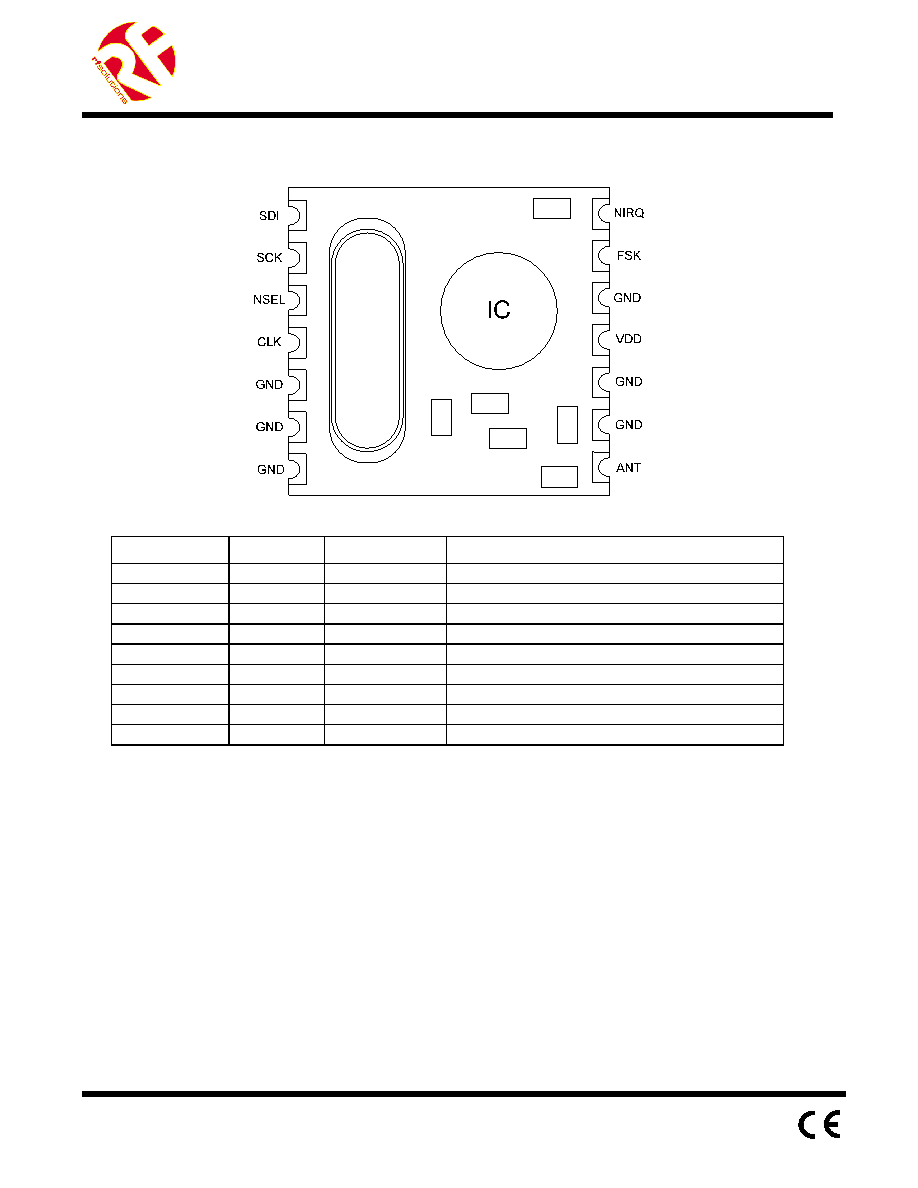

Transmitter Pin Description
Pin
Definition
Direction
Description
13
FSK
IN
FSK Data Input
4
CLK
OUT
Clock out for MCU (1-10MHz)
11
VDD
IN
Positive Power Supply
14
nIRQ
OUT
Interrupt Request Out (Active Low)
1
SDI
IN
SPI Data Input
2
SCK
IN
SPI Clock Input
3
nSEL
IN
Chip select (Active Low)
8
ANT
OUT
Antenna Connection
5-7, 9,10,12
GND
-
Ground Connection
