ADT7320

Data Sheet

Rev. 0 | Page 4 of 24

Parameter

Min

Typ

Max

Unit

Test Conditions/Comments

Shutdown Current

Supply current in shutdown mode

At 3.3 V

2.0

15

µA

At 5.5 V

5.2

25

µA

Power Dissipation, Normal Mode

700

µW

Power Dissipation, 1 SPS Mode

150

µW

1

Accuracy specification includes repeatability.

2

The equivalent 3 σ limits are ±0.15°C. This 3 σ specification is provided to enable comparison with other vendors who use these limits.

3

For higher accuracy at 5 V operation, contact Analog Devices, Inc.

4

Temperature hysteresis does not include repeatability.

5

Based on a floating average of 10 readings.

6

Drift includes solder heat resistance and lifetime test performed as per JEDEC Standard JESD22-A108.

SPI TIMING SPECIFICATIONS

Table 2.

Parameter1, 2

Unit

Descriptions

0

ns min

CS falling edge to SCLK active edge setup time

100

ns min

SCLK high pulse width

100

ns min

SCLK low pulse width

30

ns min

Data setup time prior to SCLK rising edge

25

ns min

Data hold time after SCLK rising edge

5

ns min

Data access time after SCLK falling edge

60

ns max

80

ns max

t73

10

ns min

Bus relinquish time after CS inactive edge

80

ns max

Bus relinquish time after CS inactive edge

0

ns min

SCLK inactive edge to CS rising edge hold time

0

ns min

CS falling edge to DOUT active time

60

ns max

80

ns max

10

ns min

SCLK inactive edge to DOUT low

1

Sample tested during initial release to ensure compliance.

2

See Figure 2.

3

This means that the times quoted in the timing characteristics in Table 2 are the true bus relinquish times of the part and, as such, are independent of external bus

loading capacitances.

CS

SCLK

DIN

DOUT

1

8

7

6

MSB

LSB

2

3

MSB

LSB

9

10

23

24

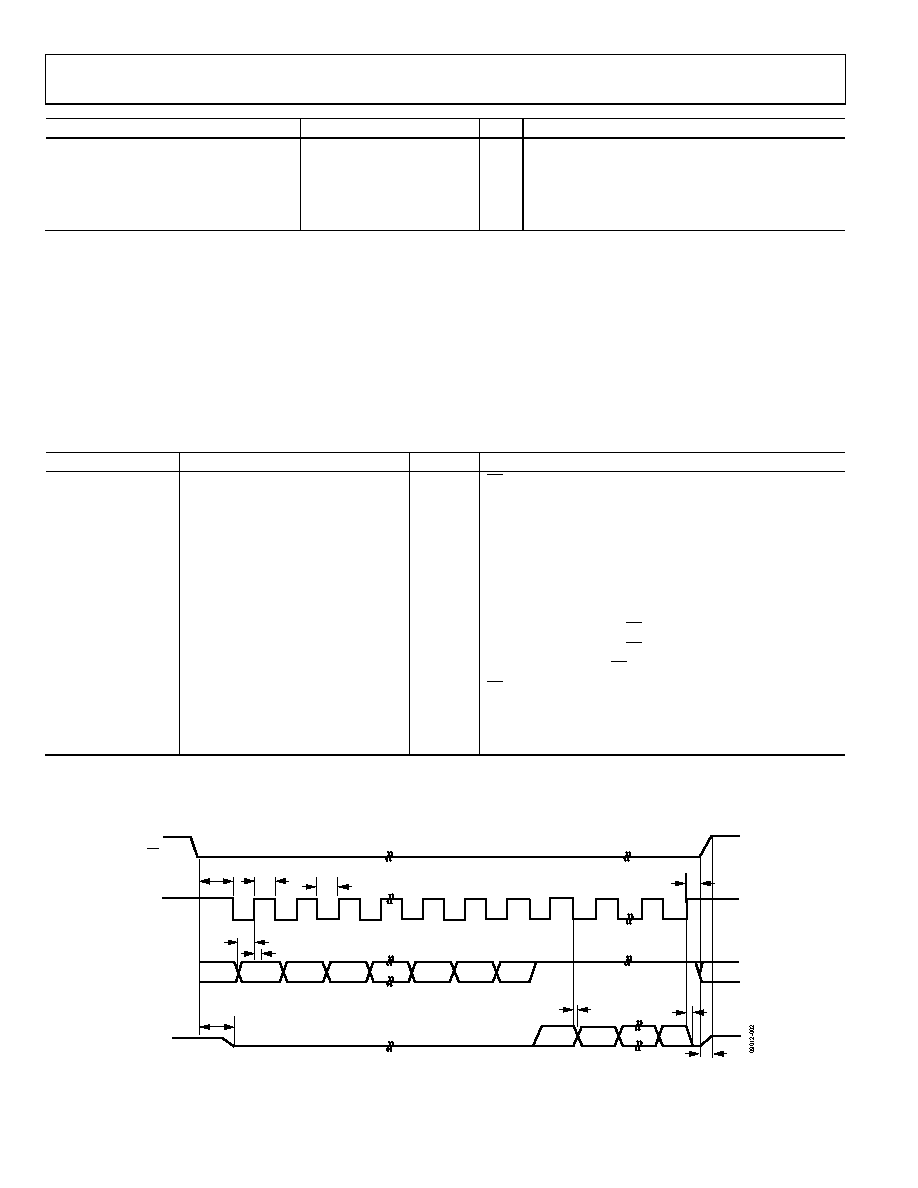

Figure 2. Detailed SPI Timing Diagram
