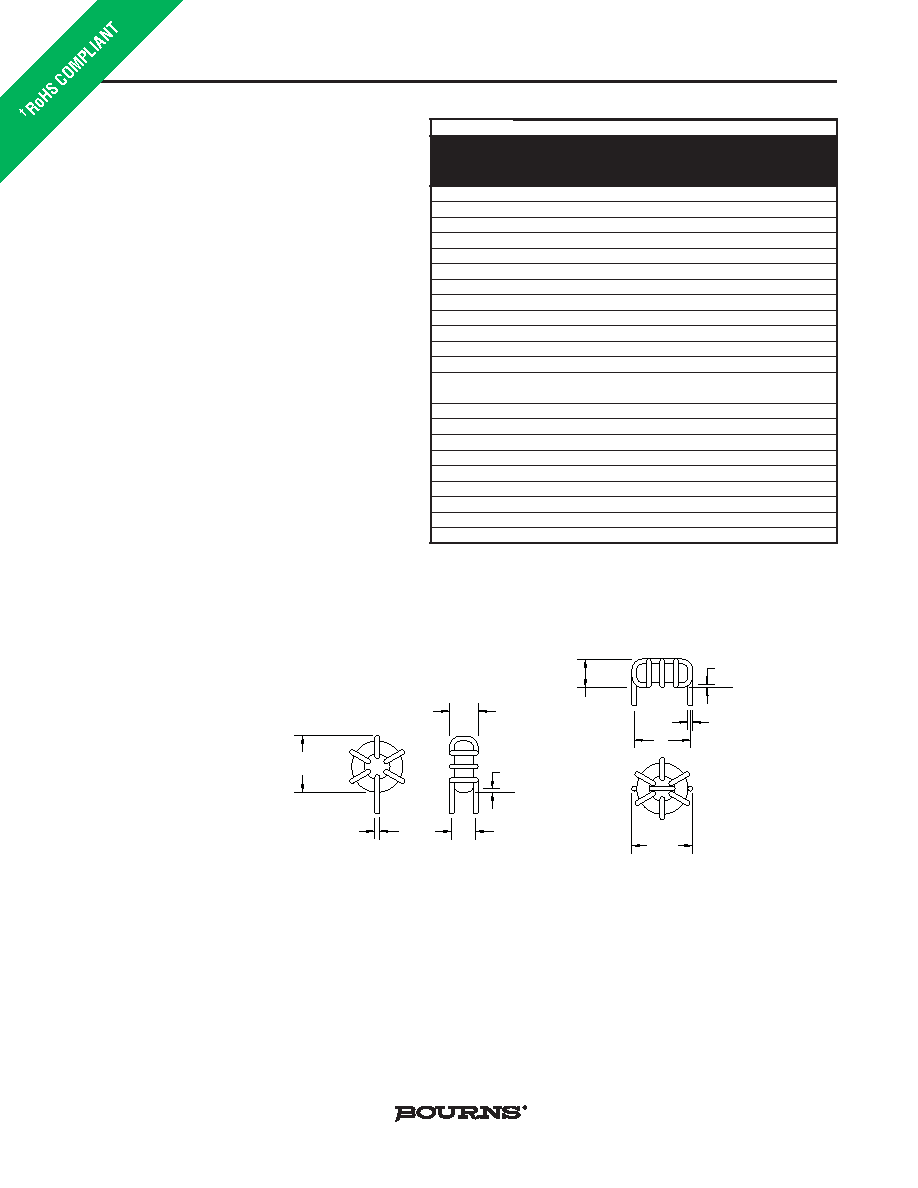

 1 / 1 page
background image
Tel. (877) 426-8767 • Fax (951) 781-5006
www.bourns.com
23.1
High Current Toroid Inductors
Special Features
• Low radiation
• Low core loss
• High operation frequency
• High current capacity
• Low core saturation
• Horizontal or vertical mount
• Operating temperature: -55 to +105 °C
Typical Applications
• High current, low voltage converters
• High-speed computers
• Video game machines
• Output chokes
• EMI filters
Notes
* Rated current to cause 40 °C temperature rise.
** Insert “-H” or “-V” for mounting style before “-RC”.
Example: 2000-390-V-RC
2000 Series
Part
Number
L (µH)
±20 %
@ 1 KHz
Idc*
(A)
L (µH)
±20 %
@ I rated
DCR
Ω
Max.
Dim.
A
Nom.
Dim.
B
Nom.
Dim.
C
Nom.
2000-R3-RC
0.3
28.5
0.24
0.0010
0.35
0.60
0.059
2000-R5-RC
0.5
24.7
0.41
0.0012
0.35
0.60
0.059
2000-R8-RC
0.8
22.1
0.62
0.0014
0.35
0.60
0.059
2000-1R2-RC
1.2
20.2
0.86
0.0017
0.35
0.60
0.059
2000-1R5-RC
1.5
18.7
1.14
0.0020
0.35
0.60
0.059
2000-2R0-RC
2.0
15.6
1.5
0.0027
0.34
0.59
0.053
2000-2R7-RC
2.7
14.7
1.9
0.0030
0.34
0.59
0.053
2000-3R3-RC
3.3
11.1
2.5
0.0053
0.33
0.58
0.042
2000-3R9-RC
3.9
10.5
3.0
0.0059
0.33
0.58
0.042
2000-4R7-RC
4.7
10.1
3.5
0.0064
0.33
0.58
0.042
2000-5R6-RC
5.6
9.7
4.0
0.0069
0.33
0.58
0.042
2000-6R8-RC
6.8
7.2
5.7
0.013
0.31
0.56
0.034
± 15 %
± 15 %
2000-8R2-RC
8.2
7.0
6.4
0.014
0.31
0.56
0.034
2000-100-RC
10
6.6
7.9
0.015
0.31
0.56
0.034
2000-120-RC
12
6.4
8.7
0.016
0.31
0.56
0.034
2000-150-RC
15
4.7
12.4
0.029
0.29
0.53
0.027
2000-180-RC
18
4.5
14.5
0.032
0.29
0.53
0.027
2000-220-RC
22
4.3
16.7
0.035
0.29
0.53
0.027
2000-270-RC
27
4.1
20.4
0.039
0.29
0.53
0.027
2000-330-RC
33
3.5
25.4
0.054
0.29
0.53
0.024
2000-390-RC
39
3.3
29.9
0.059
0.29
0.53
0.024
2000-470-RC
47
3.2
34.6
0.064
0.29
0.53
0.024
REV. 11/09
† RoHS Directive 2002/95/EC Jan 27 2003
including Annex.
Vertical
Dimensions: Inches
Horizontal
0.41 Max.
Max.
A
0.68
0.41 Max.
B
C
C
0.062 Max.
0.68 Max.
0.062 Max.
Mounting plane.
Leads tinned to within
0.062 above
mounting plane.
0.25 lead length.
Mounting plane.
Leads tinned to within
0.062 above
mounting plane.
0.25 lead length.
