E3F2-R2RB41 Datasheet(PDF) 18 Page - Omron Electronics LLC |
|
|
|||||||||||||||||||||||||||||
E3F2-R2RB41 Datasheet(HTML) 18 Page - Omron Electronics LLC |
|
|

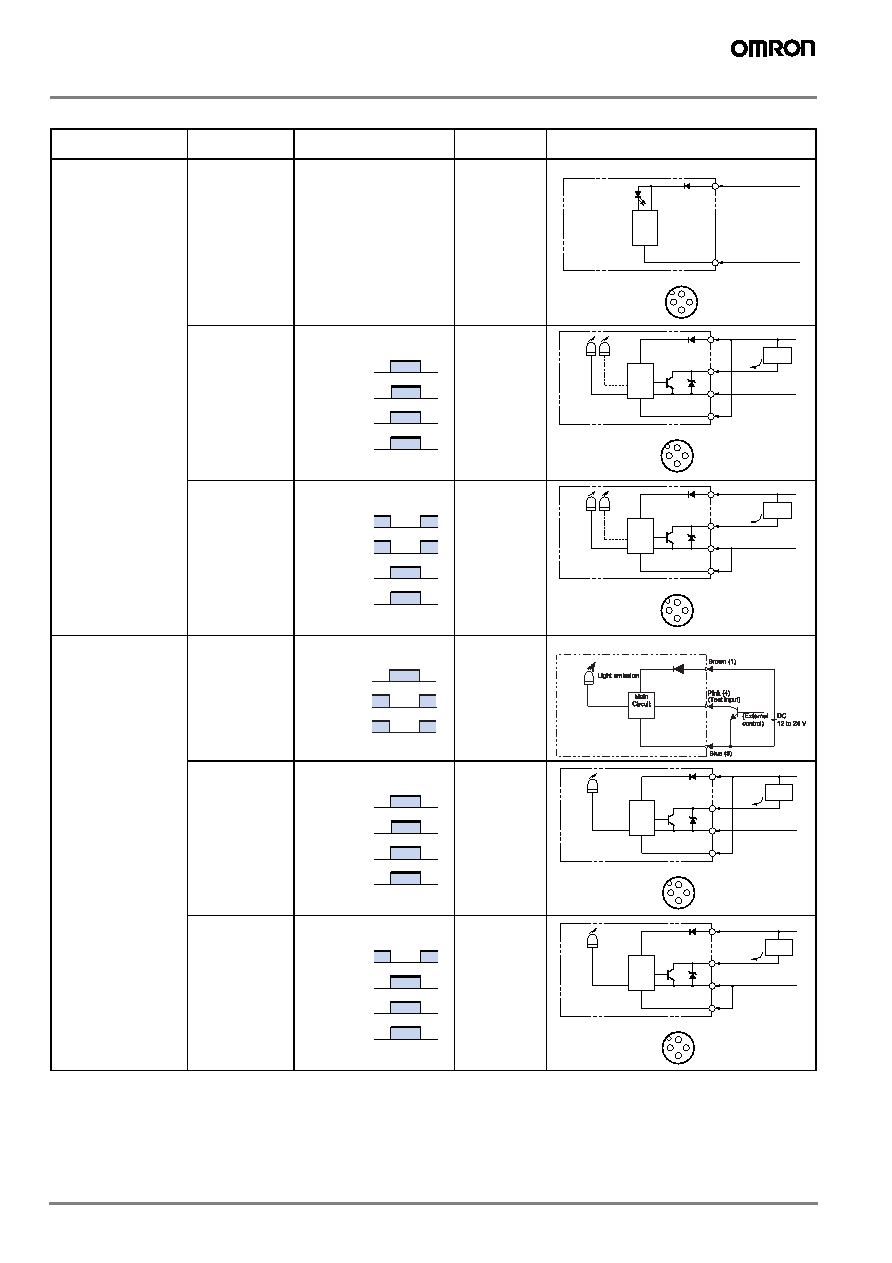

18 / 28 page  18 Photoelectric sensor E3F2 NPN Output Model Output transistor status Timing chart Connection method Output circuit E3F2- @C4-@ (except for E3F2-10C4- @ and E3F2-LS10C4- @) –– Through-beam emitter ON when light is incident. (Light-ON) Connect the pink (Pin ➁) and brown (Pin ➀) cords or open the pink cord (Pin ➁). ON when light is interrupted. (Dark- ON) Connect the pink (Pin ➁) and blue (Pin ➂) cords. E3F2-10C4- @ –– Through-beam emitter ON when light is incident. (Light-ON) Connect the pink (Pin ➁) and brown (Pin ➀) cords or open the pink cord (Pin ➁). ON when light is interrupted. (Dark- ON) Connect the pink (Pin ➁) and blue (Pin ➂) cords. Main circuit 1 2 3 4 1 3 Connector Pin Arrangement 10 to 30 VDC 0 V Brown Blue Power indicator (red) Incident Interrupted ON OFF ON OFF Operate Release Output indicator (red) Output transistor Load (relay) Output indicator Red Main circuit 1 2 3 4 1 2 3 4 Connector Pin Arrangement 10 to 30 VDC 100 mA max. Load 0 V Mode selection Brown Black Blue Pink ZD: VZ = 36 V Stability indicator* Green * Only on models E3F2-R4C4- @ and E3F2-D1C4- @ Incident Interrupted ON OFF ON OFF Operate Release Output indicator (red) Output transistor Load (relay) Output indicator Red Main circuit 1 2 3 4 1 2 3 4 Connector Pin Arrangement 10 to 30 VDC 100 mA max. Load 0 V Mode selection Brown Black Blue Pink ZD: VZ = 36 V Stability indicator* Green * Only on models E3F2-R4C4- @ and E3F2-D1C4- @ ON OFF ON OFF ON OFF Test input Light emission Indicator Red Incident Interrupted ON OFF ON OFF Operate Release Output indicator (red) Output transistor Load (relay) Light indicator Orange Main circuit 1 2 3 4 1 2 3 4 Connector Pin Arrangement 10 to 30 VDC 100 mA max. Load 0 V Mode selection Brown Black Blue Pink ZD: VZ = 36 V Incident Interrupted ON OFF ON OFF Operate Release Output indicator (orange) Output transistor Load (relay) Light indicator Orange Main circuit 1 2 3 4 1 2 3 4 Connector Pin Arrangement 10 to 30 VDC 100 mA max. Load 0 V Mode selection Brown Black Blue Pink ZD: VZ = 36 V |
|
