ADP3605

Data Sheet

Rev. B | Page 12 of 12

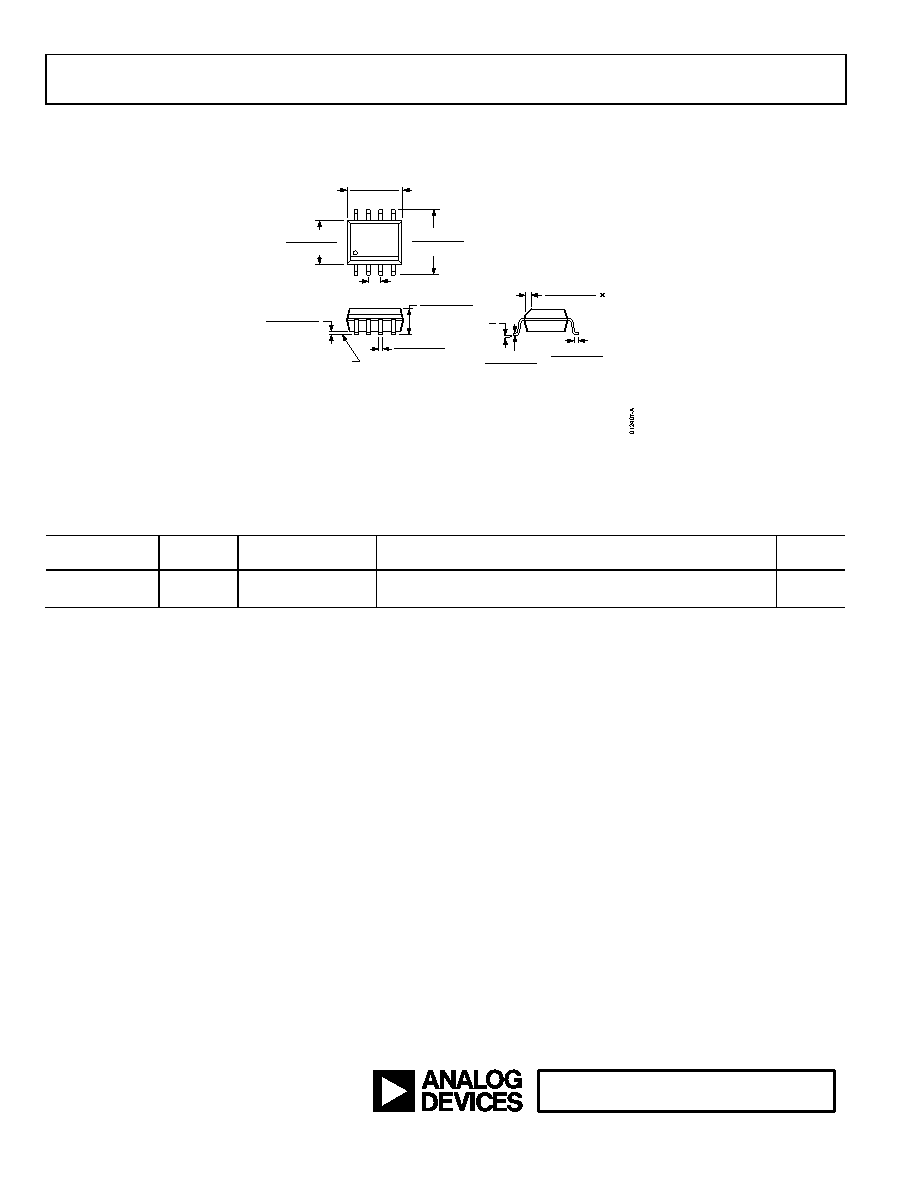

OUTLINE DIMENSIONS

Figure 19. 8-LeadStandard Small Outline Package [SOIC_N]

(R-8)

Dimensions shown in millimeters and (inches)

ORDERING GUIDE

Model1

Output

Voltage

Temperature Range

Package Description

Package

Option

ADP3605ARZ

Adjustable

−40°C to +85°C

8-Lead Standard Small Outline Package [SOIC_N], Tube

R-8

ADP3605ARZ-R7

Adjustable

−40°C to +85°C

8-Lead Standard Small Outline Package [SOIC_N], 7” Tape and Reel

R-8

1

Z = RoHS Compliant Part.

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

4

1

8

5

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

©1998–2012 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

D11135-0-12/12(B)
