MAS3690FE Datasheet(PDF) 26 Page - Dynex Semiconductor

No. de pieza MAS3690FE
Descripción Electrónicos  1553B Bus Controller/Remote Terminal
PDF  41 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  DYNEX [Dynex Semiconductor]
Página de inicio  http://www.dynexsemi.com
Logo DYNEX - Dynex Semiconductor

MAS3690FE Datasheet(HTML) 26 Page - Dynex Semiconductor

Back Button MAS3690FE Datasheet HTML 22Page - Dynex Semiconductor MAS3690FE Datasheet HTML 23Page - Dynex Semiconductor MAS3690FE Datasheet HTML 24Page - Dynex Semiconductor MAS3690FE Datasheet HTML 25Page - Dynex Semiconductor MAS3690FE Datasheet HTML 26Page - Dynex Semiconductor MAS3690FE Datasheet HTML 27Page - Dynex Semiconductor MAS3690FE Datasheet HTML 28Page - Dynex Semiconductor MAS3690FE Datasheet HTML 29Page - Dynex Semiconductor MAS3690FE Datasheet HTML 30Page - Dynex Semiconductor Next Button
Zoom Inzoom in Zoom Outzoom out
 26 / 41 page
background image
MA3690/1/3
26/41

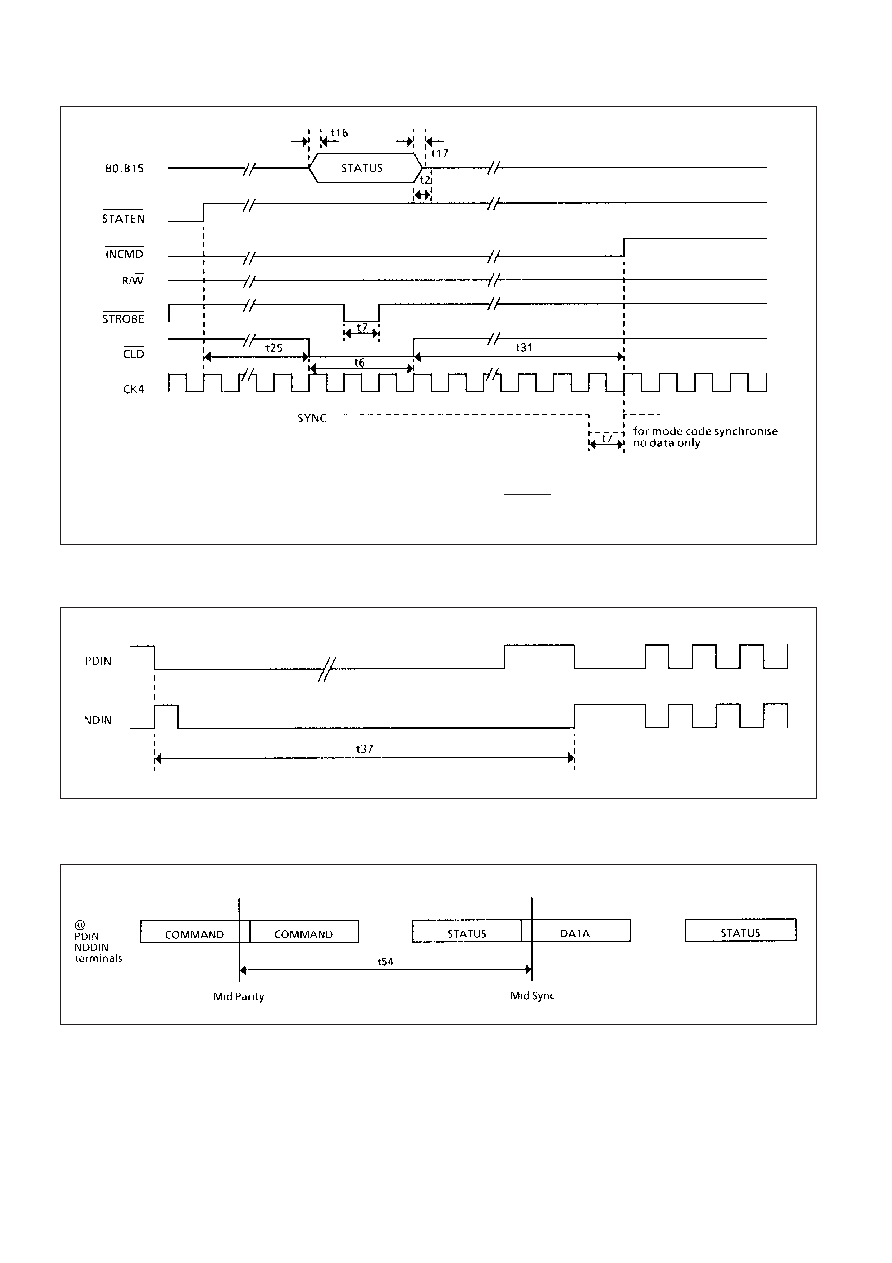

Figure 28: Mode Command No Data (TIR)
Note: 1. SYNC m/c.
2. Self test m/c - takes 668
µs from end of Status transmission on 1553 Bus.
3. Reset m/c/ - Reset pulse 3 x CK4 after TXCN
↑ this prevents ABORT pulse following this command and fires
EOT high and remains high.
Figure 29: Remote Terminal Response Time
Figure 30: RT-RT Validation Timeout
