ICS8525
LOW SKEW, 1-TO-4
LVCMOS-TO-LVHSTL FANOUT BUFFER

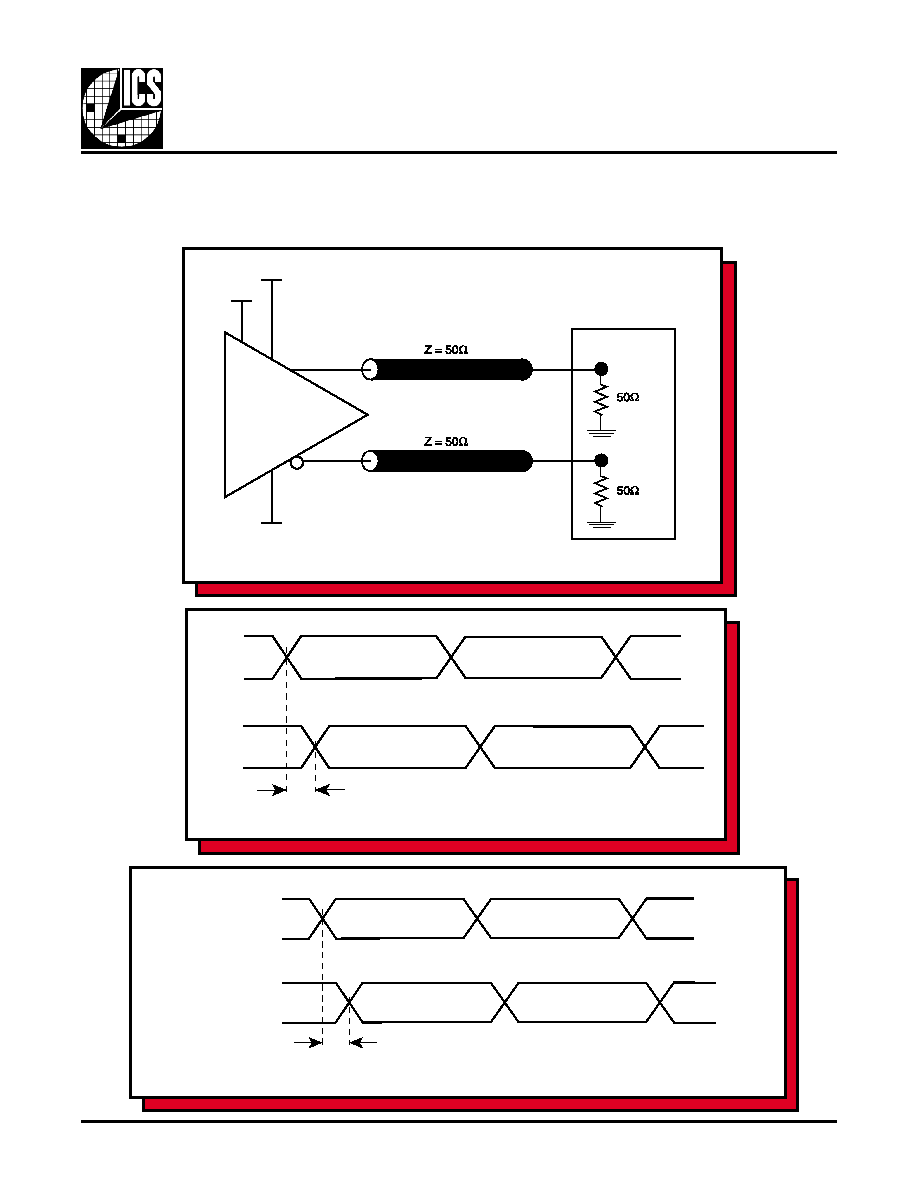

FIGURE 2 - OUTPUT LOAD TEST CIRCUIT
PARAMETER MEASUREMENT INFORMATION
FIGURE 3 - OUTPUT SKEW
SCOPE
LVHSTL
Qx
nQx
V
DD
V
DDO
V
DD = 3.3V ± 5%
tsk(o)
Qx
nQx
Qy
nQy
V
DDO = 1.8V ± 0.2V
GND = 0V
Qx
nQx
Qy
nQy
PART 1
PART 2
tsk(pp)
FIGURE 4 - PART-TO-PART SKEW
