AB420-R Datasheet(PDF) 1 Page - Assmann Electronics Inc.

No. de pieza AB420-R
Descripción Electrónicos  Mini Gender Changer
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  ASSMANN [Assmann Electronics Inc.]
Página de inicio  http://www.assmann.us
Logo ASSMANN - Assmann Electronics Inc.

AB420-R Datasheet(HTML) 1 Page - Assmann Electronics Inc.

  AB420-R Datasheet HTML 1Page - Assmann Electronics Inc.
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
1
2
3
4
5
6
7
1
2
3
4
5
6
7
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H
Item No.
Drawing No.
Title
Name
Chappell
Drawn
11.22.11
Approved
Modification
Date
Name
Scale
TOLERANCE
1:1
X.X
X.XX
X.XXX
Angle
±0.40
±0.25
±0.15
±3°
Replace
Sheet

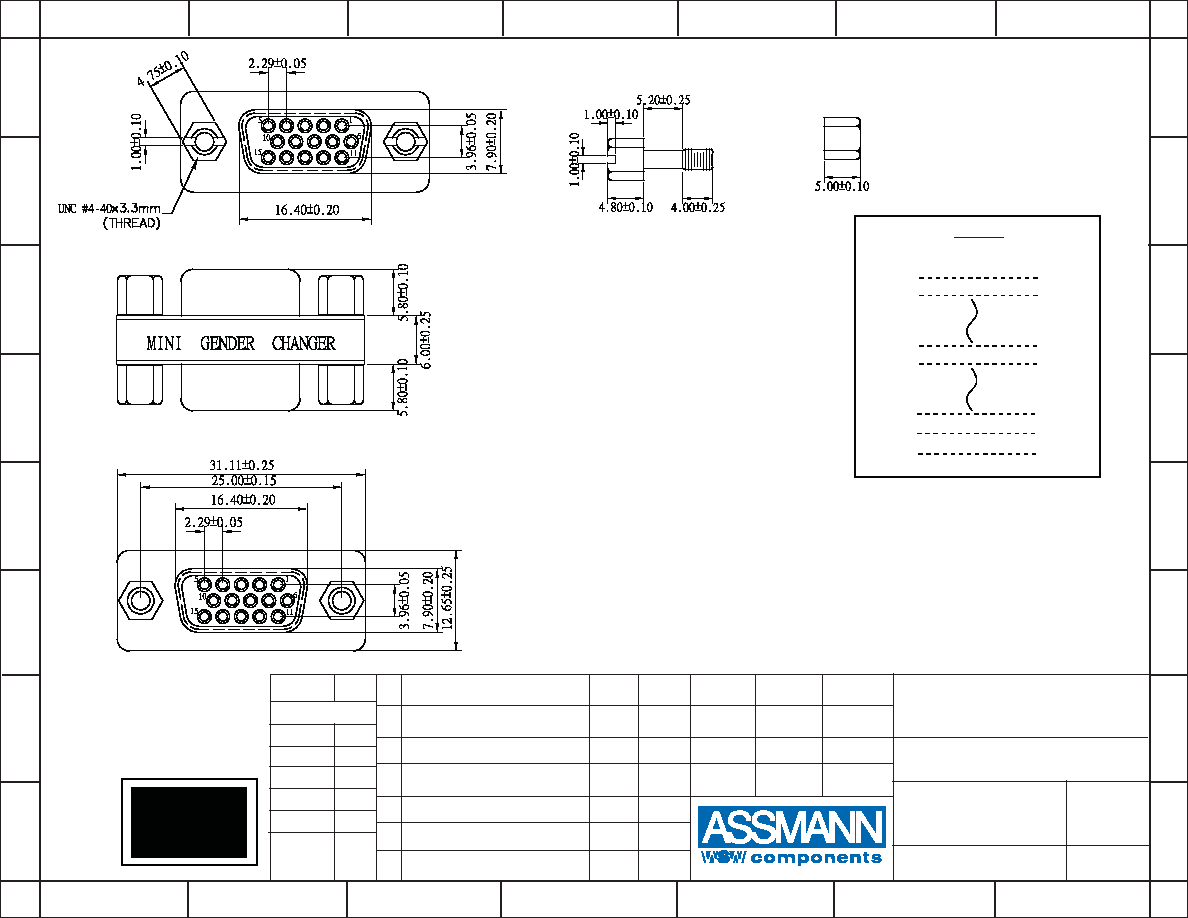

AB420-R
Mini Gender Changer -
HD D-Sub 15 Pin Female <=> HD
D-Sub 15 Pin Female
Complaint
RoHS
rev00
Unit: MM
Material:
• Insulator: PBT Glass fibre reinforced UL 94 V0
• Contact: Brass
• Contact plating: Gold plated over nickel
• Shell: Tin plated shell
• Yellow label with black characters
UNC #4-40 Hexscrew
UNC #4-40 Hexnut
15P-Female
1
2
8
10
14
15
G
15P-Female
1
2
8
10
14
15
G
Pin Out
