NJG1553BF
- 7 -

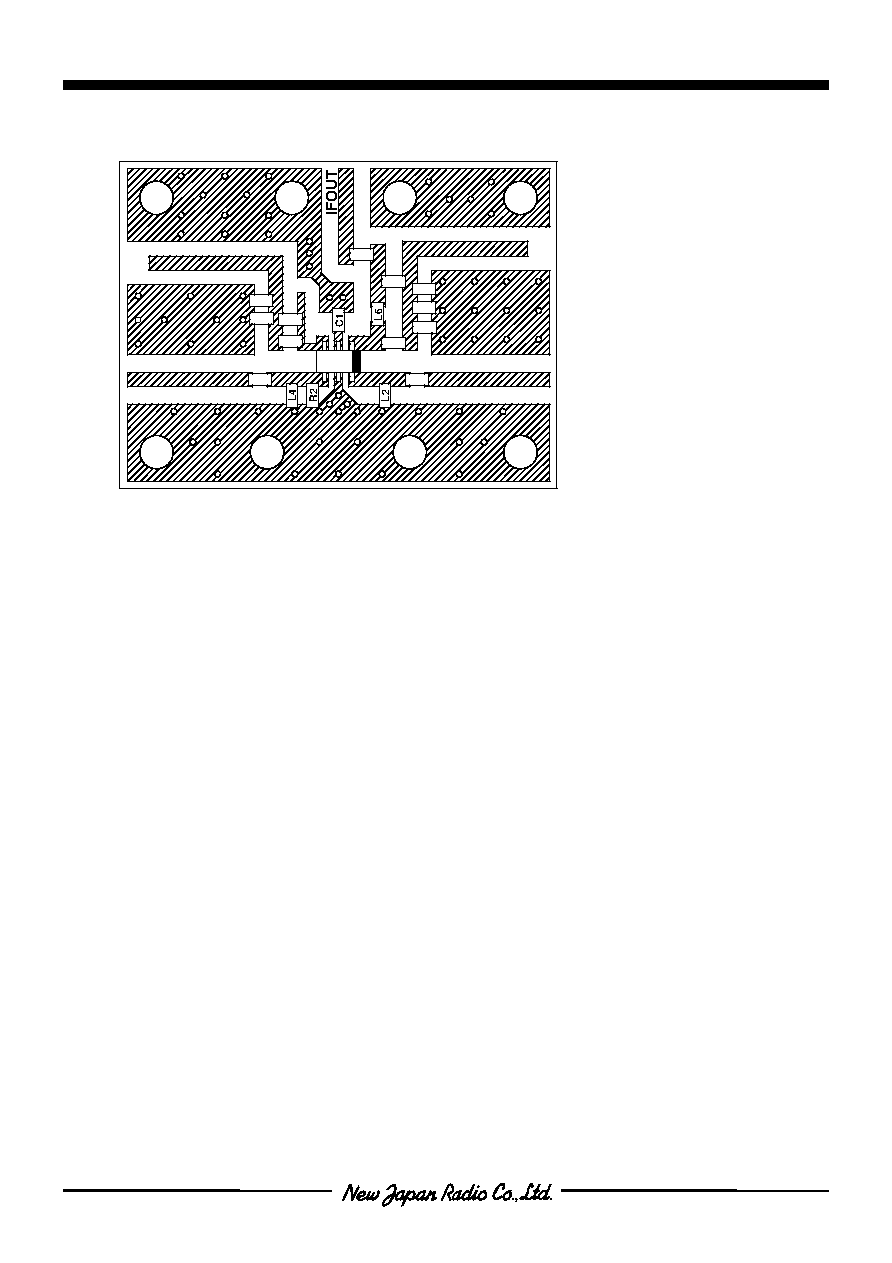

nRECOMMENDED PCB DESIGN
PRECAUTIONS
[1]
Please place a inductor L1 at about 3.5mm distance from RFIN terminal (Pin #6).
[2]
Please place a inductor L3 at about 3.5mm distance from LOIN terminal (Pin #4).
[3]
Please place a capacitor C1 close to by-pass capacitor terminal (Pin #2).
[4]
Please place capacitors C6, C7, C8 close to C2.
[5]
Please place capacitors C3, C4 close to R1 and L5.
C4
C3
R1
L5
C5
C8
C7
C6
L7
C2
L3
L1
LOIN
VLO
RFIN
VMIX
NJG1553BF
PCB: FR-4 t=0.5mm
Microstrip Line Width=1mm
PCB Size: 22.5x30.0mm
