Output Adjustment

The REF01 trim terminal can be used to adjust the volt-

age over a 10V±300mV range. This feature allows the

system designer to trim system errors by setting the ref-

erence to a voltage other than 10V, including 10.240V

for binary applications (see the Typical Operating

Circuit section).

Adjustment of the output does not significantly affect

the temperature performance of the device. The tem-

perature coefficient change is approximately

0.7ppm/°C for 100mV of output adjustment.

+5V, +10V Precision

Voltage References

_______________________________________________________________________________________

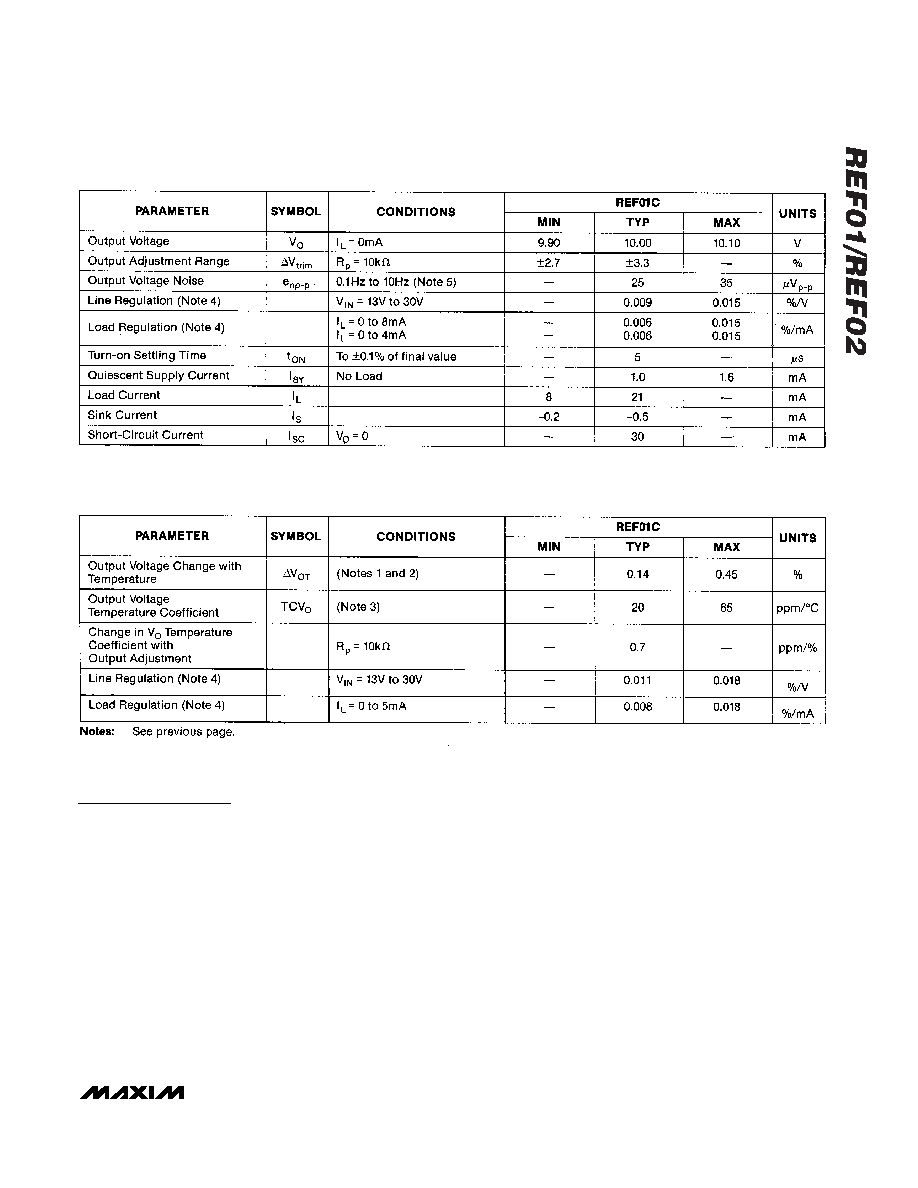

ELECTRICAL CHARACTERISTICS—REF01

(VIN = +15V, TA = TMIN to TMAX, unless otherwise noted.)

ELECTRICAL CHARACTERISTICS—REF01 (continued)

(VIN = +15V, TA = +25°C, unless otherwise noted.)
