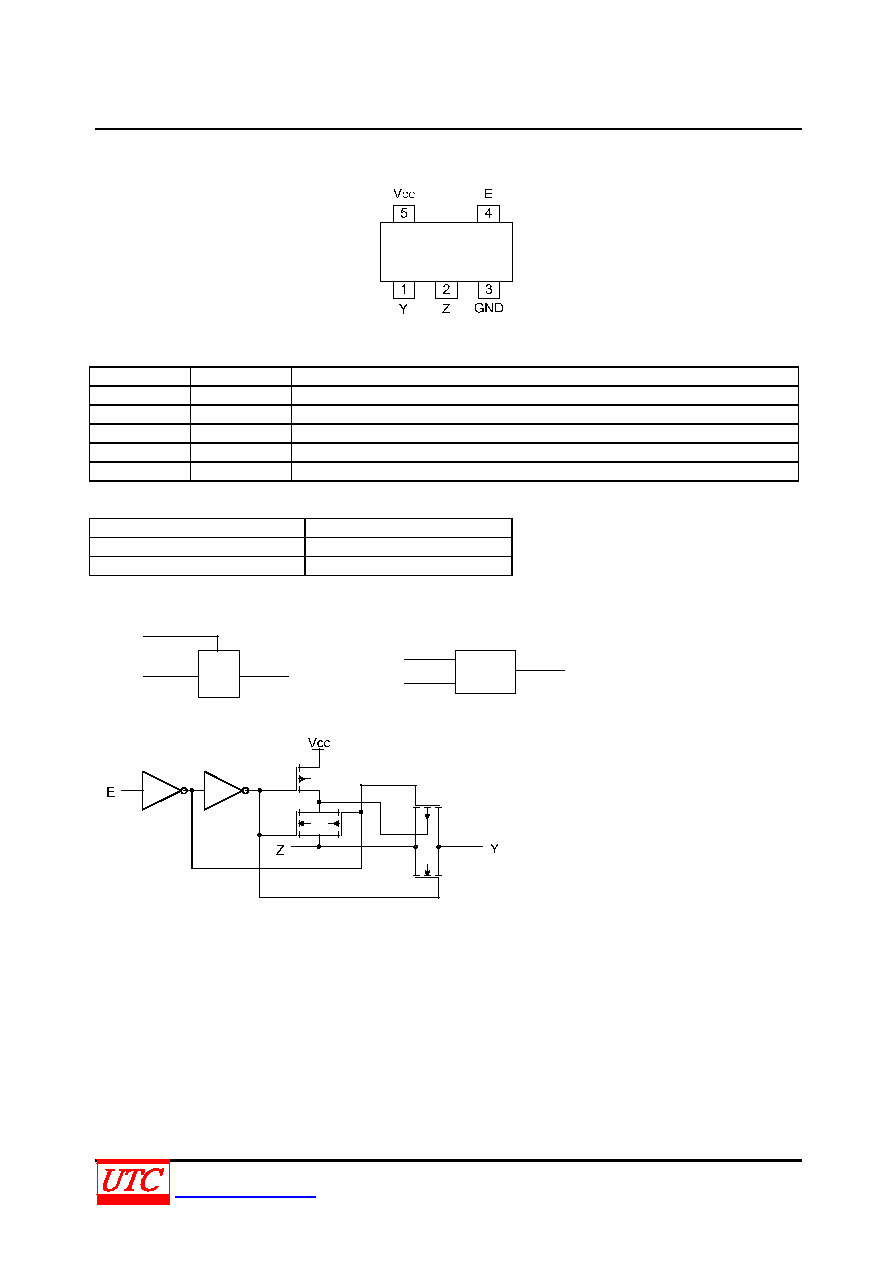

U74AHC1G66
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 7
www.unisonic.com.tw
QW-R502-098.D
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
SYMBOL
DESCRIPTION
1
Y
independent input/output
2
Z
independent output/input
3
GND
ground
4
E
enable input
5
VCC
supply voltage
FUNCTION TABLE (each gate)
INPUT E
SWITCH
H
ON
L
OFF
LOGIC DIAGRAM (positive logic)
Z
Y
E
Z
Y
E
1
4
2
1
4 #
2
1
1
X1
1
X1
1
