ACE7331M
P-Channel 30-V MOSFET
VER 1.1
4

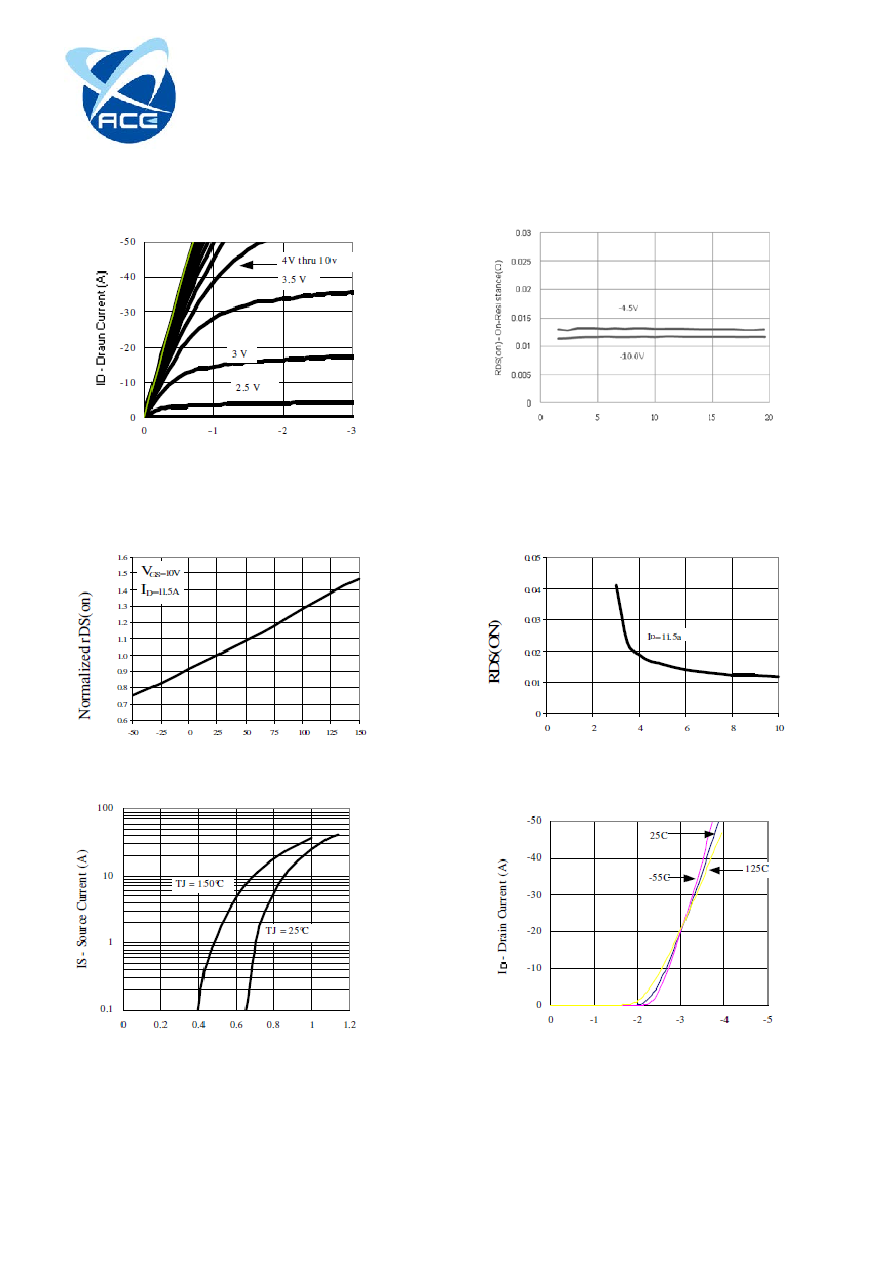

Typical Performance Characteristics
VDS - Gate-to-Source Voltage (V)
ID-Drain Current (A)ace
1.On-Resistance Characteristics
2. On-Resistance Variation with
Drain Current and Gate Voltage
TJ –Junction Temperature(°C)
VGS - Gate-to-Source Voltage (V)
3. On-Resistance vs. Variation with Temperature
4. On-Resistance vs with Gate to Source Voltage
VDS - Source to Drain Current (V)
VGS- Gate to Source Voltage (V)
5. Transfer Characteristics
6.Body Diode Forward Voltage Variation with
source Current and Temperature
