GT14-2P/S-R Datasheet(PDF) 5 Page - Hirose Electric

No. de pieza GT14-2P/S-R
Descripción Electrónicos  Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
PDF  6 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrónico  HIROSE [Hirose Electric]
Página de inicio  http://www.hirose-connectors.com
Logo HIROSE - Hirose Electric

GT14-2P/S-R Datasheet(HTML) 5 Page - Hirose Electric

  GT14-2P/S-R Datasheet HTML 1Page - Hirose Electric GT14-2P/S-R Datasheet HTML 2Page - Hirose Electric GT14-2P/S-R Datasheet HTML 3Page - Hirose Electric GT14-2P/S-R Datasheet HTML 4Page - Hirose Electric GT14-2P/S-R Datasheet HTML 5Page - Hirose Electric GT14-2P/S-R Datasheet HTML 6Page - Hirose Electric
Zoom Inzoom in Zoom Outzoom out

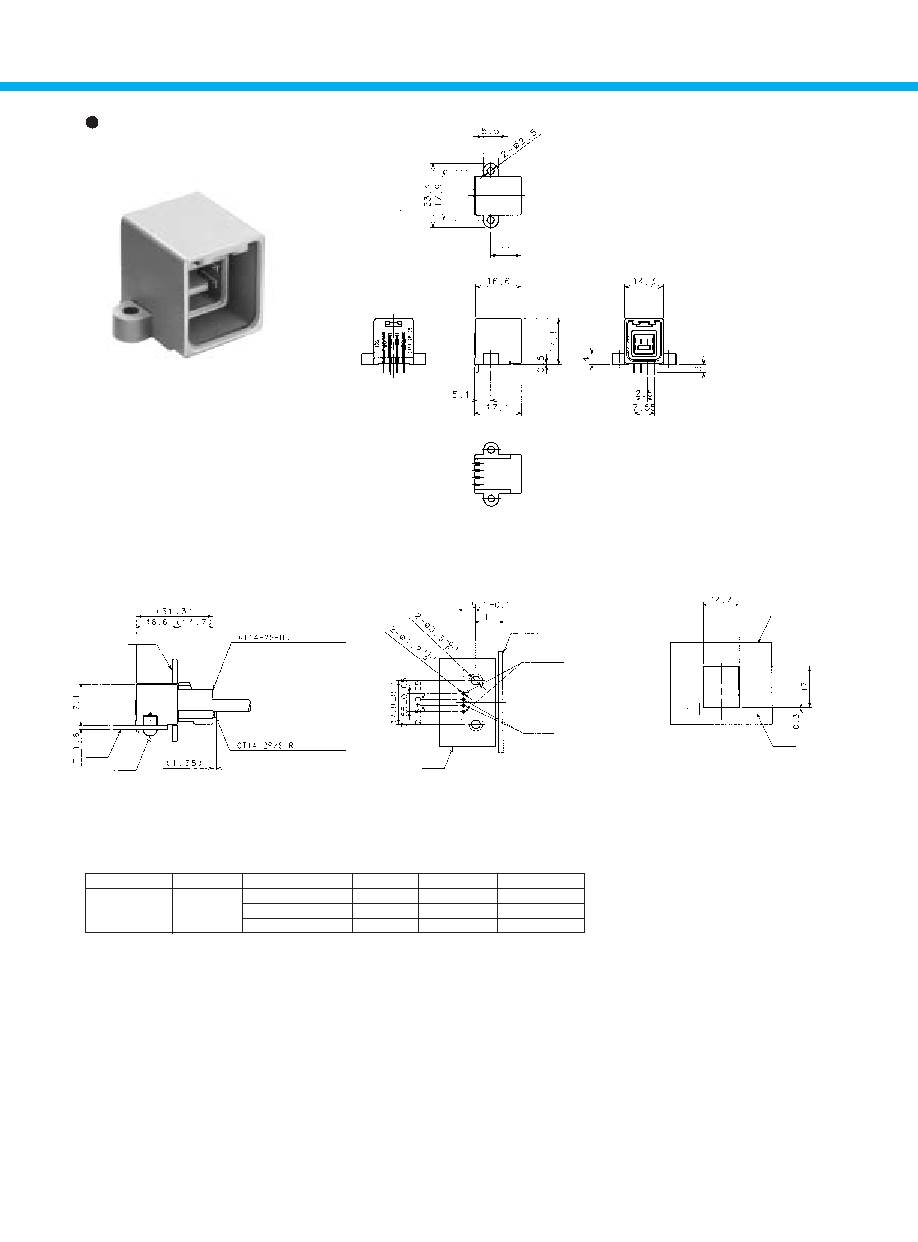

 5 / 6 page
background image
5
BRecommended PCB Mounting Pattern
BFully mated connector assemblies
BRecommended Panel Cut-out
Part Number
CL No.
Item
Material
Finish
Color
Housing
PBT
----
Light gray
GT14-2P-DS
764-0011-3
Signal Terminal
Brass
Tin plating
----
Outer Terminal
Copper alloy
Tin plating
----
Use mounting screw of M3 with nominal diameter 3L-6 (for a board thickness of 1.6mm)
Printed Circuit Board Type
Panel
(Housing)
(Retainer)
Board
Panel
Grounding
Signal
Board
Panel
Board
