A277

1. Recommended Temperature Profile (SMT)

2. Recommended Manual Soldering Condition (SMT)

3. Recommended Screen Thickness (SMT)

4. Board Warp age (SMT)

5. Recommended Soldering Condition(Through hole)

6. Cleaning Condition

7. Connection Condition

Note1: Maximum twice action is allowed under the same condition. However, the interval between

first and second actions must be maintained at the room temperature.

Note2: The temperature indicates the board surface temperature in the connector lead area.

Soldering iron temperature: 290±10ç, Soldering time: Within 2 seconds

0.15 to 0.2mm

Based on the both connector edges, 0.03mm max. is allowed in the connector center area.

Flow: 250ç for 3 seconds

Manual soldering: 290ç for 2 seconds

Refer to the "Nylon Connector Use Hand book".

Refer to the "Nylon Connector Use Hand book".

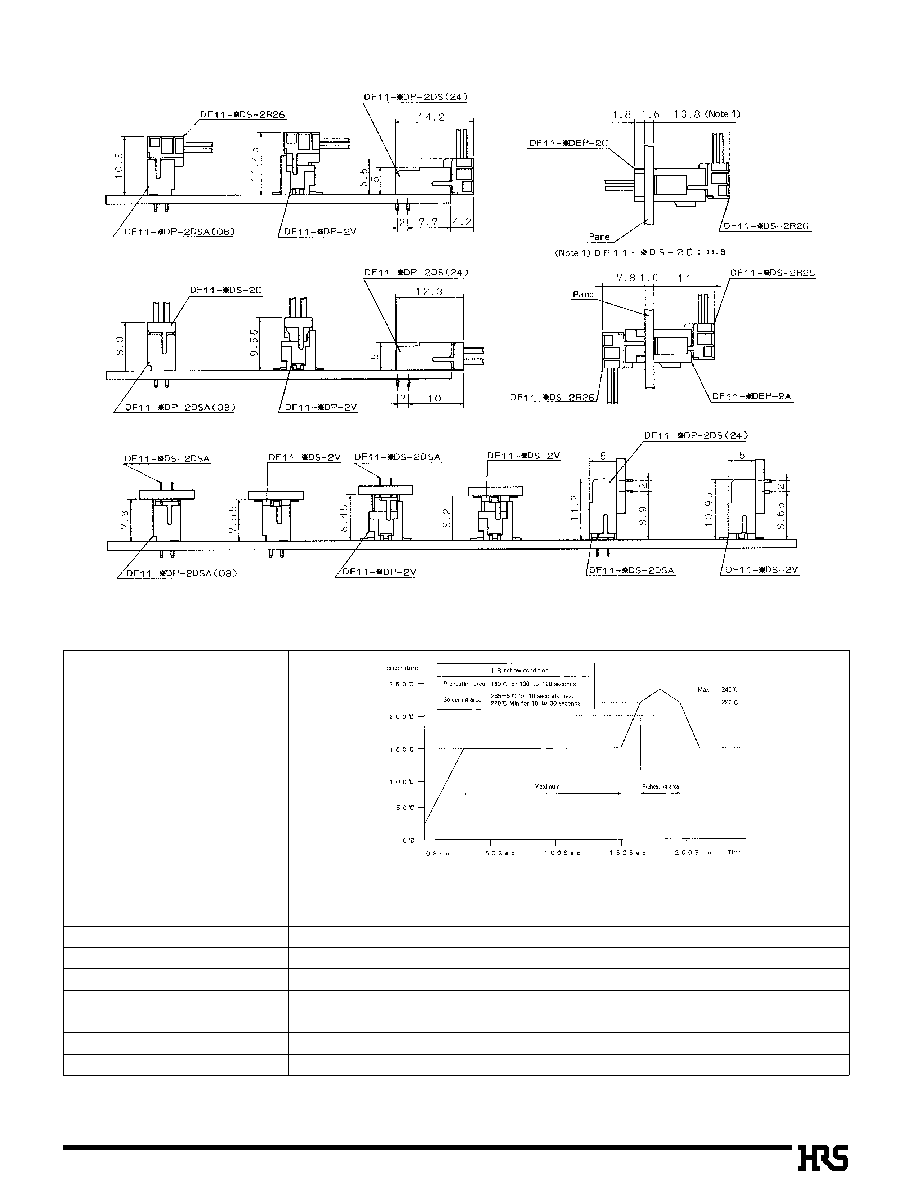

BApplication Pattern

BPrecautions
