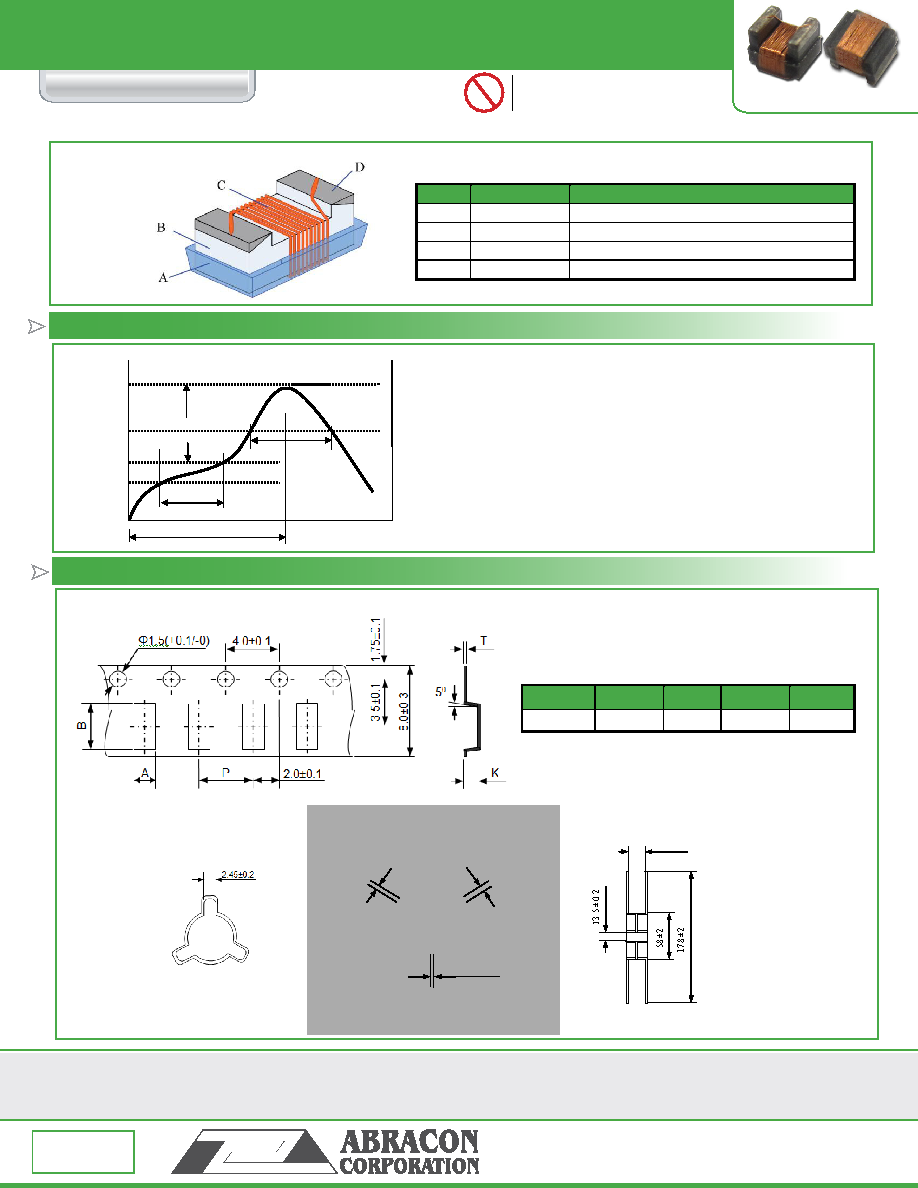

Materials

No.

Components

Material

Coating

Ultraviolet epoxy resin

Core

Ferrite

Wire

Polyurethane system enameled copper wire

Electrodes

Ag-Pd with Ni and Sn plating

FERRITE WIRE WOUND INDUCTORS

AISC-0603F

1.6 x 1.0 x 1.0mm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001 :2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California92688

tel 949-546-8000 | fax 949-546-8001| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

Revised: 10.11.13

Pb RoHS/RoHS II Compliant

• Preheat condition: 150 ~200oC/60~120sec.

• Allowed time above 217 oC: 60~90sec.

• Max temp: 260 oC

• Max time at max temp: 10sec.

• Solder paste: Sn/3.0Ag/0.5Cu

• Allowed Reflow time: 2x max

260ºC

∼90sec .

∼120sec .

150 ºC

200 ºC

217 ºC

Max Ramp Up Rate=3 º

C/sec .

Max Ramp Down Rate=6 º

C/sec .

Time 25 ºC to Peak =8 min max

25ºC

Peak 260 ºC max

REFLOW PROFILE:

T= tape and reel (3,000pcs/reel)

Dimension: mm

1.20±0.05

1.85±0.05

4.0±0.1

1.02±0.05

0.23±0.05

5.0 ±0.1

3.0 ±0.1

4.0±0.1

10±1.5

TAPE & REEL:

ATTENTION: Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.

Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component

failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from

Abracon Corporation is required. Please contact Abracon Corporation for more information.
