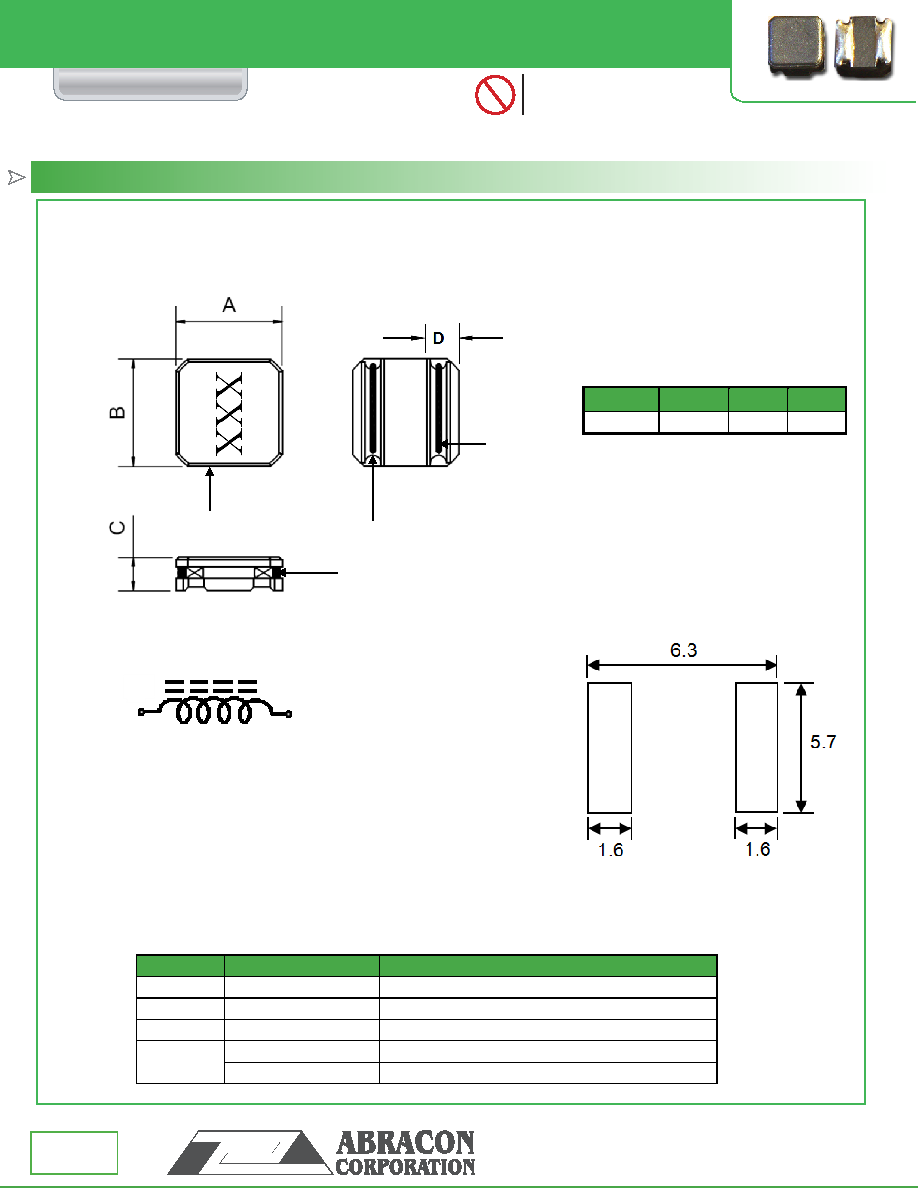

OUTLINE DRAWING:
ASPI-0615FS
30332 Esperanza, Rancho Santa Margarita, California92688
tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
Revised: 02.04.13
Visit www.abracon.com for Terms & Conditions of Sale
6.0 x 6.0 x 2.0mm
ABRACON IS
ISO9001:2008
CERTIFIED
LOW PROFILE SHIELDED SMD CHIP POWER INDUCTOR
Recommended Land Pattern
No Polarity
Dimension: mm
Material
No
Part Name
Material
1
Ferrite core
Ni-Zn Ferrite
2
Terminals
Ag/Ni/Sn
3
Coil
Cu/P180 Grd 1
4
Adhesive
Silicon Base Resin
Magnetic Powder Ni-Zn Ferrite
A
B
C
D Typ.
6.0±0.2
6.0±0.2
2.0±0.2
1.50
Circuit Schematic
1
2
3
4
Mechanical Dimensions (Effective date: 2/15/2012)
Please contact Abracon for products purchased before effective date. Package outline is different due to core material change.
Pb RoHS/RoHS II Compliant
