Bottom View

Top View

16.95max.

0.25

11.40

0.60

0.50±0.05

15.24

4.10

2.54 x 11

14.40

32.35

16.10

12

11

10

9

8

2

1

24 23

17 16 15 14 13

Single & Dual Output

24 23

17 16 15 14 13

12

11

10

9

8

2

1

RECOM

RV-0505D/R6.4

****

2.2

2.54

2.54

1.0ø+0.15/–0

ECONOLINE

DC/DC-Converter

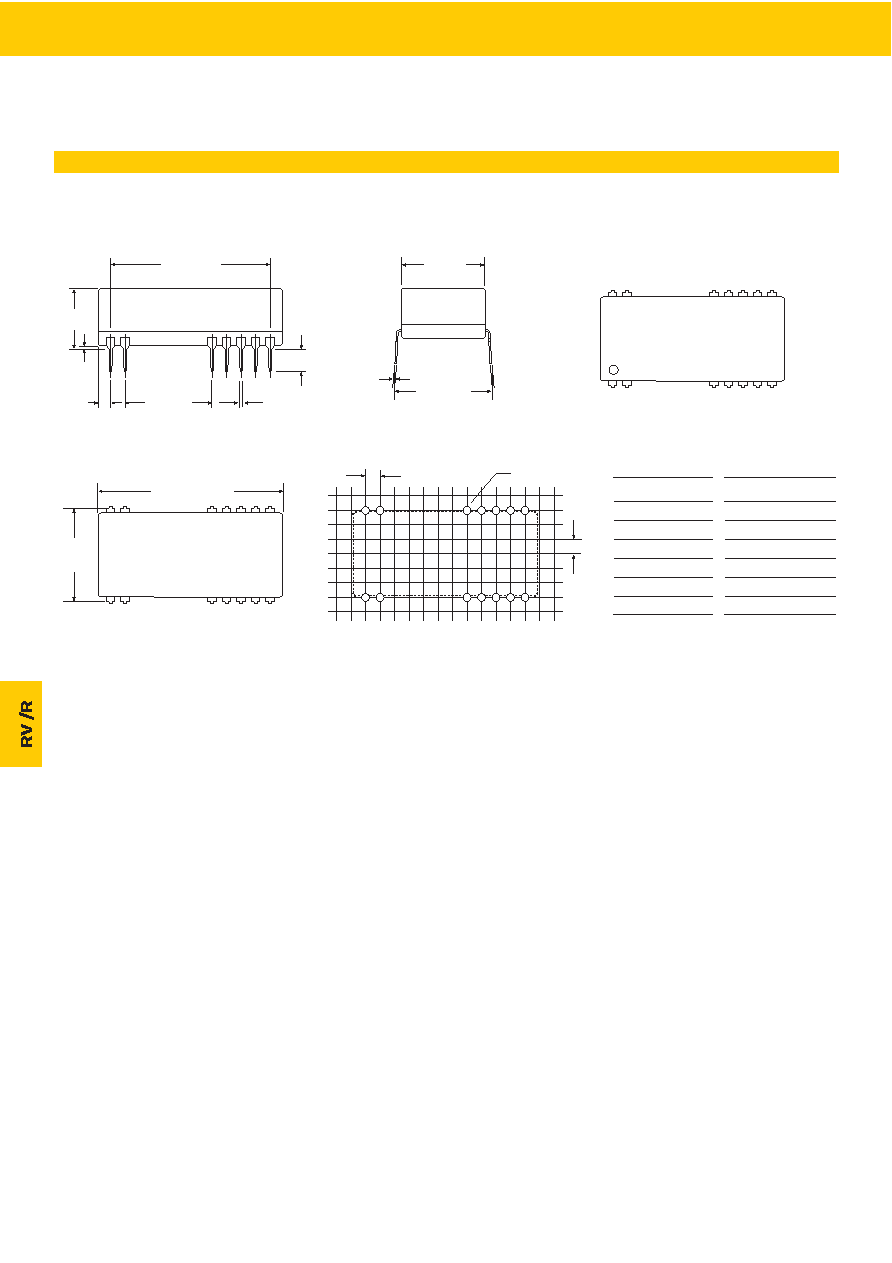

Package Style and Pinning (mm)

24 PIN DIP Miniature Package Style

Pin Connections

Pin #

Single

1

+Vin

2

-Vin

8, 9, 11, 14

NC

10, 15

-Vout

12 & 13

+Vout

16, 17, 23, 24

NC

NC = No Connection

Pin Connections

Pin #

Dual

1

+Vin

2

-Vin

8, 17

-Vout

9, 11, 14,16, 23, 24

NC

10 & 15

Com

12, 13

+Vout

NC = No Connection

Recommended Footprint Details

XX.X ± 0.5 mm

XX.XX ± 0.25 mm

RV/R

Series
