PL502-02

Low Phase Noise VCXO (24MHz to 50MHz)

6. Crystal Specifications

PARAMETERS

SYMBOL

MIN.

TYP.

MAX.

UNITS

Crystal Resonator Frequency

12

25

MHz

Crystal Loading Capacitance Rating

9.5

pF

C0/C1

250

-

ESR

30

Ω

Note: Crystal Loading rating: 9.5pF is the loading the crystal sees from the VCXO chip at VCON = 1.65V. It is assumed that the cr ystal will be at nomi-

nal frequency at this load. If the crystal requires more load to be at nominal frequency, the additiona l load must be added externally.

This however may reduce the pull range.

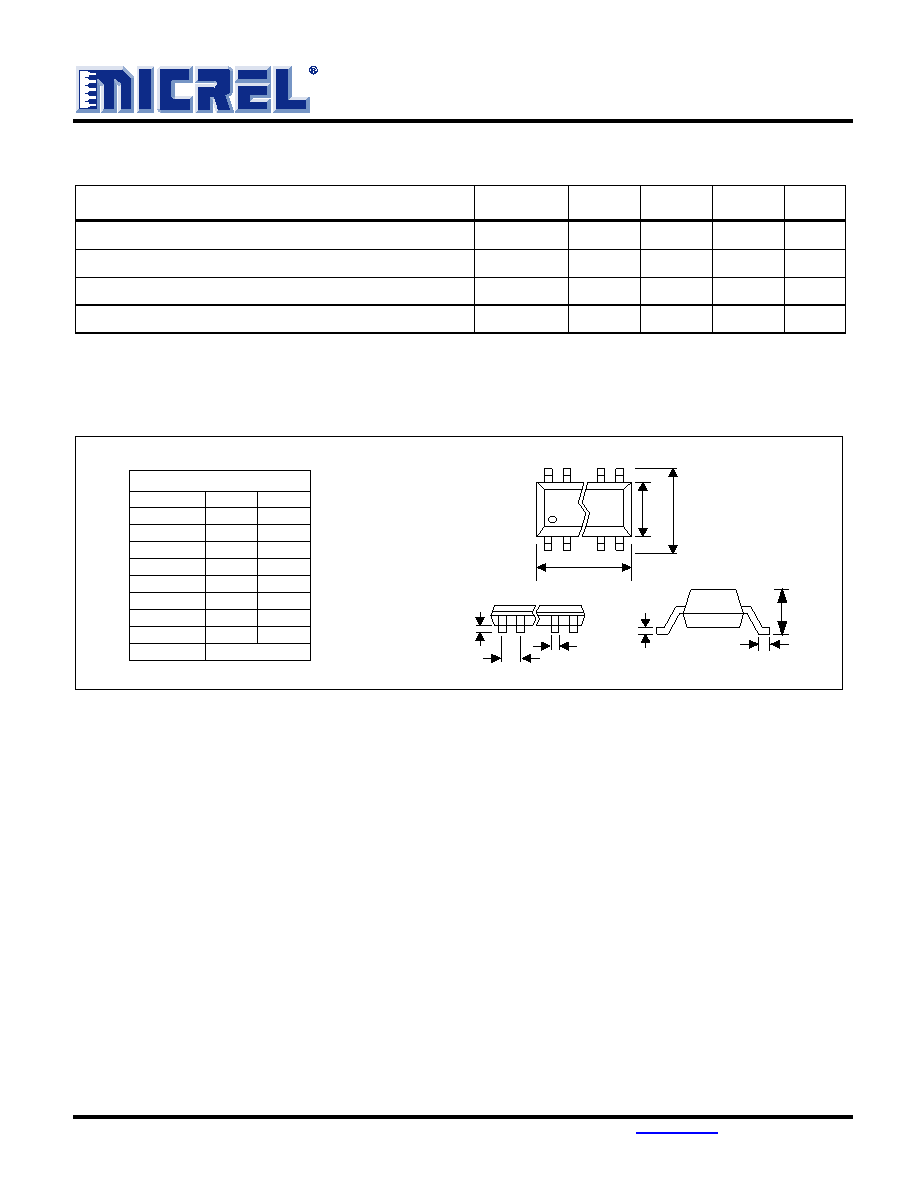

PACKAGE INFORM ATION (GREEN PACKAGE COM PLIANT)

C

L

A

E

H

D

A1

e

B

8 PIN SOP (in mm)

Symbol

Min.

Max.

A

1.47

1.73

A1

0.10

0.25

B

0.33

0.51

C

0.19

0.25

D

4.80

4.95

E

3.80

4.00

H

5.80

6.20

L

0.38

1.27

e

1.27 BSC
