Axial Lead Schottky Diode

Rev. V1

1N5819

2

2

MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

2

Parameter

Absolute Maximum

DC Power Dissipation

1.25 W

Derate power linearity from 1.25 W @ +25°C to 0 W @ +125°C

Average Rectified Forward Current

1 A

Reverse DC Voltage

30 V

Junction Temperature

+125°C

Operating Temperature

-65°C to +125°C

Storage Temperature

-65°C to +150°C

Assembly Temperature

+260°C, t = 10 sec.

1. Exceeding any one or combination of these limits may cause permanent damage to this device.

2. MACOM does not recommend sustained operation near these survivability limits.

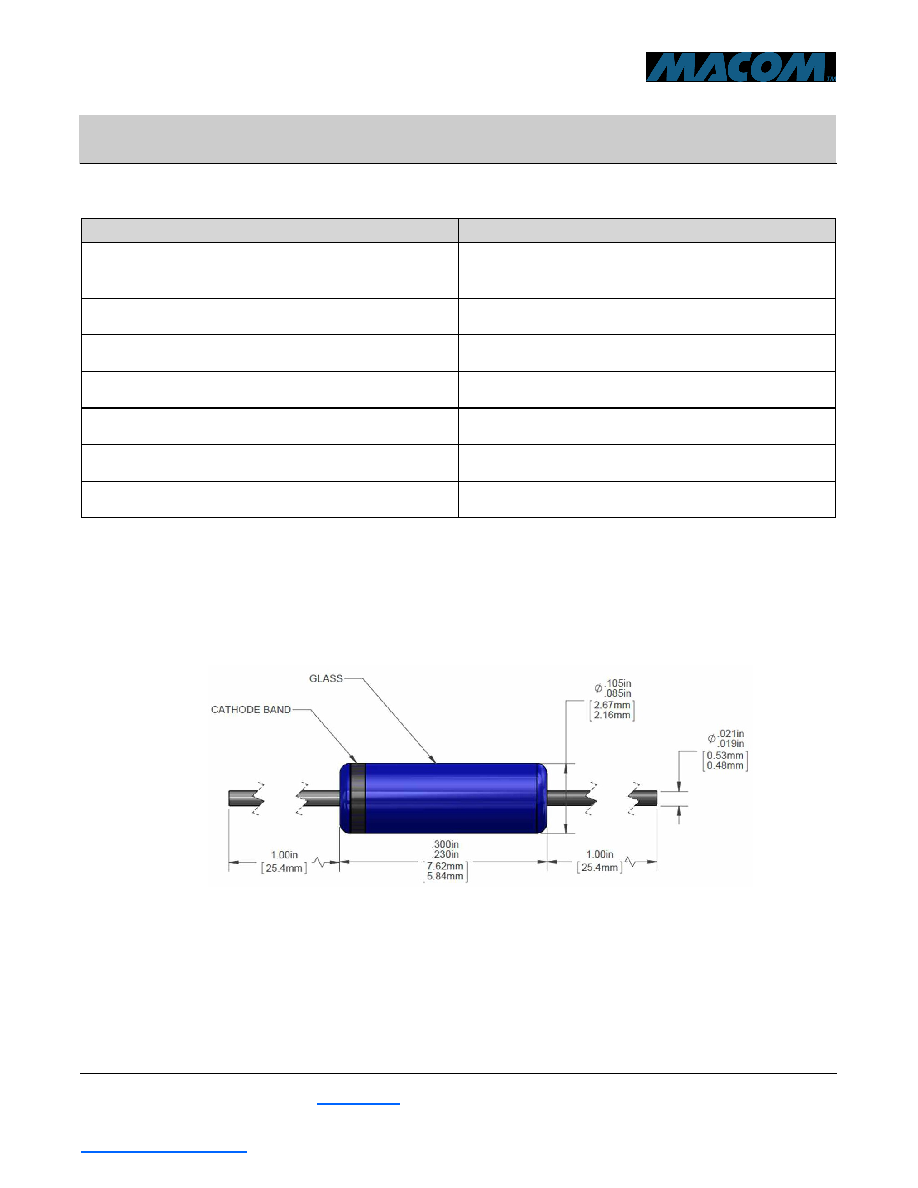

Hermetically Sealed Glass, DO-7

Lead Material: copper clad steel

Lead Finish: tin/lead

Marking: part number and cathode band

Weight: 0.2 grams

Polarity: diode to be operated with the cathode band end negative

Mounting Position: any
