US222
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R129-012.a

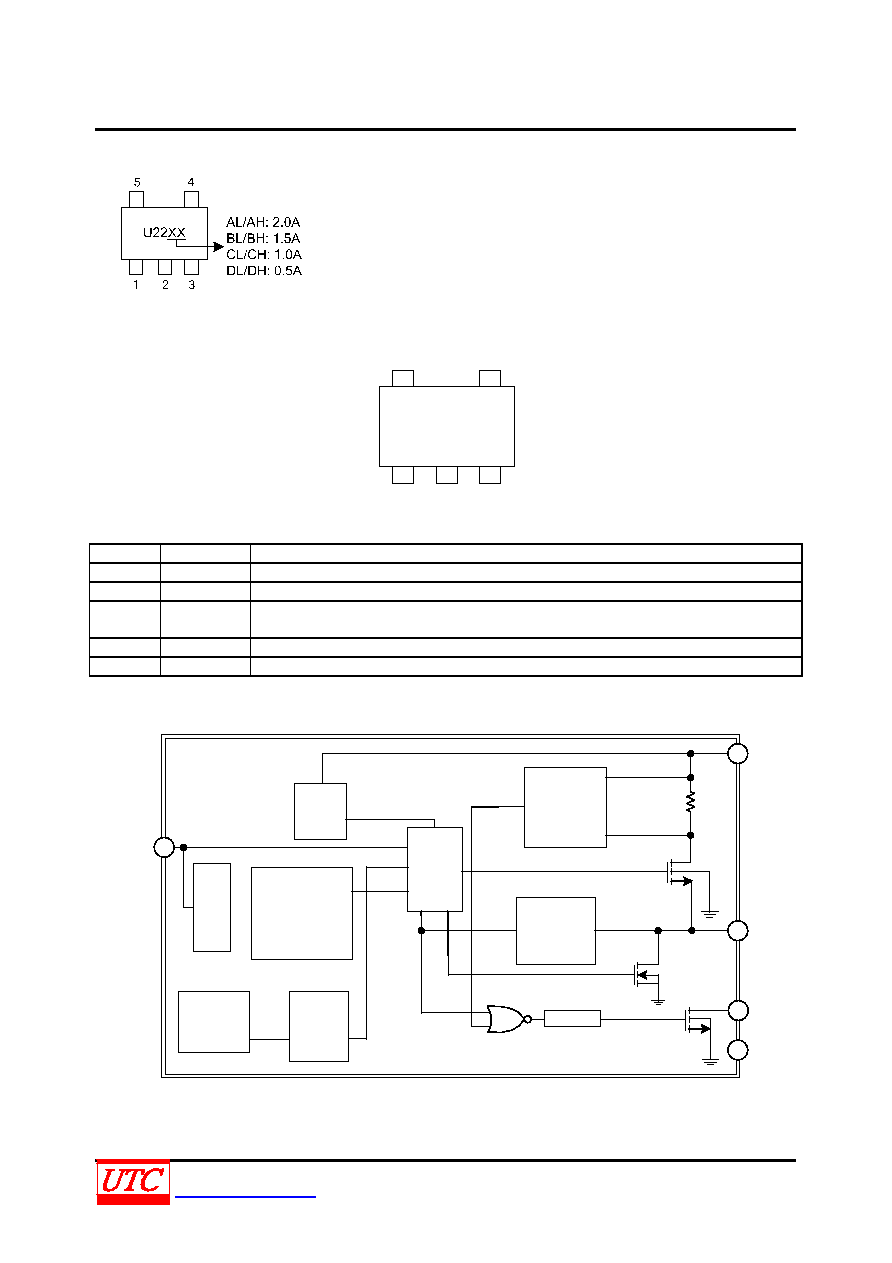

MARKING
PIN CONFIGURATION
3
2
1
4
5
FLAG
GND
VOUT
VIN
EN
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
VOUT
Switch output voltage
2
GND
Ground
3
FLAG
Fault flag pin, output with open drain, need a pull-up resistor in application, active low to
indicate OCP or OTP
4
EN
Chip enable control input, active low or high
5
VIN
Supply input pin
BLOCK DIAGRAM
Bias
UVLO
Charge
Pump
Oscillator
Thermal
Protection
Gate
Control
Current
Limiting
Delay
EN
VIN
VOUT
FLAG
GND
Output
Voltage
Detection
