ADA4077-1/ADA4077-2/ADA4077-4

Data Sheet

Rev. D | Page 16 of 25

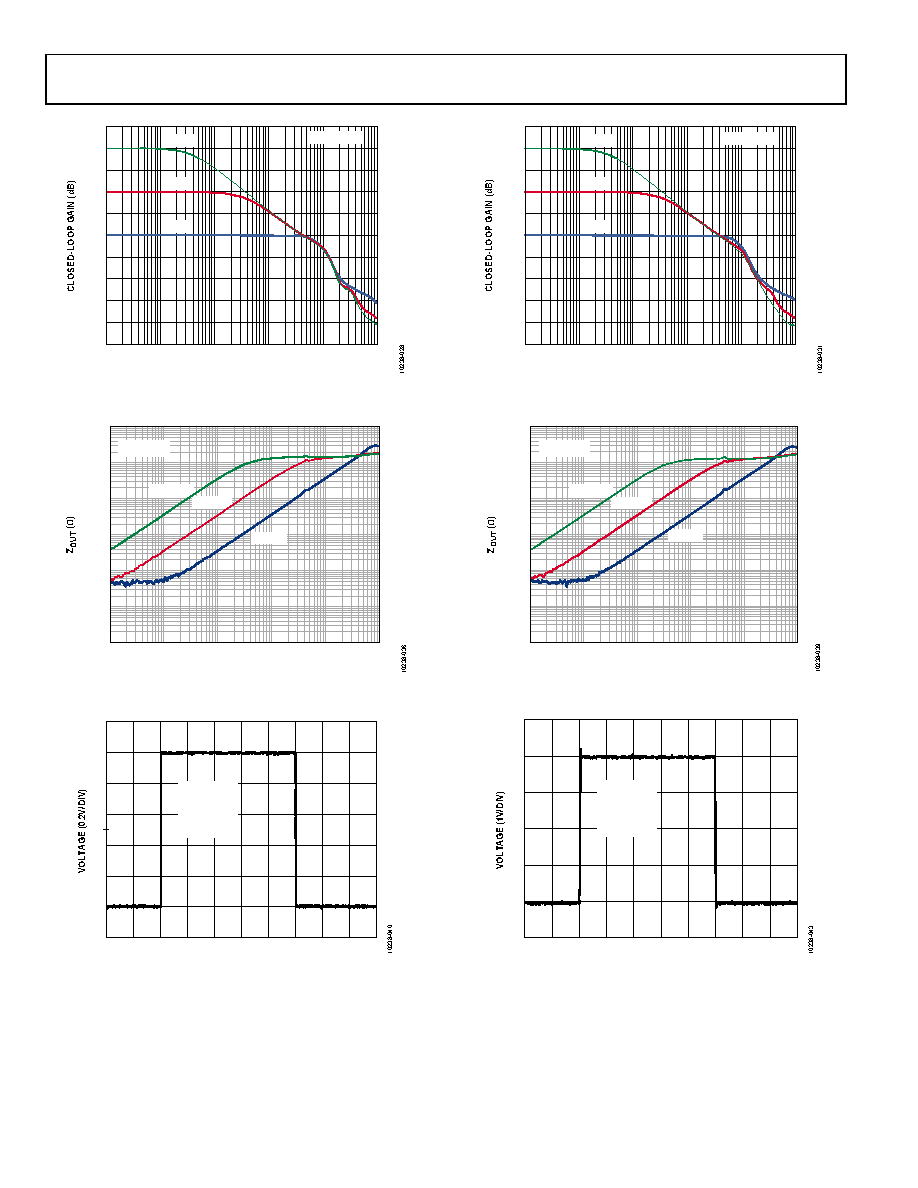

Figure 41. Closed-Loop Gain vs. Frequency, VSY = ±5 V

Figure 42. Output Impedance (ZOUT) vs. Frequency, VSY = ±5 V

Figure 43. Large Signal Transient Response, VSY = ±5 V

Figure 44. Closed-Loop Gain vs. Frequency, VSY = ±15 V

Figure 45. Output Impedance (ZOUT) vs. Frequency, VSY = ±15 V

Figure 46. Large Signal Transient Response, VSY = ±15 V

–50

10k

100k

100M

10M

FREQUENCY (Hz)

–40

–30

–20

–10

G = 1

G = 10

G = 100

VSY = ±5V

0.001

0.01

0.1

100

10k

100k

10M

FREQUENCY (Hz)

AV = +100

VSY = ±5V

AV = +10

AV = +1

TIME (100µs/DIV)

VSY = ±5V

VIN = 1V p-p

AV = +1

RL = 2kΩ

CL = 300pF

–50

10k

100k

100M

10M

FREQUENCY (Hz)

–40

–30

–20

–10

G = 1

G = 10

G = 100

VSY = ±15V

0.001

0.01

0.1

100

10k

100k

10M

FREQUENCY (Hz)

AV = +100

VSY = ±15V

AV = +10

AV = +1

TIME (100µs/DIV)

VSY = ±15V

VIN = 4V p-p

AV = +1

RL = 2kΩ

CL = 300pF
