P9235A-R Datasheet
© 2016 Integrated Device Technology, Inc
5
May 17, 2016

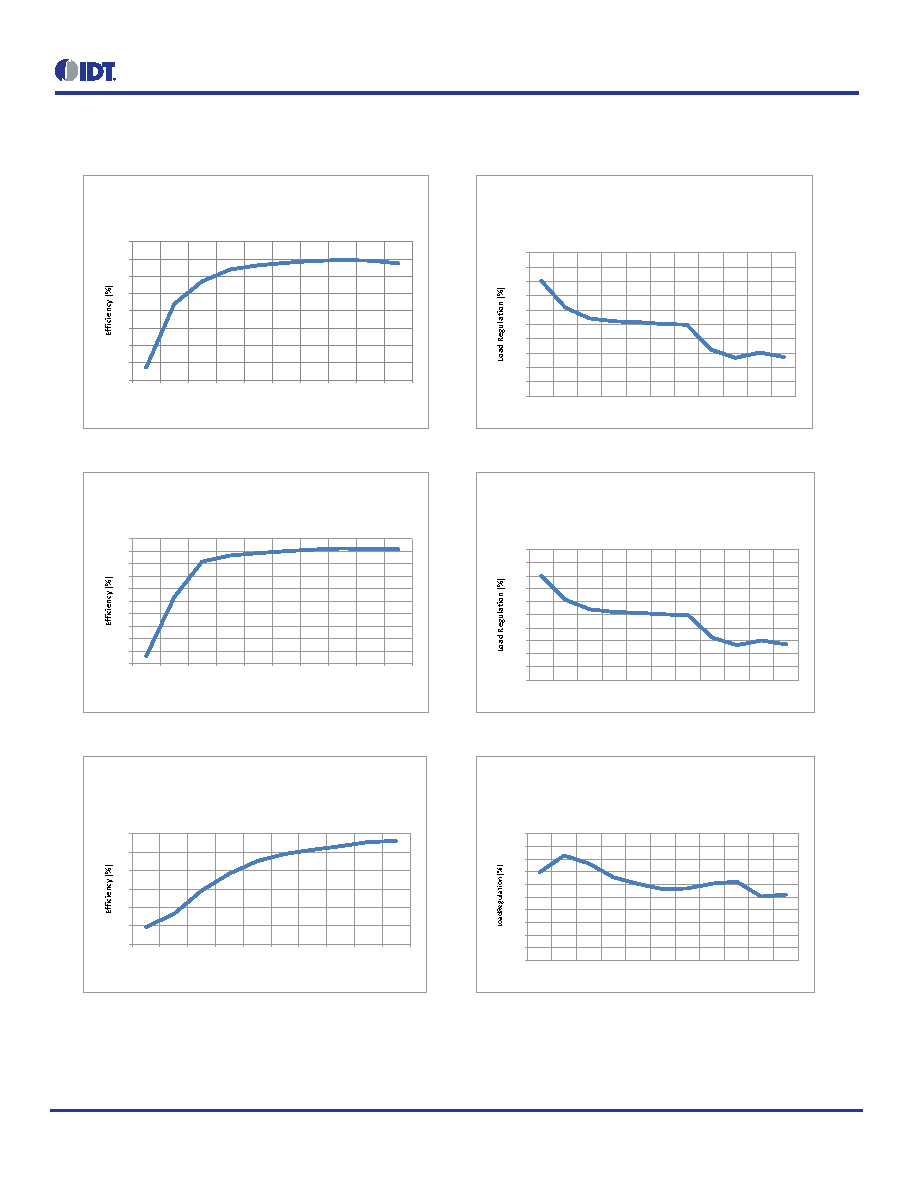

Typical Performance Characteristics
Figure 2. Typical Performance Characteristics – 3W
Figure 3. Typical Performance Characteristics – 2W
Figure 4. Typical Performance Characteristics – 1W
45
50
55
60
65
70
75
80
85
60
120
180
240
300
360
420
480
540
600
Iout (mA)
Efficiency vs Current - 3W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=760308101103, Gap=1.5mm,
Rx coil=760308102213, Rx=P9027LP-R, No air flow, Room temperature
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0
40
80
120
160
200
240
280
320
360
400
Iout (mA)
Load Regulation vs Current - 3W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=760308101104, Gap=1.5mm,
Rx coil=760308101220, Rx=P9027LP-R, No air flow, Room
temperature
25
30
35
40
45
50
55
60
65
70
75
40
80
120
160
200
240
280
320
360
400
Iout (mA)
Efficiency vs Current - 2W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=760308101104, Gap=1.5mm,
Rx coil=760308101220, Rx=P9027LP-R, No air flow, Room temperature
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0
40
80
120
160
200
240
280
320
360
400
Iout (mA)
Load Regulation vs Current - 2W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=760308101104, Gap=1.5mm,
Rx coil=760308101220, Rx=P9027LP-R, No air flow, Room
temperature
0
10
20
30
40
50
60
20
40
60
80
100
120
140
160
180
200
Iout (mA)
Efficiency vs Current - 1W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=WT151512-21F2, Gap=1.5mm,
Rx coil=WR121220-27M8, Rx=P9027LP-R, No air flow, Room
temperature
-0.5
-0.4
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0.4
0.5
0
20
40
60
80
100
120
140
160
180
200
Iout (mA)
Load Regulation vs Current -1W
Vin=5V, Vout=5V, Tx=P9235A-R, Tx coil=WT151512-21F2,
Gap=1.5mm, Rx coil=WR121220-27M8, Rx=P9027LP-R, No air flow,
Room temperature
