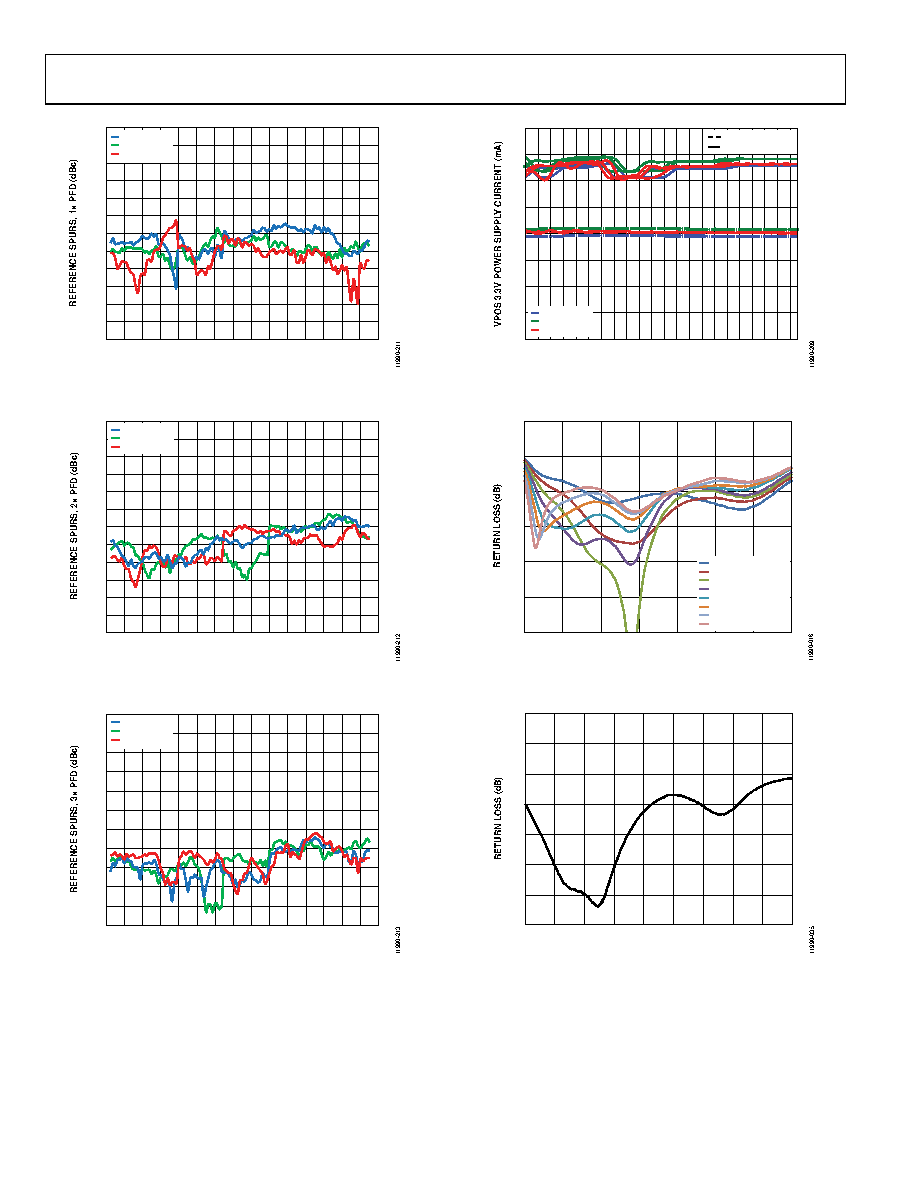

ADRF6820
Data Sheet
Rev. C | Page 12 of 45
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
LO FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 21. 1× PFD Spurs vs. LO Frequency, Measured with
DIV4_EN = 1 (Divide by 2)
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
TA = –40°C
TA = +25°C
TA = +85°C
1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
LO FREQUENCY (GHz)
Figure 22. 2× PFD Spurs vs. LO Frequency, Measured with
DIV4_EN = 1 (Divide by 2)
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
LO FREQUENCY (GHz)
TA = –40°C
TA = +25°C
TA = +85°C
Figure 23. 3× PFD Spurs vs. LO Frequency, Measured with
DIV4_EN = 1 (Divide by 2)
0
50
100
150
200
250
300
350
400
640
1140
1640
2140
2640
LO FREQUENCY (MHz)
EXTERNAL LO
INTERNAL LO
TA = –40°C
TA = +25°C
TA = +85°C
Figure 24. VPOS_3P3 Power Supply Current vs. LO Frequency
–30
–25
–20
–15
–10
–5
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
FREQUENCY (GHz)
CIN = 0, COUT = 0
CIN = 1, COUT = 1
CIN = 2, COUT = 2
CIN = 3, COUT = 3
CIN = 4, COUT = 4
CIN = 5, COUT = 5
CIN = 6, COUT = 6
CIN = 7, COUT = 7
Figure 25. RFIN0/RFIN1 Return Loss for Multiple BAL_CIN and BAL_COUT
Combinations
–35
–30
–25
–20
–15
–10
–5
0
FREQUENCY (GHz)
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
Figure 26. Return Loss of Unused RFINx Port vs. Frequency
